Robe SVOPATT（スヴォパット）

概要

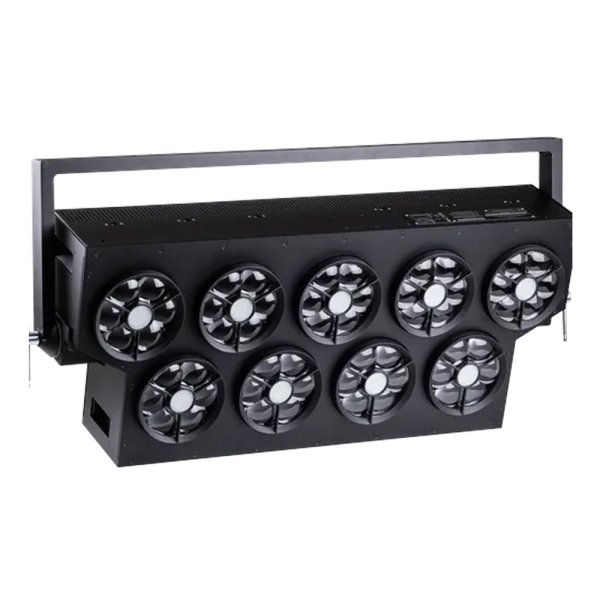

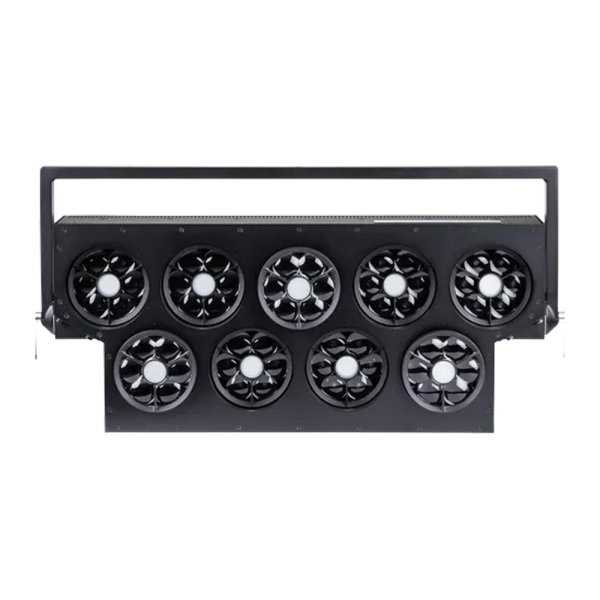

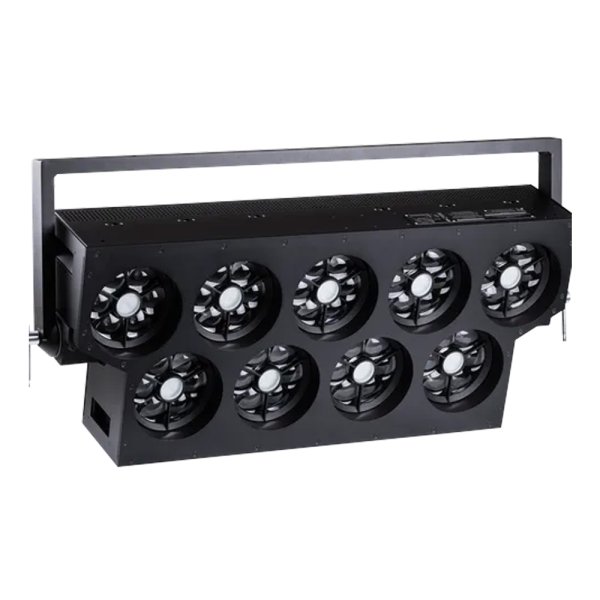

Iconic Luminaires are instantly recognisable in the lighting world. As a proudly Czechia based manufacturer, we pay homage to the past, bringing you a new icon, the SVOPATT™.


Transforming into the modern age, you cannot fail to make an impact with the SVOPATT™ both as a scenic element and a source of captivating effects. With nine individual modules each containing 7 x 40W RGBW multichips and the centre pixel also containing a 200W white LED strobe, the fixture generates over 75.000 lm (integrating sphere). You have a source worthy of its lineage.


Helping to maintain this high level of performance, the RLCT™ lens coating protects against scratches and scuffs while preventing particle adhesion, ensuring your optics stay cleaner for far longer.


With a multitude of modes and protocols, including ArtNet and sACN ensuring easy pixel mapping; a choice of RGB or CMY colour mixing modes; variable CCT range from 1.700K to 20.000K; onboard DataSwatch™ colour library with 66 preset colours, and tungsten lamp emulation, the SVOPATT™ provides a comprehensive colour control set.


Each individual module contains a noise-dampened motorized zoom. With a range of 3.8° - 50° you can create tight beams or wide washes from each individual module.


Designed for noise-sensitive environments, the SVOPATT™ operates at an ultra-quiet 18 dB(A) in quiet mode due to its advanced cooling technology and noise dampening design. Along with Cpulse™ software for on-screen flicker removal and +/- green content control, this luminaire is ideal for studio environments.


Network communication is streamlined with REAP™ (Robe Ethernet Access Portal), while the Epass™ Ethernet pass-through switch maintains connectivity even when the fixture is powered off. To maintain the characteristic look of the original, an external power supply is included.

特徴

■Light source
9 modules - each module containing 7 x 40W RGBW Multichips, middle pixels containing additional 200W white strobe LEDs

■Light output
75.000 lm, 118.000 lx

■Zoom range
3,8° - 50°

■Effects
Pixel control, Motorised exceptionally quiet zoom, Electronic strobe effect, Virtual colour wheel, Tungsten lamp effect, Preprogrammed pixel effects, White strobe effects

仕様

■Source
Light source type:

9 modules - each module contains 7 x 40W RGBW multichips

Middle pixels contain additional 200W white strobe LEDs

LED life expectancy: min. 50.000 hours

Typical lumen maintenance: L70/B50 @ 50.000 hours

■Optical system
Robe’s proprietary optical design

High-efficiency zoom optical system, ratio 13:1

Zoom range: 3.8° - 50°

Fixture total lumen output:

75.000 lm (integrating sphere)

58.500 lm (goniophotometer)

Illuminance: 118.000 lx @ 5 m

RLCT™ Innovative lens coating technology

■Dynamic Effects and Features
Colour mixing mode RGBW or CMY

+ - Green correction function

Individual control of each RGBW pixel

9 individually controllable Strobe LED zones

White light: Variable CCT 1.700K - 20.000K

DataSwatch™ filters: pre-programmed 66 colours and tones including most used whites 2.700K, 3.200K, 4.200K, 5.600K and 8.000K

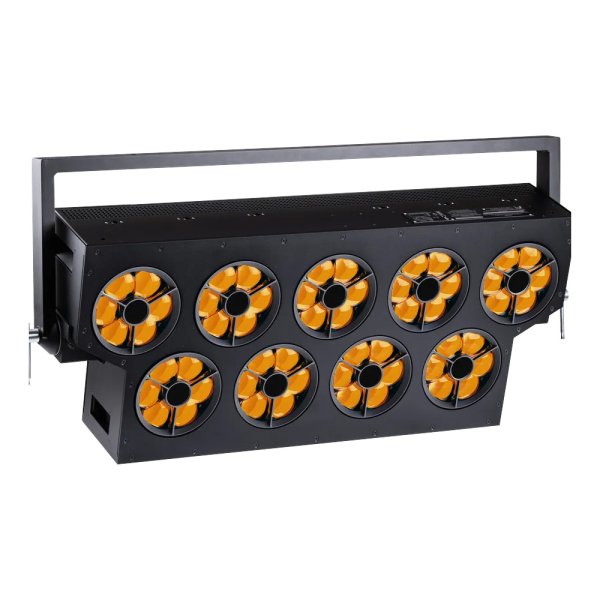

Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4200K (red shift and thermal delay)

Motorised exceptionally quiet zoom

High resolution electronic dimming: 0 - 100%

Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects

L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K

■Control and programming
Setting & Addressing: ROBE Navigation System 3 (RNS3)

Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding

Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN

REAP™ - Robe Ethernet Access Portal

Wireless CRMX™ technology from Lumen Radio

Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity

DMX Protocol modes: 4

Control channels: 21, 124, 286, 384

RGBW / CMY: 8 or 16 bit

Zoom: 8 or 16 bit

Dimmer: 8 or 16 bit (internal 18 bit)

■Movement
Pan movement: Manual

Tilt movement: Manual

■Thermal specification
Maximum ambient temperature: 45°C

Maximum surface temperature: 80°C

Minimum operating temperature: -5°C

Maximum SVOPATT™ Driver surface temperature: 50°C

■Noise Levels
Sound pressure level:

18 dB(A) at 1 m (quiet mode)

34 dB(A) at 1 m (auto mode)

Sound power level:

26 dB(A) (quiet mode)

42 dB(A) (auto mode)

■Electrical specification and connections
SVOPATT™ Driver

Power supply: Electronic auto-ranging

Input voltage range: 200-240 V, 50/60 Hz

Power consumption: Max. 2400 W

Power connector in: Neutrik powerCON TRUE1

DMX and RDM data in/out: Locking 5-pin XLR connectors

Ethernet port in/out: RJ45, for Embedded Epass™ switch 10/100 Mbps

Power connector out: Amphenol connector

SVOPATT™

DMX and RDM data in: Locking 5-pin XLR connector

Power connector in: Amphenol connector

■Approvals
CE Compliant

cETLus Compliant

■Rigging
SVOPATT

2x Omega bracket (top and bottom)

2x Safety cable attachment point

Can be merged to a wall of light

SVOPATT™ Driver

1x Omega bracket

1x Safety attachment point
Ingress protection rating: IP20

■Included items
User Manual

Omega Adaptor CL-regular 2 pcs

Power cord including powerCON TRUE1 In connector

Jumper Cable: 2m

サイズ

Mechanical specification
SVOPATT™

Height:

435 mm - without yoke

545 mm - with yoke

Width:

1005 mm - without yoke

1162 mm - with yoke

Depth: 216 mm

Weight: 37.3 kg

SVOPATT™ Driver: 6.5 kg
