Robe SVB1

Are you in search of a small, lightweight, high-impact lighting fixture that gives you an edge over the competition? Look no further! Introducing the eye-catching SVB1™ effect, beam, and wash luminaire!

概要

This versatile, compact powerhouse, built on the heritage of its SVOPATT™ lineage, delivers high- output and extreme speed with continuous pan and tilt rotation, ensuring a captivating performance for your audience.

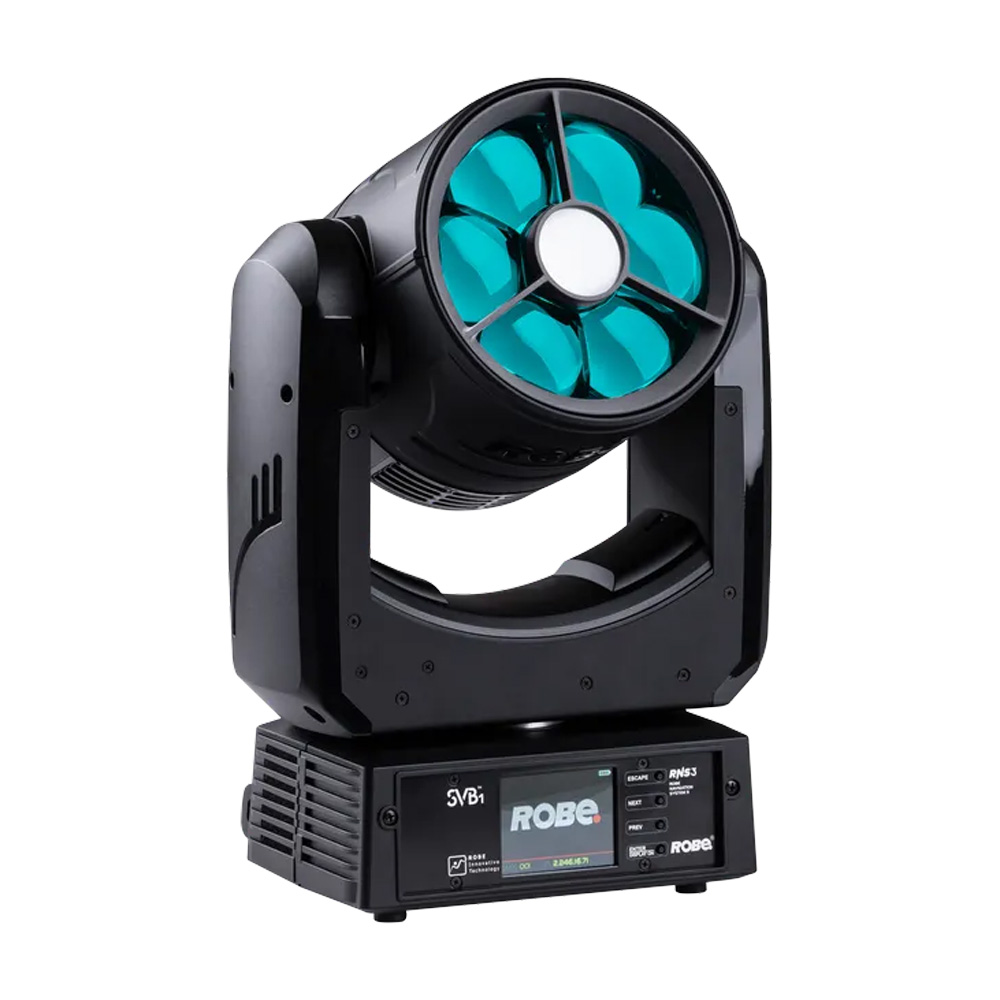

Equipped with seven individual 40W RGBW LED cells and a central pixel featuring both RGBW and a powerful 200W white strobe LED module, the SVB1™ offers full pixel mapping capabilities for unlimited creative looks and effects, boasting an impressive 11.000 lm output.


Helping to maintain this high level of performance, the RLCT™ lens coating protects against scratches and scuffs while preventing particle adhesion, ensuring your optics stay cleaner for far longer.


The SVB1™ stands out with its motorized zoom range, offering precise 3.8° beams to expansive 50° washes, all while operating with remarkable quietness. Its rapid speed and wide coverage are further enhanced by the fixture's 360° continuous pan and rotation capabilities, making it an impressive choice for any lighting setup.


With a choice of RGB or CMY colour mixing modes, a variable CCT range from 1,700K to 20,000K, an onboard DataSwatch™ colour library with 66 preset colours, and tungsten lamp emulation, the SVB1™ provides a comprehensive colour control set.


Designed for noise-sensitive environments, the SVB1™ operates at an ultra-quiet 18 dB(A) in quiet mode due to its advanced cooling technology and noise dampening design. Along with Cpulse™ software for on-screen flicker removal and +/- green content control, this luminaire is ideal for studio environments.


A multitude of modes and protocols, including ArtNet and sACN, ensures easy pixel mapping. Network communication is streamlined with REAP™ (Robe Ethernet Access Portal), while the Epass™ Ethernet pass-through switch maintains connectivity even when the fixture is powered off.

Weighing just 7.2 kg, the compact and feature-packed SVB1™ offers exceptional speed, accuracy and punch, making it the perfect enhancement for any performance!

特徴

Light source
1 module - containing 7 x 40W RGBW multichips, middle pixel containing additional 200W white strobe LEDs

Light output
11.000 lm, 17.500 lx

Zoom range
3,8° - 50°

Effects
Pixel control, Motorised exceptionally quiet zoom, Electronic strobe effect, Virtual colour wheel, Tungsten lamp effect, Preprogrammed pixel effects, Continuous pan and tilt movement, ScreenPix, White strobe effects

仕様

Source
Light source type:

1 module - containing 7 x 40W RGBW multichips

middle pixel containing additional white strobe LEDs

LED life expectancy: min. 50.000 hours

Typical lumen maintenance: L70/B50 @ 50.000 hours

Optical system
Robe’s proprietary optical design

High-efficiency zoom optical system, ratio 13:1

Zoom range: 3.8° - 50°

Diffusion filter imbedded

Fixture total lumen output:

11.000 lm (integrating sphere)

8.600 lm (goniophotometer)

Illuminance: 17.500 lx @ 5 m

RLCT™ Innovative lens coating technology

Dynamic Effects and Features
Colour mixing mode RGBW or CMY

+ - Green correction function

Individually controllable Strobe LED zone

White light: Variable CCT 1.700K - 20.000K

DataSwatch™ filters: pre-programmed 66 colours and tones including most used whites 2.700K, 3.200K, 4.200K, 5.600K and 8.000K

Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4200K (red shift and thermal delay)

Motorised exceptionally quiet zoom

High resolution electronic dimming: 0 - 100%

Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects

L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K

Control and programming
Setting & Addressing: ROBE Navigation System 3 (RNS3)

Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding, NFC app controller

Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN

REAP™ - Robe Ethernet Access Portal

Wireless CRMX™ technology from Lumen Radio - On request

Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity - On request

DMX Protocol modes: 3

Control channels: 28, 61, 58

RGBW / CMY: 8 or 16 bit

Pan & Tilt resolution: 8 or 16 bit

Zoom: 8 or 16 bit

Dimmer: 8 or 16 bit (internal 18 bit)

Movement
Automatic Pan & Tilt position correction

Pan movement range 540° with continuous rotation control

Movement control: Standard and Speed

Tilt movement range 360° with continuous rotation control

Controllable speed of Pan & Tilt movement

Thermal specification
Maximum ambient temperature: 45°C

Maximum surface temperature: 70°C

Minimum operating temperature: -5°C

Noise Levels
Sound pressure level:

18 dB(A) at 1 m (quiet mode)

34 dB(A) at 1 m (auto mode)

Sound power level:

26 dB(A) (quiet mode)

42 dB(A) (auto mode)

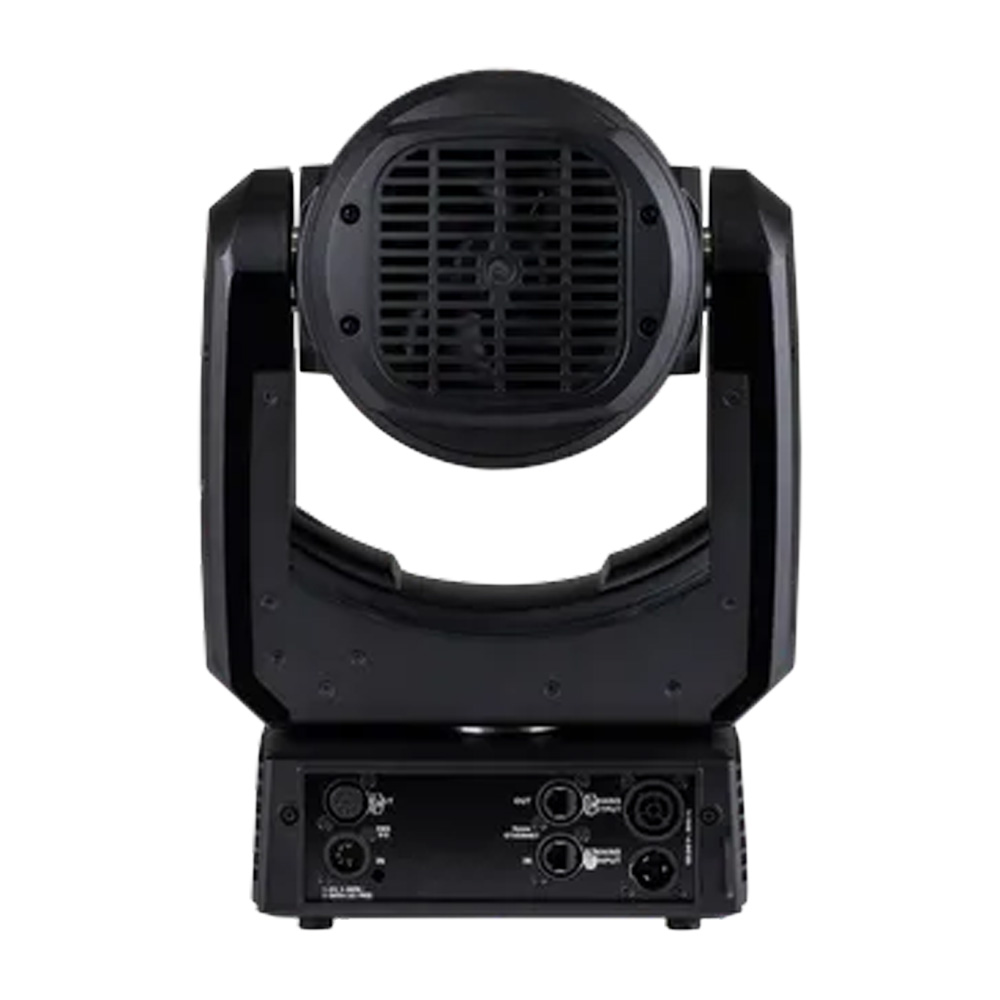

Electrical specification and connections
Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: Max. 330 W

Power connector in/out: Neutrik powerCON TRUE1

DMX and RDM data in/out: Locking 5-pin XLR connectors

Ethernet port in/out: RJ45, for Embedded Epass™ switch 10/100 Mbps - On request
Ingress protection rating: IP20

Approvals
CE Compliant

cETLus Compliant

Rigging
Universal operating position

Safety cable attachment point

Included items
User Manual

Omega Adaptor CL-regular

サイズ

Height: 398 mm - head in vertical position

Width: 281 mm

Depth: 186 mm - head in vertical position

Weight: 7.2 kg

参照

■メーカーサイト
https://www.robe.cz/svb1
