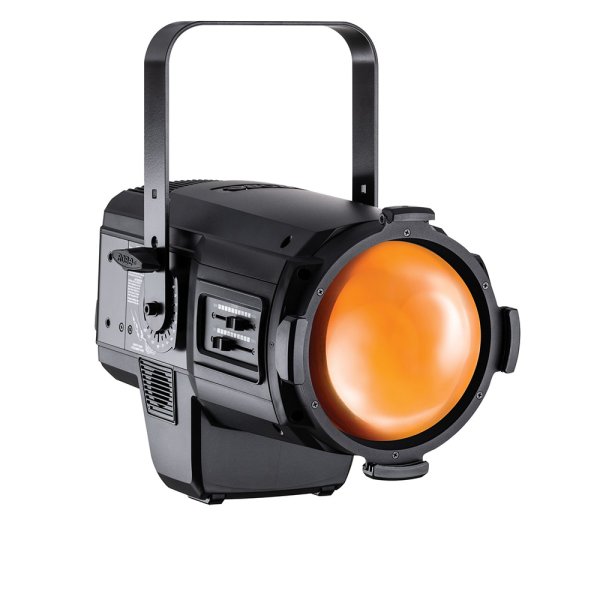

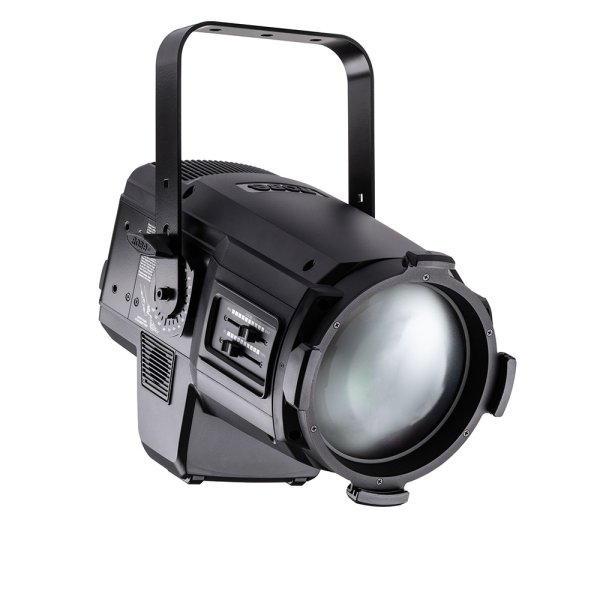

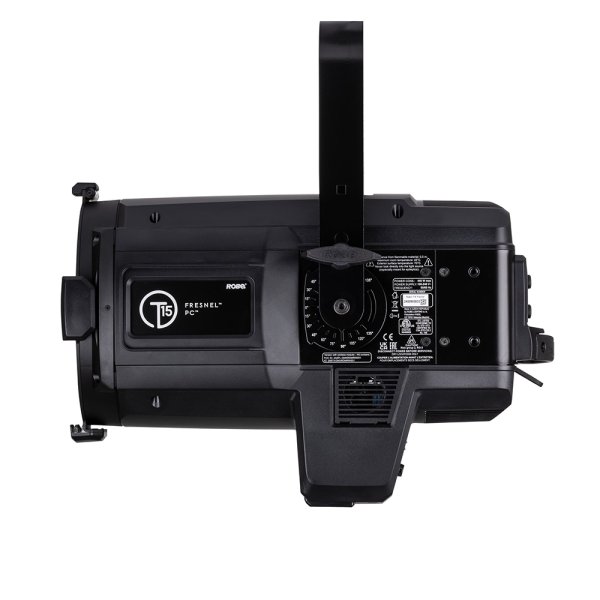

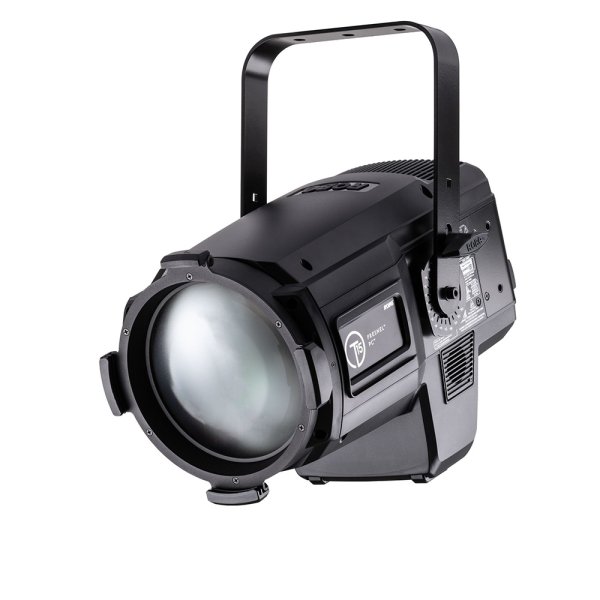

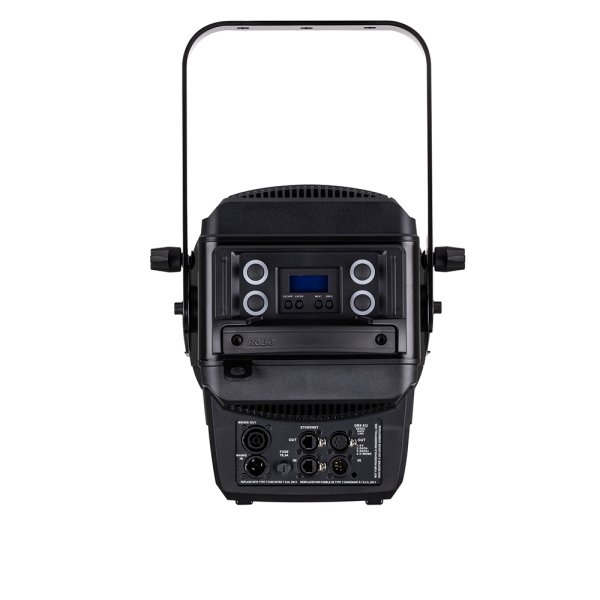

Robe T15 PC

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

Catering to the needs of broadcast, film, and theatrical professionals who seek compact yet powerful manual wash luminaires, the T15 Fresnel™ and T15 PC™ emerge as an indispensable addition to the acclaimed Robe T Series.

概要

Tailored for smaller television studios and performance spaces, the T15 fixtures uphold the esteemed standards of T-Series MSL™ Multi-spectral light quality.

Powered by the internally designed, developed, and manufactured MSL-TE™ 350W LED TRANSFERABLE ENGINE, they boast a remarkable output of 11.960 lumens (integrating sphere) through their 200mm front lenses. This innovative LED technology not only ensures identical colour characteristics, responses, and control as other T Series luminaires but also guarantees absolute colour consistency across your entire Robe lighting setup.

The innovative TRANSFERABLE ENGINES empower users to maintain light quality in a cost-effective manner through effortless engine changes, without the need for specialized tools. Furthermore, they ease cost-effective adoption to the latest LED advancements as they become available, significantly extending the fixture's lifespan and maximizing return on investment.

The T15 Fresnel™ and T15 PC™ effortlessly deliver a classic soft Fresnel or more defined PC wash beams, complemented by a motorized 7.2:1 ratio
10 - 72° zoom range. Leveraging the latest ZoomStat™ motorized zoom system, all optical elements stay enclosed within the fixture, ensuring the front
lens remains fixed and shielded from particle ingestion and visual movement distraction
With colour control via CMY, RGB or individual RGBAL emitter control, the fixture offers a virtually controlled CCT range from 2,700K to 8,000K,
calibrated whites, and tungsten emulation, the T15 Fresnel™ and T15 PC™ provide precise control over all lighting scenarios. Exceptional rendering of
skin tones is ensured through the luminaire's high TLCI and TM30-18 ratings, along with an outstanding virtual CRI control from 80 to 95.
In combination with our renowned L3™ Low Light Linearity 18-bit dimming software for imperceptible fades, we offer a choice of three different dimmer
curves to suit your needs.
Designed for both network control or stand alone operation, the luminaire features two backlit faders for direct zoom and intensity control.
Designed for operation in noise-sensitive environments, the T15 Fresnel™ and T15 PC™ come equipped with a comprehensive suite of fan settings to
cater to even the most discerning users. The incorporation of AirLOC™ (Less Optical Cleaning) technology minimizes airflow over the optical elements,
resulting in reduced residue deposits and remarkably quiet operation.
To remotely lock the zoom firmly in place through unlimited power cycles, the BARS™ (Brake Attribute Retention System) can be applied directly from
your console.
To guarantee full acceptance in TV studios, or on-location sets, the T15 luminaires feature Cpulse™ flicker-free software and a dedicated plus and
minus green channel control. Additionally, the rapid-change front lens system enables swift transformation into a Fresnel fixture, offering wash luminaire flexibility without the need for separate generic purchases.
A full range of accessories is available, including four and eight leaf barndoors and a pole op kit.
T15 Fresnel™ and T15 PC™ – Perform with confidence.

特徴

Light source
MSL-TE™ 350W LED Engine (Patented)
Light output
11.960 lm
Zoom range
10°- 72°
Effects
Virtual colour wheel, tungsten lamp effect, motorized Zoom

仕様

■Source
Light source type: MSL-TE™ 350W LED Engine (Patented)
LED Engine output: 16.700 lm
LED life expectancy: min. 40.000 hours
Colour rendition: CRI: 95, CRI R9: 96, TM30-18 Rf: 92, TM30-18 Rg: 106, TLCI: 91
Typical lumen maintenance: L70/B50 @ 40.000 hours
Light source warranty: 4 years or 20.000 hours

■Optical system
Robe’s proprietary optical design
Profile zoom lens system
High-efficiency zoom optical system, ratio 7.2:1
Zoom range: 10° - 72°
Fixture total lumen output:
11.960 lm (integrating sphere)
9.566 lm (goniophotometer)
Output lens diameter: 200 mm
Optional PC and Fresnel zoom lens systems

■Main features
Colour mixing: CMY/RGB or RGBAL
White light: Variable CCT 2.700K - 8.000K
DataSwatch™ filters: pre-programmed 237 colours and tones including most used whites 2.700K, 3.200K, 4.200K, 5.600K
Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4200K (red shift and thermal delay)
+ - Green correction function
Adjustable CRI: from 80 to 95+
Motorised zoom
Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects
High resolution electronic dimming: 0 - 100%
L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black
Dimmer profile selection: Linear, Square law, Super Square law
Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K
Extremely quiet operation suitable for all types of production in Theatre and TV
AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the optical elements. This increases the overall performance, light quality and time between routine cleaning and maintenance.
BARS™ - Brake Attribute Retention System (Patented) applied for Zoom stepper motors
ZoomStat™ – Patented zoom system that incorporates a stationary front Fresnel or PC lens, boasting an impressively wide beam angle exceeding 70°

■Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: two-row LCD display & 4 control buttons
Protocols:
USITT DMX-512, RDM
ArtNet, MA Net, MA Net2, sACN
REAP™ - Robe Ethernet Access Portal
Wireless CRMX™ technology from Lumen Radio - on request
Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity - on request
DMX Protocol modes: 6
Control channels: 20, 10, 24, 7, 2, 1
Variable CCT: 8 bit
+ - Green correction: 8 bit
Colour mixing: 8 or 16 bit (internal 18 bit)
Dimmer: 8 or 16 bit (internal 18 bit)

■Thermal specification
Maximum ambient temperature: 45 °C (113 °F)
Maximum surface temperature: 90 °C (194 °F)
Minimum operating temperature: -5 °C (23 °F)
Total heat dissipation: max. 1125 BTU/h (calculated)

■Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: Max. 420 W
Power connector in/out: Neutrik powerCON TRUE1 in/out
DMX and RDM data in/out: Locking 5-pin XLR
Ethernet port in: RJ45
Ethernet port in/out: RJ45 for Embedded Epass™ switch 10/100 Mbps - on request

■Approvals
CE Compliant
cETLus Compliant

■Rigging
Mounting horizontally or vertically via mounting yoke
Mounting points: M12 bolt
Safety cable attachment point

■Included items
User Manual
Gel frame adaptor
