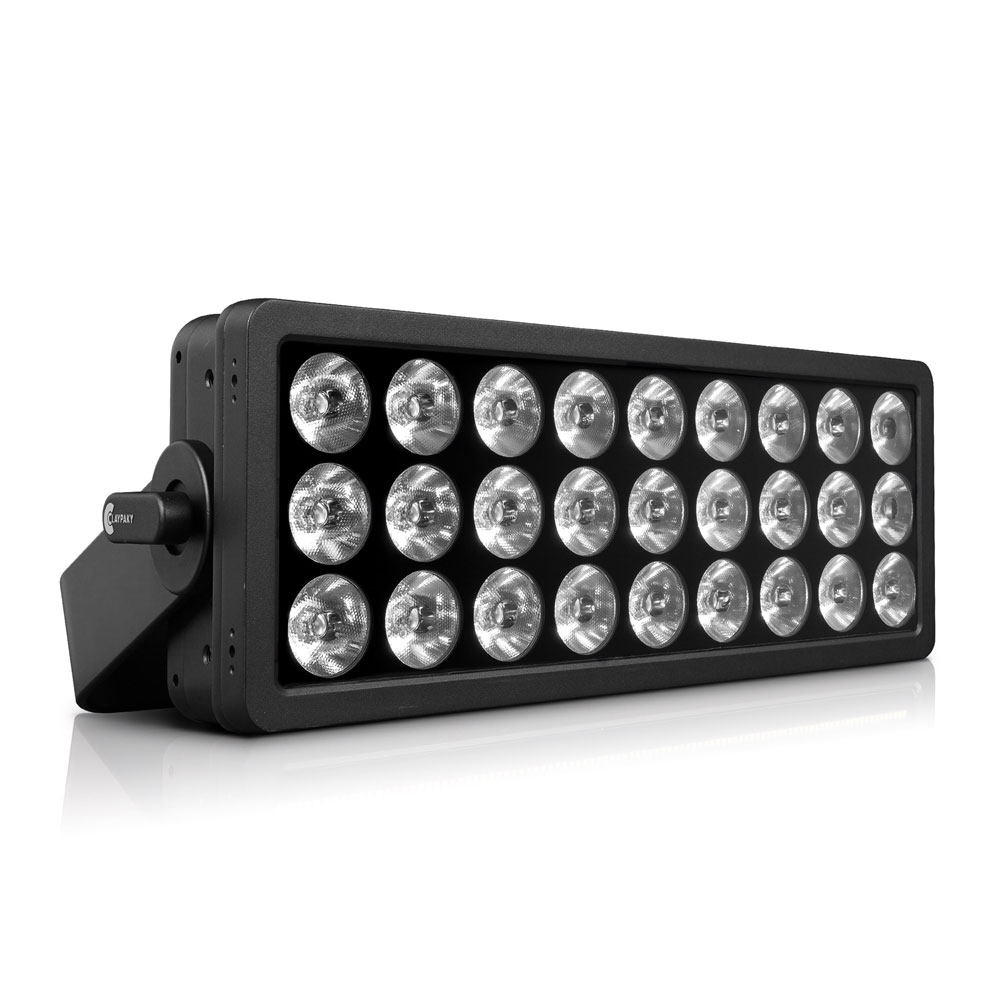

Clay Paky Tambora Rays（タンボラレイズ） [CL2025]

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

Volumetric effects are taken to the extreme!

Tambora Rays redefines what’s possible in lighting design. As the latest addition to the Tambora family, Tambora Rays combines innovation, light output, and creativity. It features 9×3 rows of high-power RGBWW LEDs with pixel-to-pixel control, allowing you to manage 27 individual LEDs for stunning lighting effects.

Versatile and Easy to Use
This compact powerhouse can be used in grids, stage borders, vertical or horizontal arrays, or flying bars. Its design is compatible with Tambora Flash and Stormy, enabling creative combinations for impressive visual effects.

Dynamic Control
With Advanced Layer Management, multiple effects are created simultaneously. Mix and match three effects’ layers, seamlessly switching between background colors, macro sequences, and external video content for dynamic and engaging shows.

Dramatic Visual Impact
Tambora Rays’ high output and long-throw focused narrow beam create dramatic aerial effects, for highlighting key moments. The 7° narrow beam angle can be modified with optional accessories like frost filters and barndoors for precise control.

Superior Performance and Reliability
The state-of-the-art optical design ensures superior performance, precision, and exceptional color quality. Built to last, Tambora Rays is part of the IP66-rated Shield family, making it waterproof, dustproof, and maintenance-free for indoor and outdoor use.

Built to last
Energy-efficient and easy to maintain, Tambora Rays significantly reduces operating costs. Ideal for TV studios, tours, and theatrical environments, its sleek design and advanced pixel mapping capabilities add a distinctive flair to your setups.

Tambora Rays offers exceptional event lighting for both indoor and outdoor applications. Delivering professional performance, outstanding reliability, and great value, it truly shines.

Light Source
27x 40W RBGWW LEDs
Light Output
up to 19,000 lm
Zoom range
7° beam aperture
Effects
Advanced Layer Management; Electronic dimmer; Electronic strobe @30 f/sec; Single Pixel mapping and strobe split into 27 different segments.

LIGHT SOURCE:
Source type: 27 LEDs RGBWW x 40W
Power: 815 W
Color temp.: 3103 K
CRI: Up to 77
LED life expectancy: 50.000 Hrs L70*
* It may vary depending on various factors, such as the type of use and environment
PHOTOMETRIC DATA:
Aperture: 7°
Lm output: 19000 Lm (integrating sphere)
CONTROL & CONNECTIONS:
Protocols: DMX, Art-Net, sACN, RDM, Webserver
Connectors: Locking 5 pin XLR IN/OUT, RJ45 IN/OUT
Power con.: PowerCon True1 IN/OUT
Web server: Built-in
CloudIO: Fully compatible
DYNAMIC EFFECTS:
Colors: Advanced layers management (color, internal shape, pixel mapping (3 x 9)); individual control of 27
LEDs; pre-programmed shape selection of static and dynamic patterns
Strobe: Electronic strobe from 1 to 30 f/sec
Dimmer/Shutter: High speed electronic dimmer – 16 Bit; High speed electronic shutter and strobe
HARDWARE & SOFTWARE:
Display graphic LCD blacklit B/W display; firmware upload from another fixture, firmware upgrade
via Web Server; diagnostic; DMX monitoring; remote access through RDM
HOUSING:
Magnesium housing; one handle for transportation; IP66 protection rate; working in any position;
hanging system with fast-lock Omega clamps (1/4) on the base
ELECTRICAL:
Operating voltage: 100 – 120 / 200 – 240 V, 50 / 60 Hz
MAX power
consumption: 850 W

THERMAL SPECIFICATIONS:
MAX ambient
temperature: 45 °C
Min ambient
temperature: -20 °C
WEIGHT & SIZES:
Weight: 10,3 Kg
Dim.s without
handle: 497 x 180 x 186 mm
Dim.s with handle: 537 x 180 x 244 mm
