Portman EVO ELEMENT（エボエレメント）

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

super modular stage fixture, fully compatible with the P2 EVO – Portman's bestseller. This eye-candy blinder offers full halogen source emulation along with RGBW glow for each pixel. Combine them freely, build stunning structures, and amaze your audience.

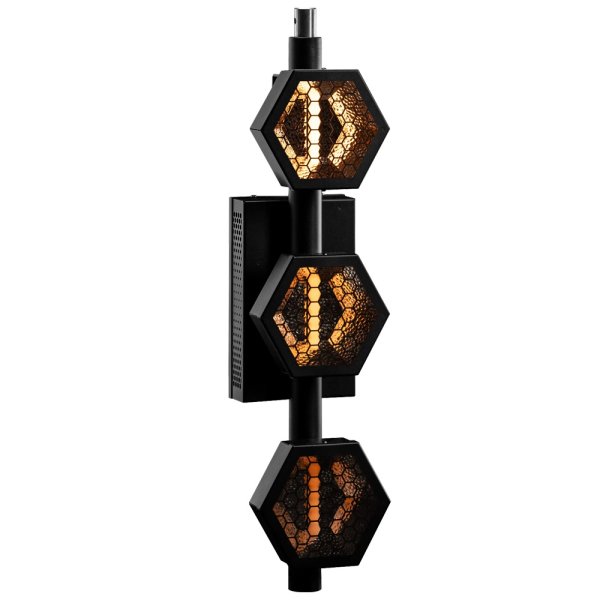

TRUE TUNGSTEN EMULATION
3×60W Portman haloLED powerful light sources with full halogen emulation.

Experience seamless transitions from warm, low-intensity glows to cooler, blinding effects—each light source equaling a 300W halogen lamp. Customize your light show by selecting different dimming curves or strobe mode.

You’ll be amazed at how closely our haloLED replicates real halogen light.

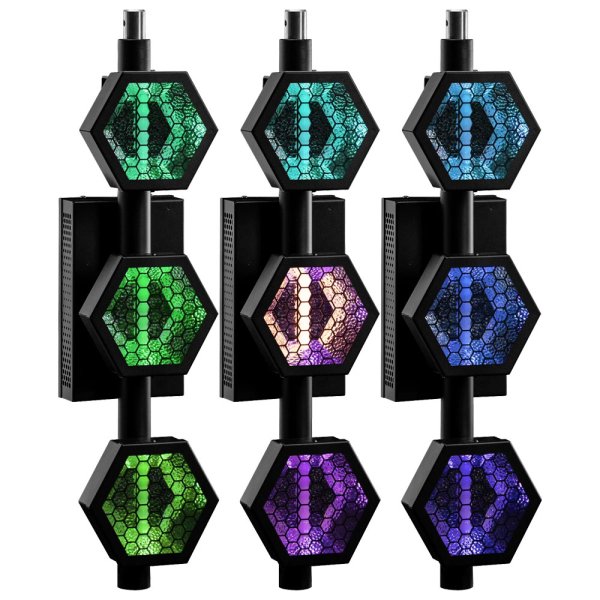

RGBW for Enhanced Ambiance
3×12W RGBW Glow

Operating at 16-bit, they deliver ultra-smooth colour mixing with rich, saturated tones. This feature allow you to elevate the mood or transform the character of the fixture and the entire event.

Compatible with P2 EVO

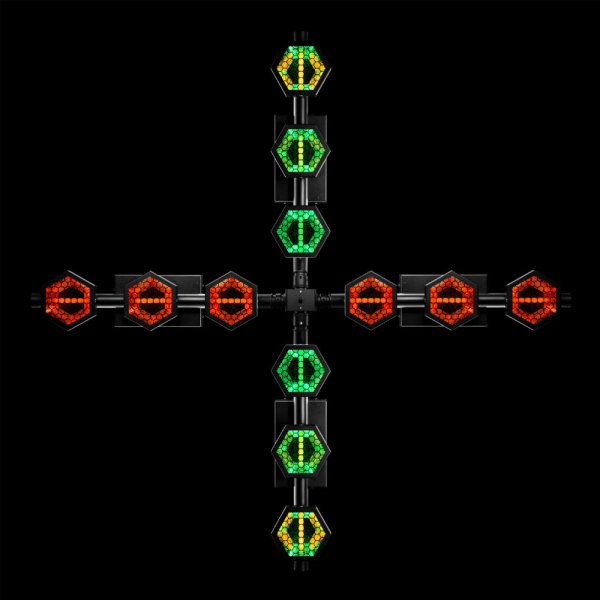

EVO ELEMENT and P2 EVO can be seamlessly connected together and/or using the E-CONN – 4-way connector, allowing you to build any structures.

4-way connector
E-CONN

This exceptionally robust additional accessory allows you to link fixtures into larger structures. It enables building precise and rigid constructions quickly and efficiently.

MAIN FEATURES
3 x portman haloLED
• 3x 60W
• true tungsten emulation
• smooth dimming
• warm on lower values
• bright and blinding on higher values

3 x RGBW glow
• 3x 12W
• saturated colours
• smooth dimming and colour mixing
• separate control

Hi-class electronics
• 6 DMX modes
• Colour Feedback System
• RDM
• W-DMX option
• macros
• power through

E-CONN connector (optional)
• 4-way connector
• adjustable arms
• solid connection
• perfect shapes

Dimensions 866 x 205 x 189mm
Weight 5,2kg
Rigging - 2 x 12 mm (1/2 in) holes for clamp on back
- base (not included)
- hanging adaptor (included) with 12 mm (1/2 in) hole for clamp
Mounting position Any
Input voltage 100-240V 50Hz/60Hz
Power consumption max 240W
Power connector PowerCon TRUE1 power through
Control connector - 5 PIN XLR (both: in & out)
Light sources - 3 x haloLED (3x60W)
- 3 x RGBW glow (3x12W)
Color temperature - 1600-3200K
- RGBW
CRI >90
Optics - High reflective hammered reflector
- Opal diffuser
Control features - 6 DMX modes (9-39 DMX channels)
- RDM
- macros
- W-DMX (optional module)
User interface - High-contrast LCD display
- Highlighted buttons
Warranty 24 months
IP rating IP20
What's in the box - Fixture
- 2m power cord (PowerCon TRUE 1<-> no plug)
- hanging adapter (also for tripod)
- User manual
P2 EVO compatibility - Height: 2x EVO ELEMENT = 1x P2 EVO
- the same pixels' sizes
- the same light sources
- the same accessories
Additional accessories - E-CONN (4-way connector. Each 30° adjustable arms)
- P2 EVO base
- P2 EVO height adapter
- WDMX module
- male-male connector
- flight case
