HIGHLITE Infinity Raccoon S420/4（インフィニティ ラクーン S420/4） [200600]

特徴

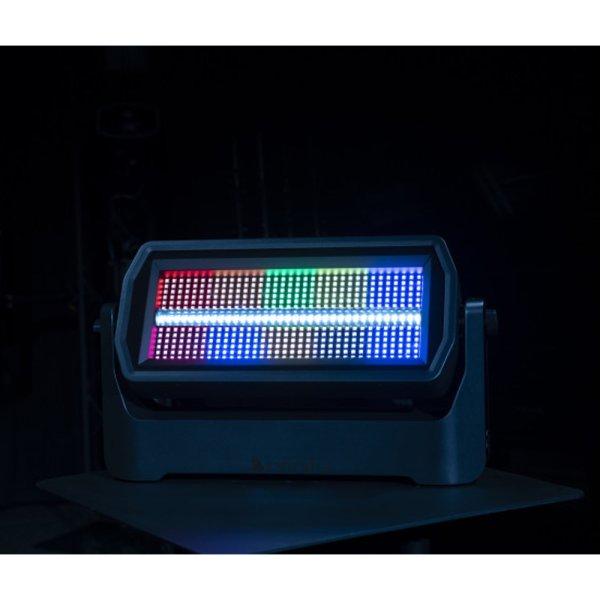

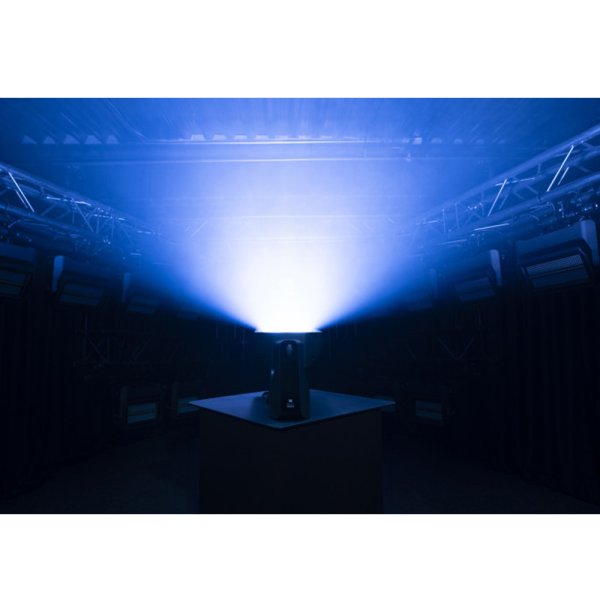

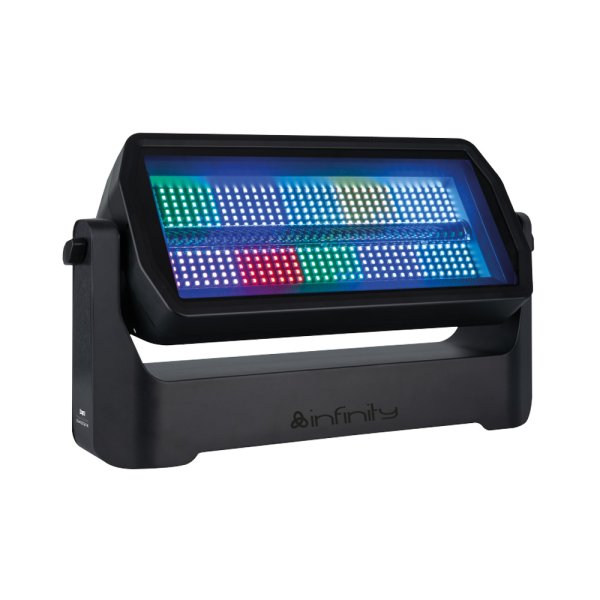

The Infinity Raccoon S420/4 is a very powerful strobe/wash combination fixture with a beam angle of 110 degrees. It has ten individually controllable sections with 42 RGBW LEDs each that deliver wash effects of up to 30,400 lumens when combined. The white part of the RGBW LEDs has a CRI of 92, which is very high for a product of this type.

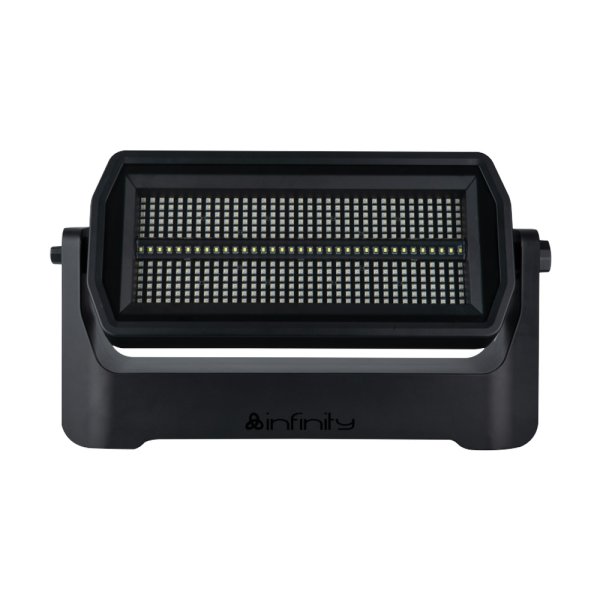

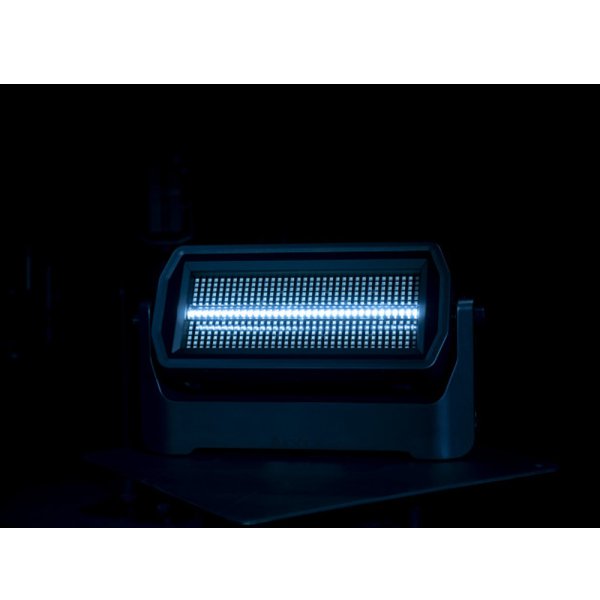

The strobe effect is created by a row of 35 ultra-bright CW LEDs, each capable of strobing at 20 W for a total of 700 W of LED strobe power (over 70,000 lumens)! The strobe LEDs have a special lens to optimise the output angle. The LEDs are positioned in a line in the centre of the fixture in between the wash LEDs. They can be used in continuous output mode, but are tuned down to 12 W (over 54,200 lumens) in this mode for thermal reasons.

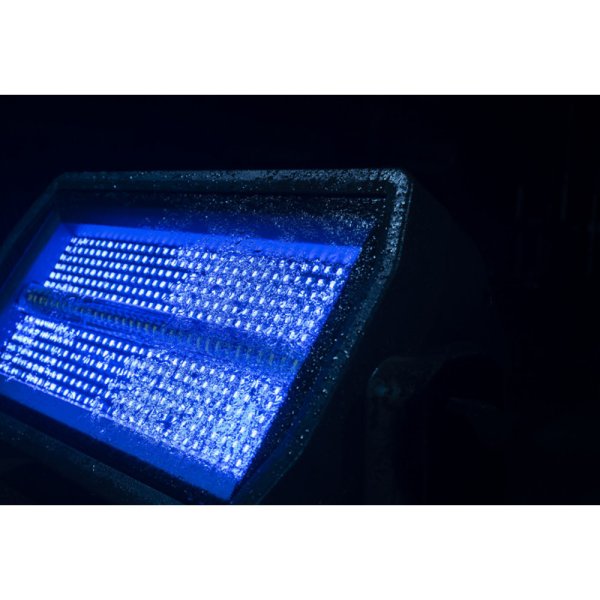

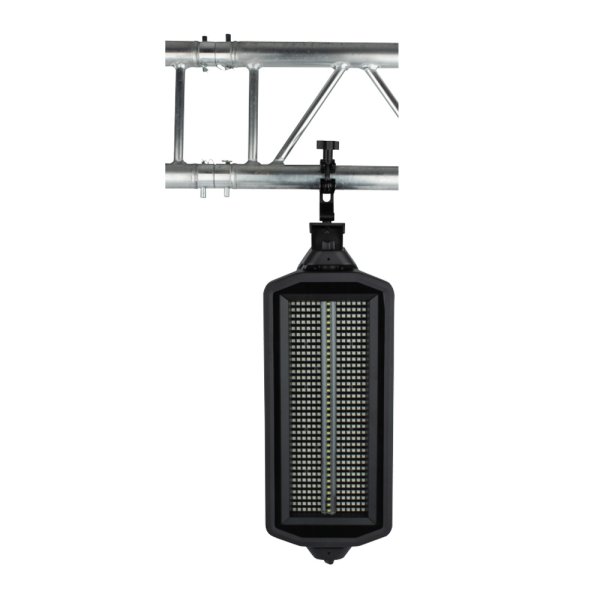

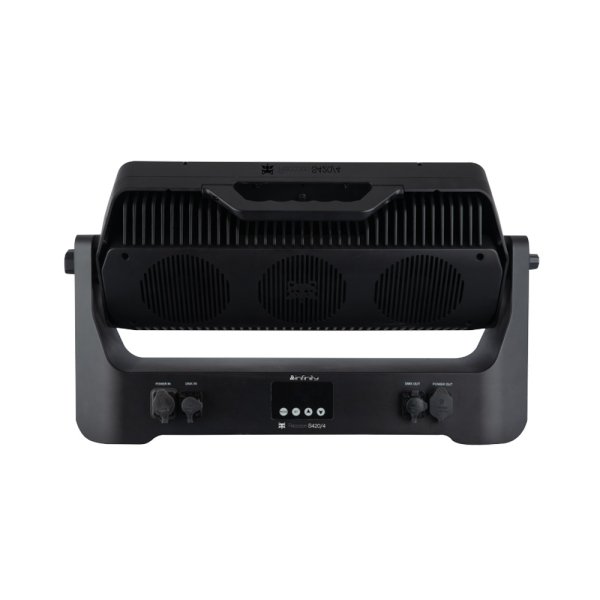

The LEDs are soldered onto a black PCB, so the strobes are inconspicuous when switched off. The cooling fans can be set to a slow mode to keep them whisper quiet. With the optional L bracket, the IP65-rated housing can be mounted vertically or at an angle, while still being balanced (no torque force on the mount). Other optional accessories include a top hat, a barndoor and a range of diffusers.

仕様

Specifications
Source
Light Source Type
LED
Light Source Quantity
420
Light Source Power
2 W
LED Colour Type
CW, RGBW
Life Expectancy
50000 h
Refresh Rate
12000 Hz
Luminous Flux (Total)
72000 lm
Luminous Flux (Red)
5035 lm
Luminous Flux (Green)
10060 lm
Luminous Flux (Blue)
2525 lm
Luminous Flux (White)
11800 lm
CRI
92
CCT
6500 K
Control and Programming
Control Mode
DMX, Manual
Protocols
DMX, RDM
Wireless
LumenRadio

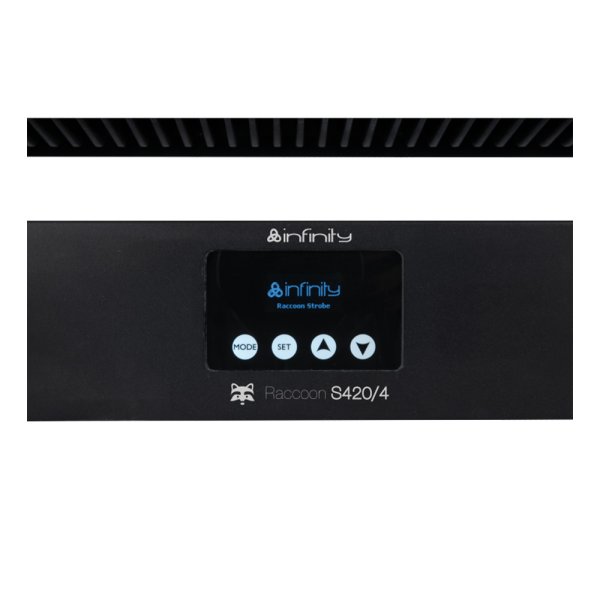

Display
OLED
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
860 W

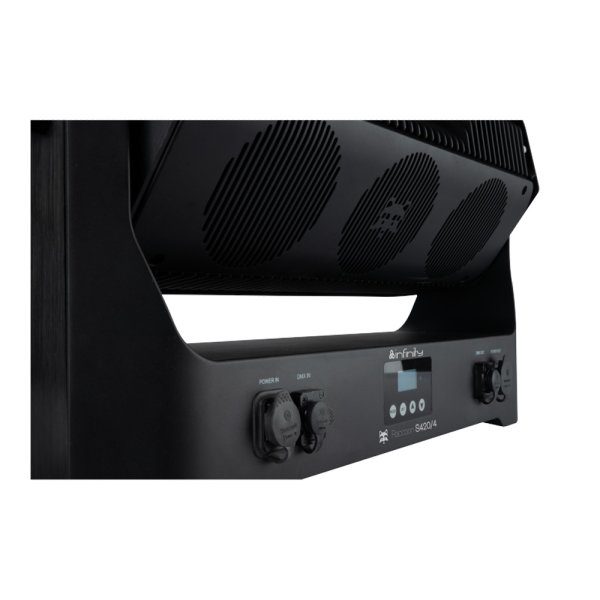

Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
Mechanical Specifications
Height (mm)
342 mm (13.465″)
Width (mm)
570 mm (22.441″)
Depth (mm)
140 mm (5.512″)
Weight
17.8 kg (39.242 lb)
IP Rating
IP65
Housing
Aluminium
Colour
Black
Product Properties

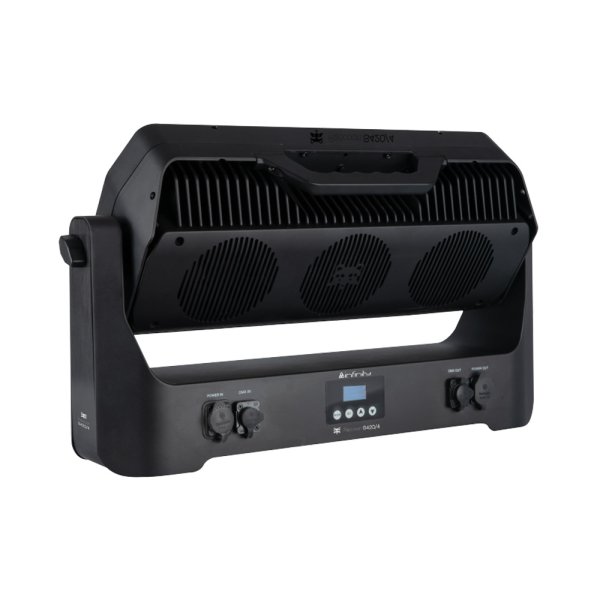

Cooling
Convection/Axial fan
Rigging
Mounting Options
Quick-Lock
Safety Attachment
Yes
Thermal Specifications
Maximum Ambient Temperature
45 °C (113 °F)
Minimum Ambient Temperature
-20 °C (-4 °F)
Included Items
Included Cables
Power Pro True Cable

参照

■メーカーサイト
https://www.highlite.com/en/products/new-products/200600-raccoon-s420-4.html
