HIGHLITE Showtec Octostrip FLEX Set - 1 m（ショーテックオクトストリップフレックスセット - 1 m） [42236]

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

特徴

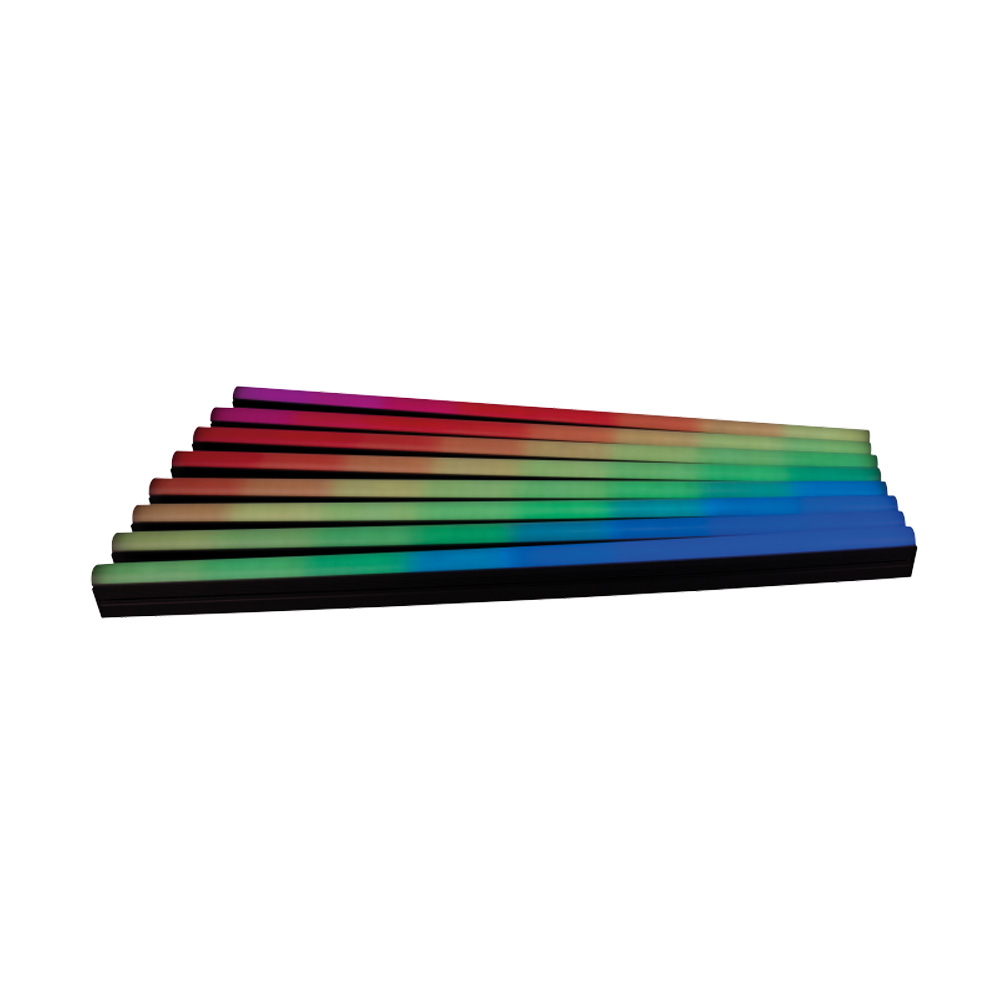

The Showtec Octostrip FLEX Set - 1 m is an IP65-rated set of 8 RGBW LED strips and a dedicated controller. Each LED strip has its own separate 1-metre-long housing with 8 controllable LED sections (56 LEDs in total) and a maximum power of 27 watts. The controller supports Art-Net and DMX, but also has stand-alone modes with built-in colour presets and colour sequences. All units have a robust aluminium housing that in case of the LED strip also helps with convection cooling of the LEDs.
The set is supplied with frosted interchangeable white and black diffusers that provide a uniform light. The white diffusers block the least amount of light. The black diffusers allow the Octostrip to be virtually invisible on a black background when switched off. Dedicated 4x 2.5 m and 4x 5 m cables with control signals and power are included. Additional dedicated cables of various lengths are available separately (maximum length allowed: 30 m).

仕様

Specifications
Source
Light Source Type
LED
LED Colour Type
RGBW
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
238 W
Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
Data Connector
etherCON In/Out
Data Connector In
etherCON
Data Connector Out
etherCON
Mechanical Specifications
Height (mm)
66 mm (2.598″)
Width (mm)
35 mm (1.378″)
Length (mm)
1007 mm (39.646″)
Controller Height
103 mm (4.055″)
Controller Width
171 mm (6.732″)
Controller Depth
372 mm (14.646″)
Weight
1.6 kg (3.527 lb)
Controller Weight
3 kg (6.614 lb)
IP Rating
IP65
Housing
Aluminium
Colour
Black
Product Properties
Cooling
Forced Convection
Rigging
Mounting Options
Clamp, Quick-Lock, Sliding Profile
Safety Attachment
Yes
Thermal Specifications
Maximum Ambient Temperature
40 °C (104 °F)
Minimum Ambient Temperature
-5 °C (23 °F)
Included Items
Included Cables
Flex Cable 2,5M, Flex Cable 5M, Power Pro Cable
Included Rigging
1x Quick-Lock Bracket
Product Compliance
Energy efficiency class
T/B/D
Control and Programming
Control Mode
Art-Net, Auto, DMX
Protocols
Art-Net, DMX
