HIGHLITE Showtec ACT Par 200W UV（ショーテック ACT Par 200W UV） [34068]

特徴

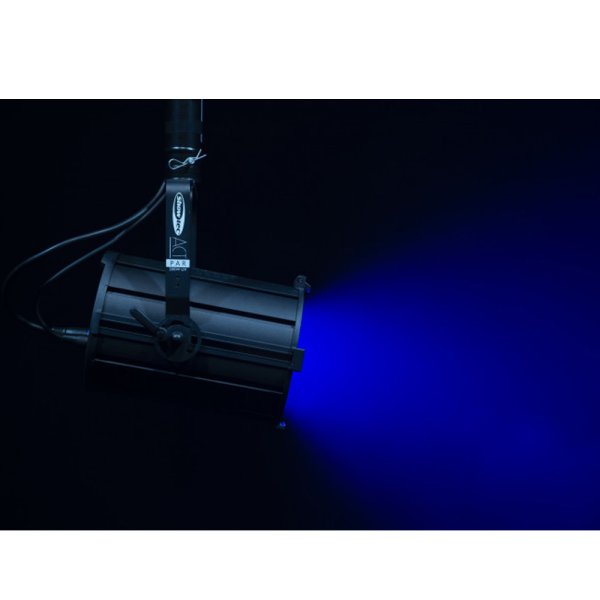

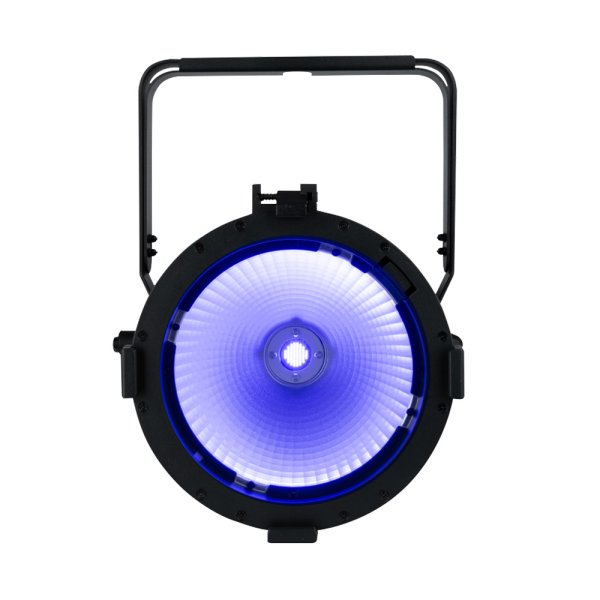

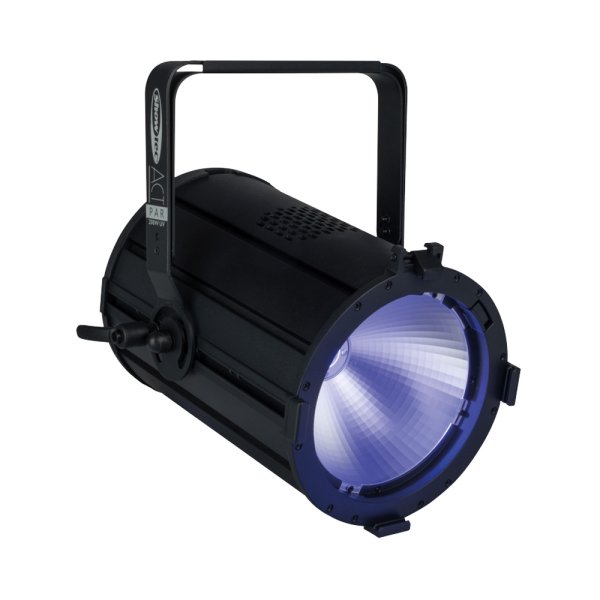

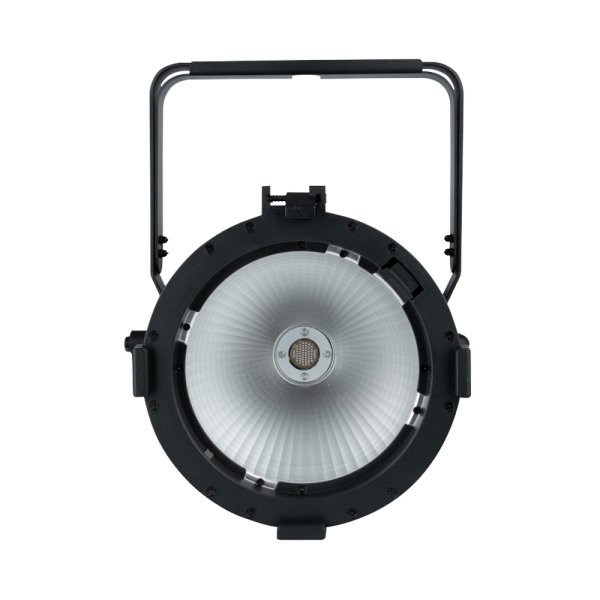

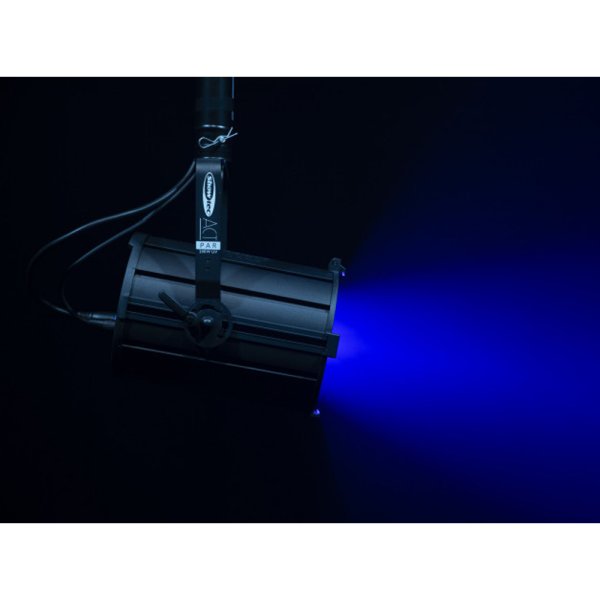

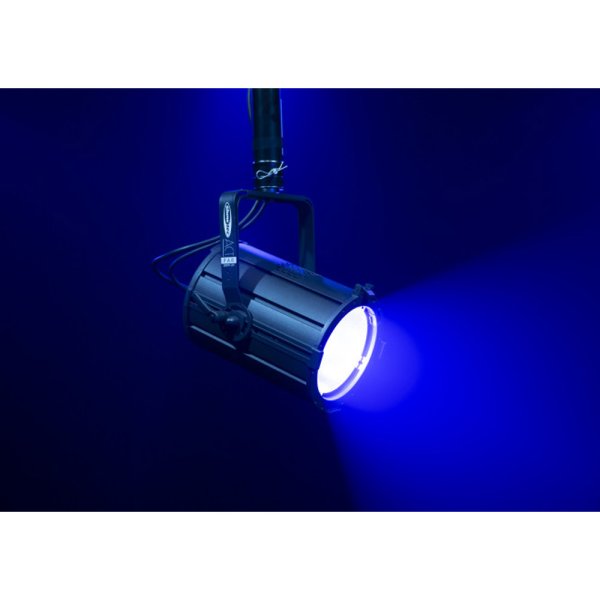

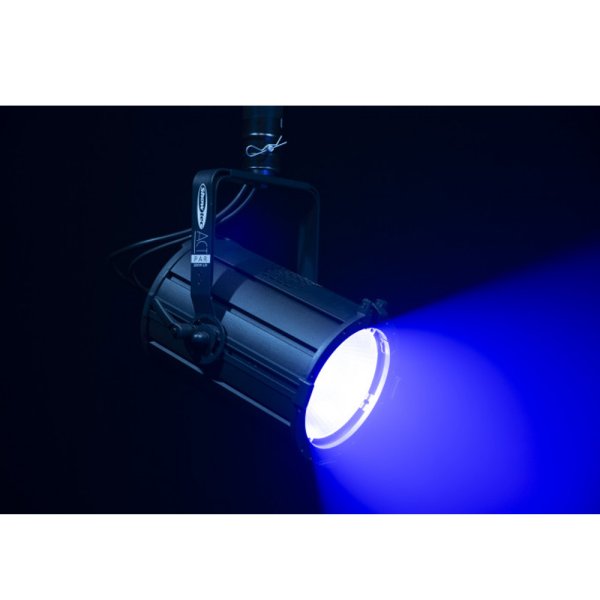

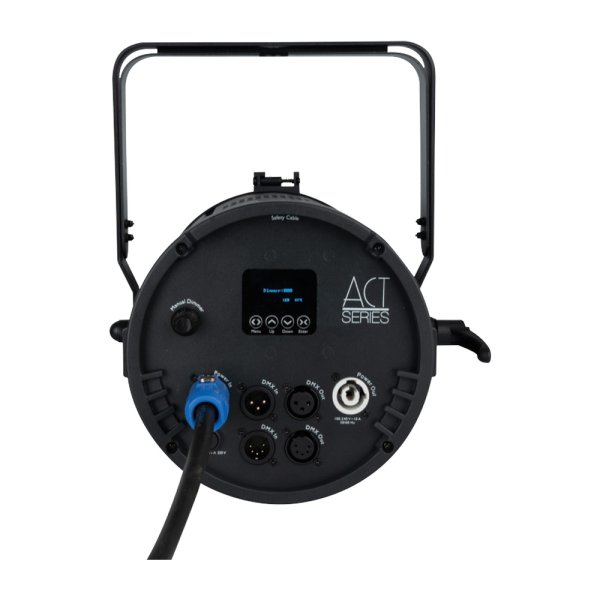

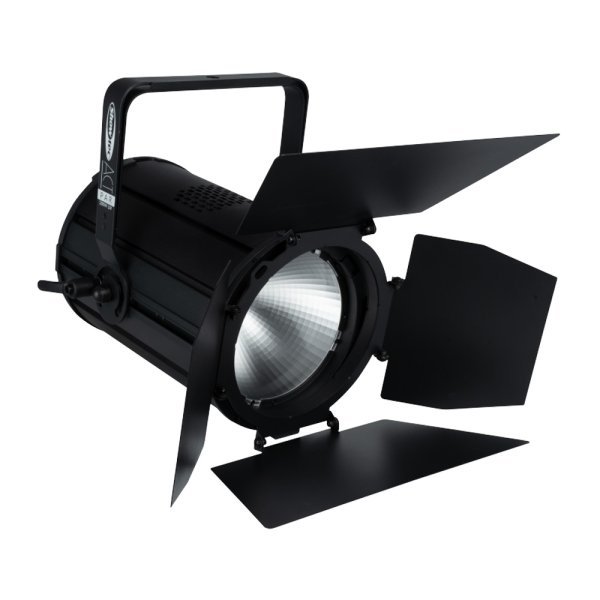

The Showtec ACT Par 200W UV is a 200-watt UV Par with a beam angle of 32°. It’s ideal for effect applications where fluorescence is key. A manual dimmer knob on the back allows easy manual control, while both 3-pin and 5-pin DMX inputs and outputs enable seamless integration into a variety of lighting setups. The ACT Par 200W UV also benefits from a strobe function. A 4-leaf barndoor for beam shaping is optional.

仕様

Specifications
Source
Light Source Type
LED
Light Source Quantity
1
Light Source Power
200 W
LED Colour Type
UV
Luminous Flux (Total)
388 lm
Optical
Beam Angle (Circular)
32 °
Control and Programming
Control Mode
DMX, Manual
DMX Channels
1, 2
Protocols
DMX, RDM
Display
OLED
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
205 W
Fuse
3.15 A
Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P, XLR 5P
DMX Connector Out
XLR 3P, XLR 5P
Mechanical Specifications
Width (mm)
258 mm (10.158″)
Height (mm)
304 mm (11.969″)
Depth (mm)
280 mm (11.024″)
Weight
4.5 kg (9.921 lb)
IP Rating
IP20 (indoor use only)
Housing
Aluminium
Colour
Black
Product Properties
Cooling
Axial fan
Rigging
Mounting Options
Bracket, Floor
Thermal Specifications
Maximum Ambient Temperature
40 °C (104 °F)
Included Items
Included Cables
Power Pro Cable
Included Optics
Diffuser
