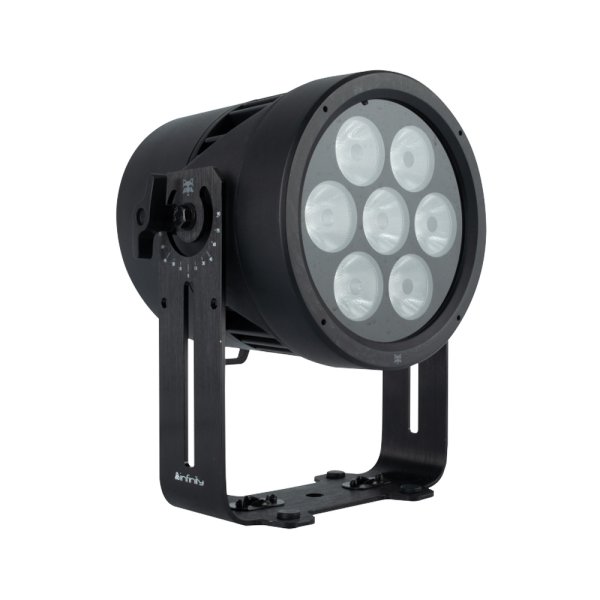

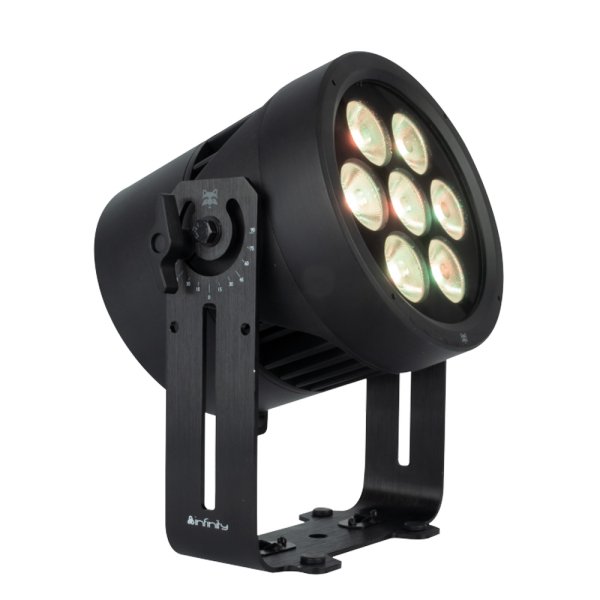

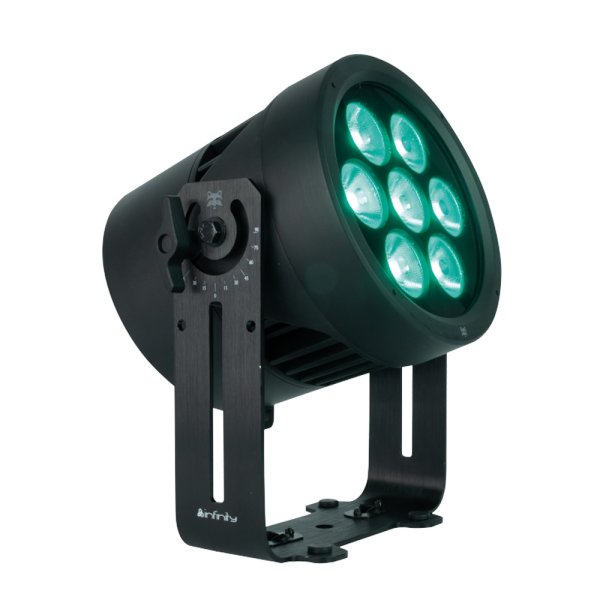

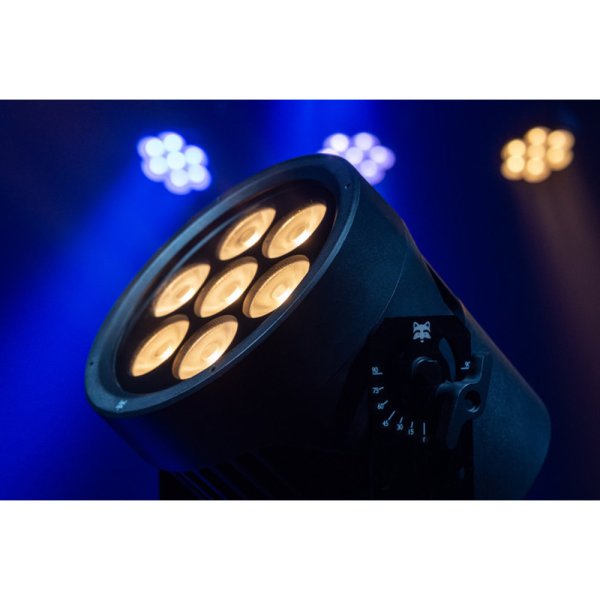

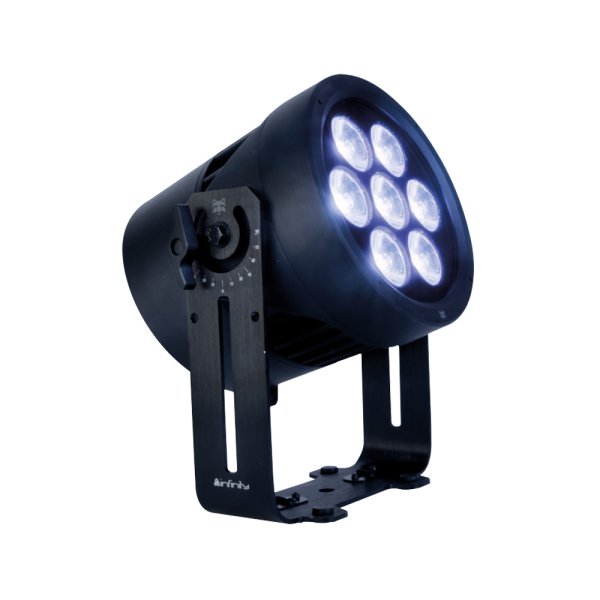

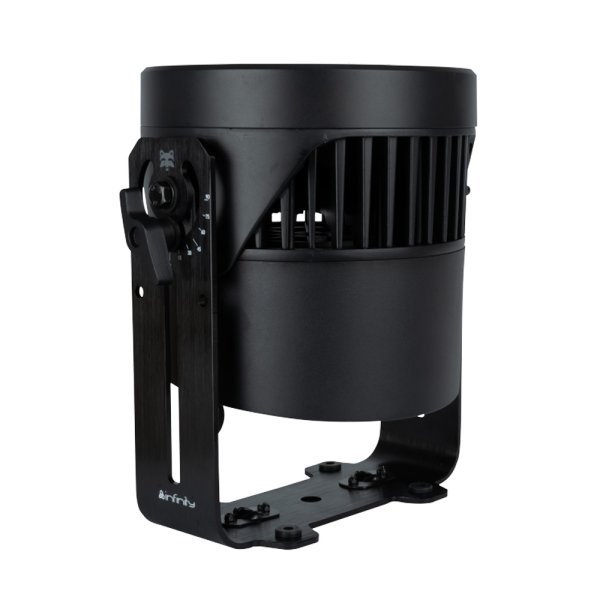

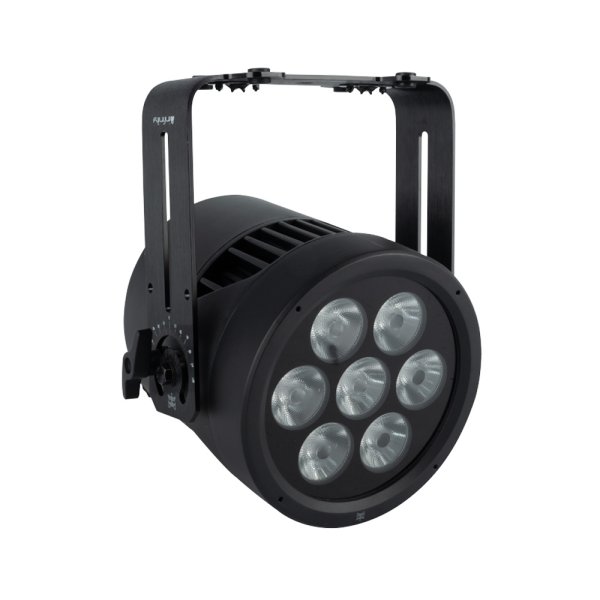

HIGHLITE Infinity Raccoon P7/7（インフィニティ ラクーン P7/7） [200550]

特徴

The Raccoon P7/7 is a very high-CRI, high-brightness, IP65-rated Par can, intended for applications where both quality and brightness are of high importance, especially exhibitions, museums, and situations that demand a high quality of light. It has 7 extremely accurate LEDs that have seven colours each: red, green, PC green, blue, royal blue, PC amber and cyan. You can switch between maximum brightness and maximum colour-rendering quality (high CRI) mode.
The fixture offers top-of-the-line control options. The core-technology of the Raccoon series is the calibrated XY colour engine, which guarantees outstanding colour quality and stability. With the embedded XY technology, it doesn’t matter which XY-capable fixtures you mix, their colours will always match! The calibrated internal controller ensures an exceptionally stable colour output at every temperature of the LEDs and every brightness setting, without any visible colour shift when dimming. We use the same calibration standards as the Infinity Signature series, so both fixtures are highly consistent in colour. Five different internal dimmer curves are available through the easy-to-use menu system, including a Tungsten shift simulation that works even with a colour filter applied! It can take care of CCT, RGB, and Lee filters internally.
Besides XY mode, control through regular DMX, RDM, Manual, and Master/slave is also possible. The PWM frequency is adjustable between 640 Hz and 25 kHz, ensuring flicker-free camera images. Basic settings, like PWM and dimmer curve, can be copied among Raccoon fixtures in the same network to guarantee identical behaviour. Sturdy 5P XLR DMX and Power Pro True power connectors ensure reliable connections and IP65 compliance. With its stylish housing and accessories like barndoors, a top hat, filter frames, and diffusion filters, the Raccoon series poses an ultra-flexible competitor for high-end par cans.

仕様

Specifications
Source
Light Source Type
LED
Light Source Quantity
7
Light Source Power
25 W
LED Colour Type
RGBCALDB
Luminous Flux (Total)
4932 lm
CRI
95
Minimum CCT
2000 K
Maximum CCT
8000 K
Optical
Beam Angle (Circular)
15 °
Control and Programming
Control Mode
DMX, Manual, Static Dimmer
DMX Channels
1, 3, 8, 10, 12, 14
Protocols
DMX, RDM
Display
OLED
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
150 W

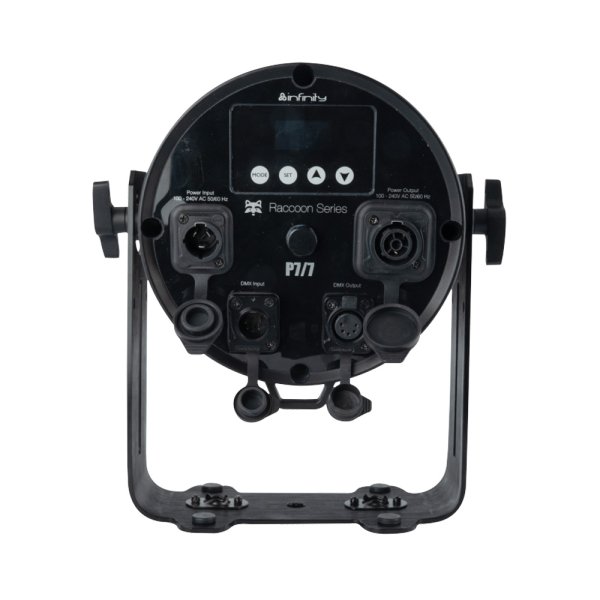

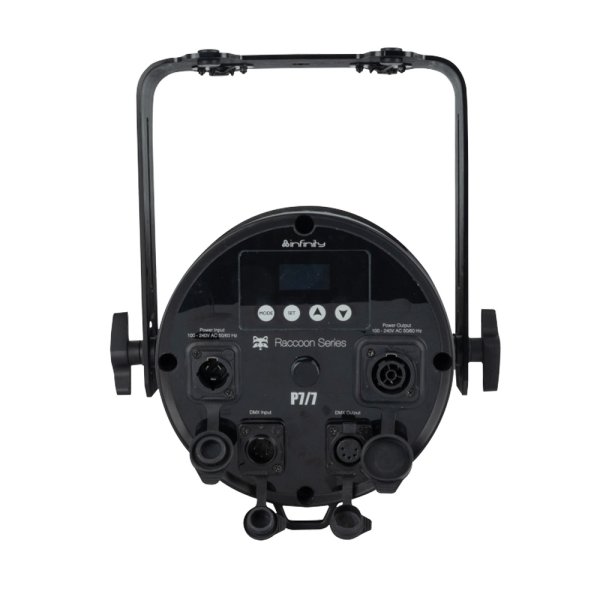

Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
Mechanical Specifications
Length (mm)
203 mm (7.992″)
Width (mm)
262 mm (10.315″)
Height (mm)
301 mm (11.85″)
Weight
6 kg (13.228 lb)
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Convection
Thermal Specifications
Maximum Ambient Temperature
45 °C (113 °F)
Minimum Operating Temperature
-20 °C (-4 °F)
Included Items
Included Cables
Power Pro True Cable
Included Rigging

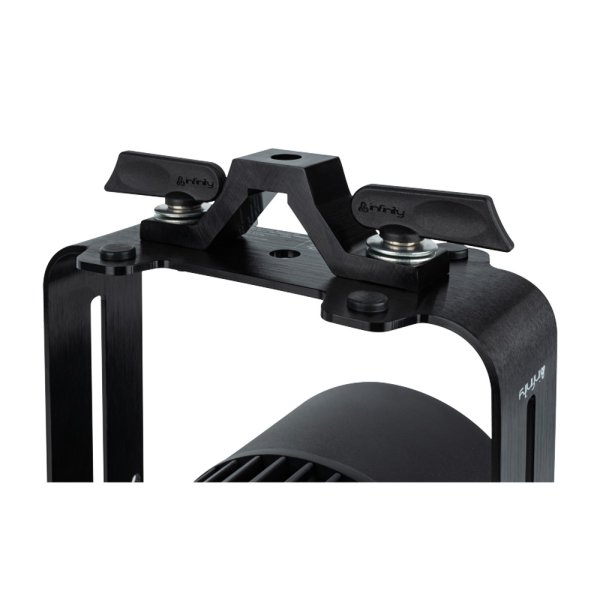

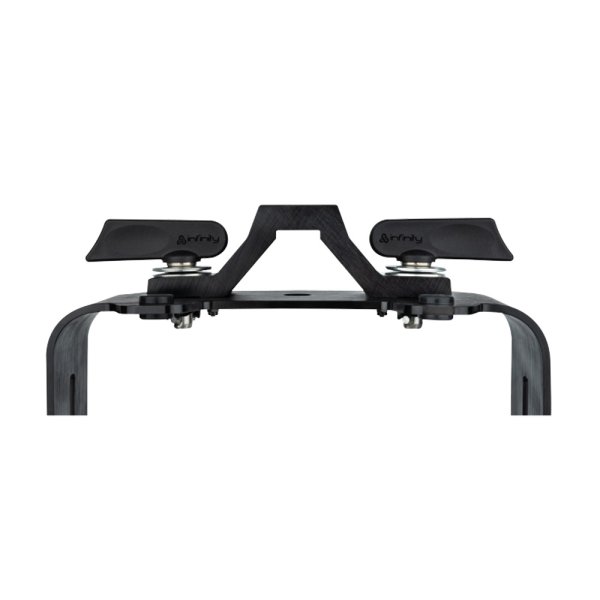

Quick-Lock Bracket
