HIGHLITE Showtec Performer Fresnel 2200 DDT（ショーテックパフォーマーフレネル 2200 DDT） [33045]

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

特徴

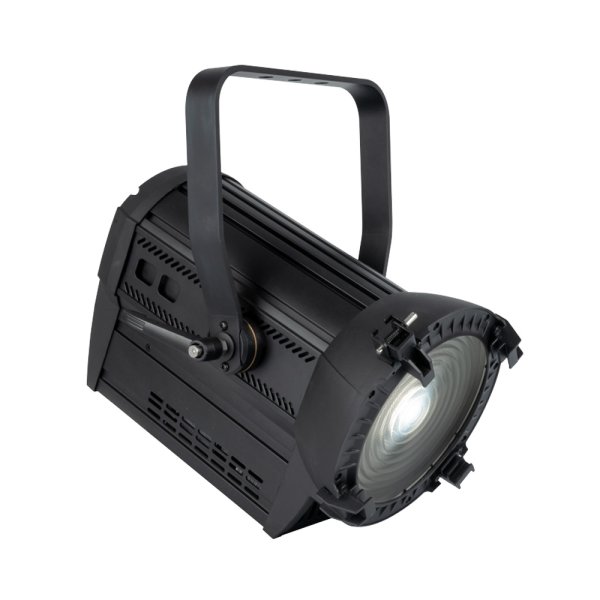

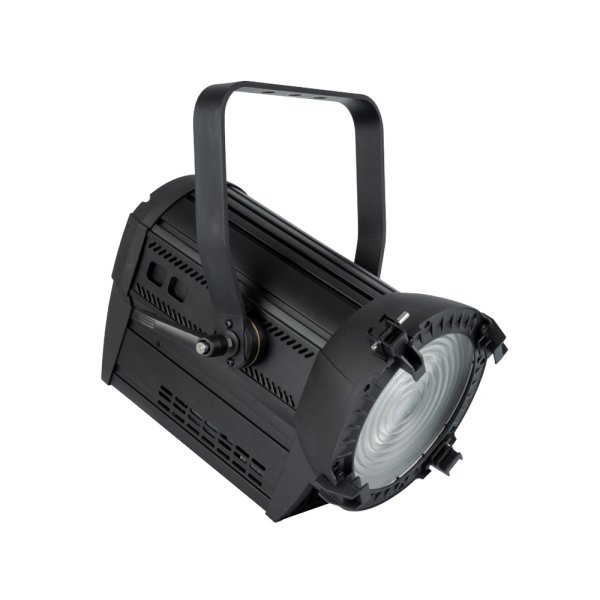

The Showtec Performer Fresnel 2200 DDT is a 300 watt Warm White LED Spot with high CRI (98) and silent operations, suitable for theatrical applications. It projects a bright, soft field of light within a 15° - 60° motorised zoom range. The Performer Fresnel 2200 DDT (Direct triac Dimming Technology) is compatible with a conventional dimming infrastructure. A barndoor is optional for shaping the output manually.

仕様

Specifications
Source
Light Source Type
LED
Light Source Quantity
1
Light Source Power
300 W
LED Colour Type
WW
Light Source System
COB
Life Expectancy
50000 h
Refresh Rate (Max.)
25 kHz
Illuminance @ 5 m
3890 lx
Luminous Flux (Total)
11000 lm
CRI
98
Maximum CCT
3200 K
Optical
Zoom Type
Manual
Zoom Minimum
15 °
Zoom Maximum
60 °
Control and Programming
Control Mode
DMX
DMX Channels
1, 2, 5
Protocols
DMX, RDM
Display
OLED
Dim Curve
Linear, Square, I-Square, S-Curve
Dimmer Resolution
8 bit, 16 bit
Dynamic Effects
Dimmer
0-100 %
Strobe
0-25 Hz
Electrical Specifications and Connections
Power Supply
120-250 V AC 50/60 Hz
Power Consumption
220 W
Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 3P In/Out, XLR 5P In/Out
DMX Connector In
XLR 3P, XLR 5P
DMX Connector Out
XLR 3P, XLR 5P
Mechanical Specifications
Length (mm)
417 mm (16.417″)
Width (mm)
286 mm (11.26″)
Height (mm)
260 mm (10.236″)
Weight
6.6 kg (14.55 lb)
IP Rating
IP20 (indoor use only)
Material
Aluminium
Housing
Aluminium
Colour
Black
Product Properties
Cooling
Forced Convection
Rigging
Mounting Options
Bracket
Safety Attachment
Yes
Safety Eyes
1
Product Compliance
Energy efficiency class
T/B/D
Thermal Specifications
Maximum Ambient Temperature
45 °C (113 °F)
Included Items
Included Cables
Power Pro Cable
Included Accessories
Filterframe
