HIGHLITE Infinity Raccoon W40/4（インフィニティ ラクーン W40/4） [200610]

概要

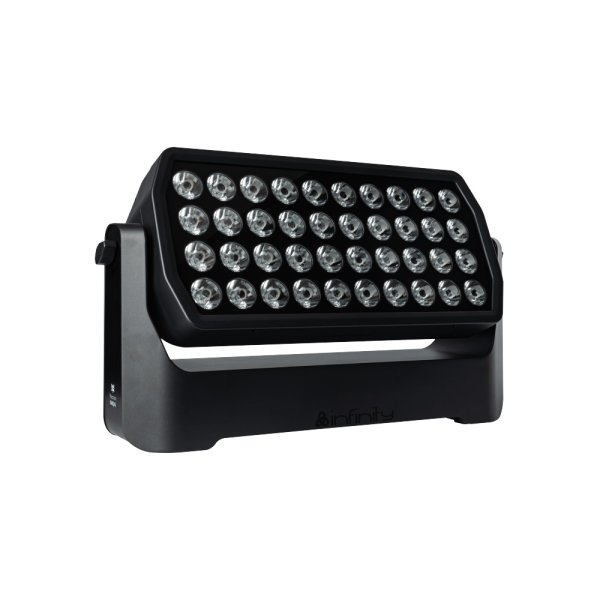

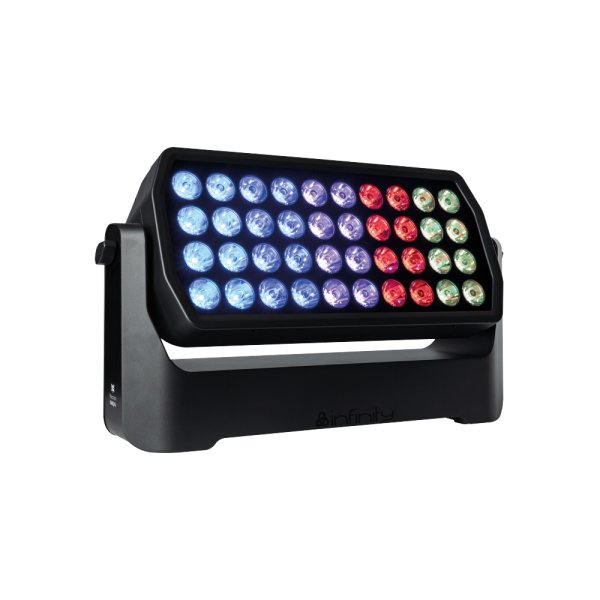

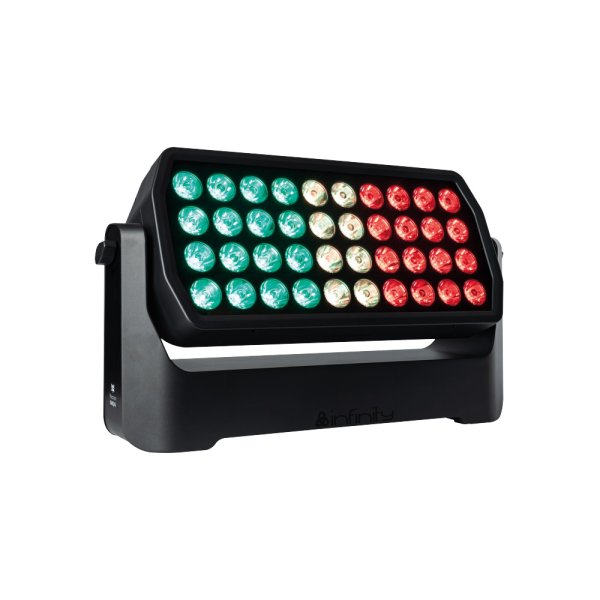

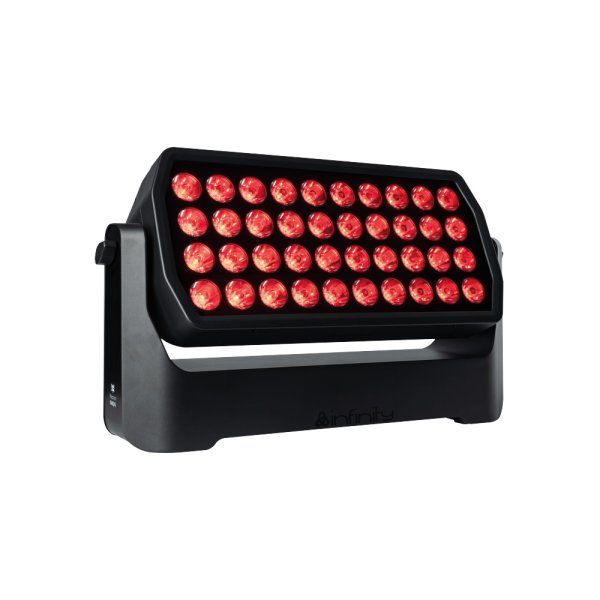

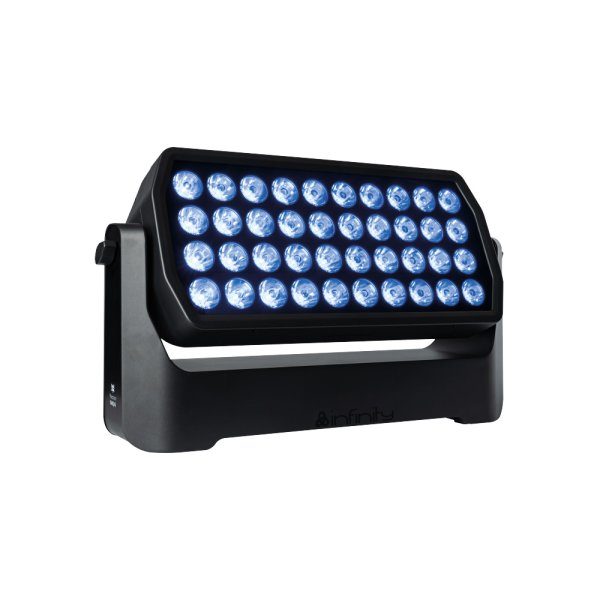

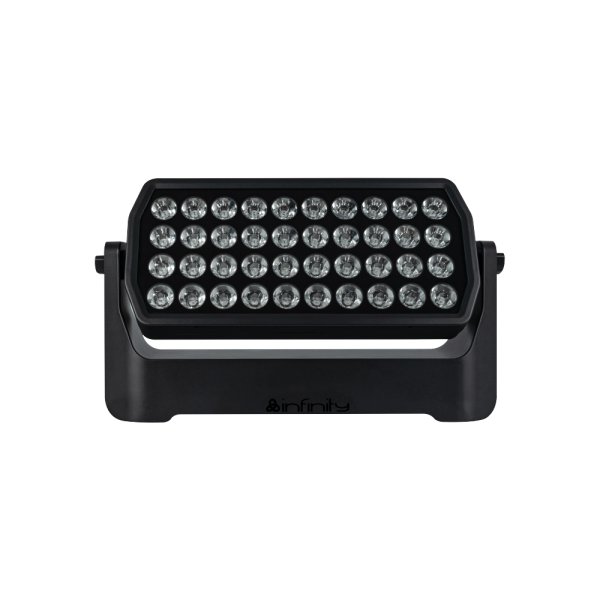

The Infinity Raccoon W40/4 is a powerful wash light with 40 RGBM LEDs of 15 W each, producing up to over 41,000 lumens. It has 5 individually controlled sections, has a 10-degree beam angle and uses a high 12,000 Hz refresh rate for a smooth and stable light output. Four internal dimming curves are available. It uses the same housing as the Raccoon S420/4 and is IP65-rated to withstand the elements during your show.

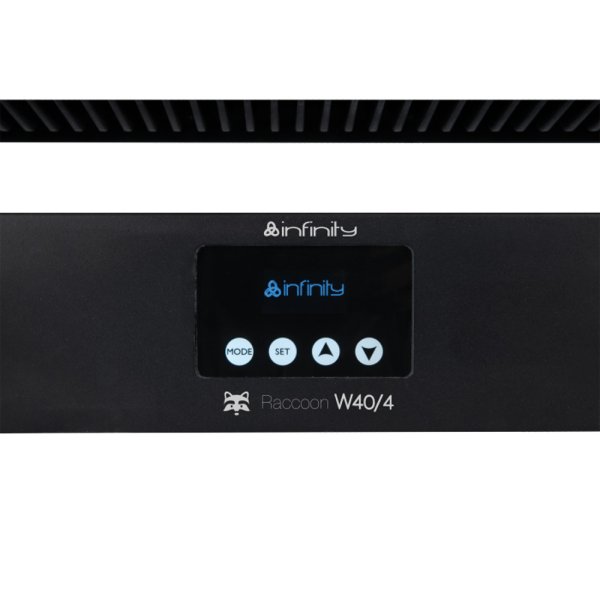

The fixture can be controlled wirelessly via DMX (LumenRadio G3, G4, CRMX), via wired DMX (5-pin XLR) or via manual controls and the on-board OLED display. It supports RDM and provides bi-directional communication with the lighting console.

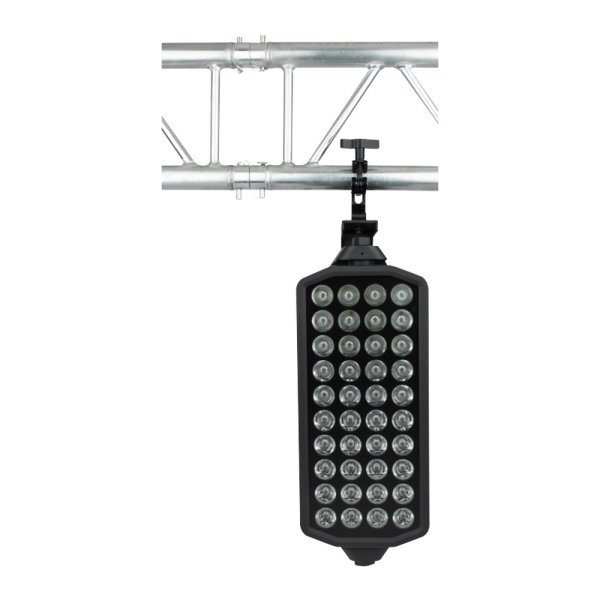

With the optional L-bracket, the Raccoon W40/4 can be mounted vertically or at an angle while still being balanced (no torque on the mount). Other optional accessories include a top hat, a barndoor, a range of diffusers with 20°, 40°, 90° and 15 x 60° beam angles and a sturdy flight case.

仕様

Source
Light Source Type
LED
Light Source Quantity
40
Light Source Power
15 W
LED Colour Type
R, G, B, M
Life Expectancy
50000 h
Refresh Rate
12000 Hz
Luminous Flux (Total)
41422 lm
Luminous Flux (Red)
9167 lm
Luminous Flux (Green)
11678 lm
Luminous Flux (Blue)
3169 lm
Luminous Flux (Mint)
20911 lm
CRI
87
Optical
Beam Angle (Horizontal)
10 °
Beam Angle (Vertical)
10 °
Wireless Specifications
Wireless Mode
G3, G4, CRMX
Control and Programming
Control Mode
DMX, Manual
DMX Channels
4, 6, 8, 20, 24
Protocols
DMX, RDM
Wireless
LumenRadio

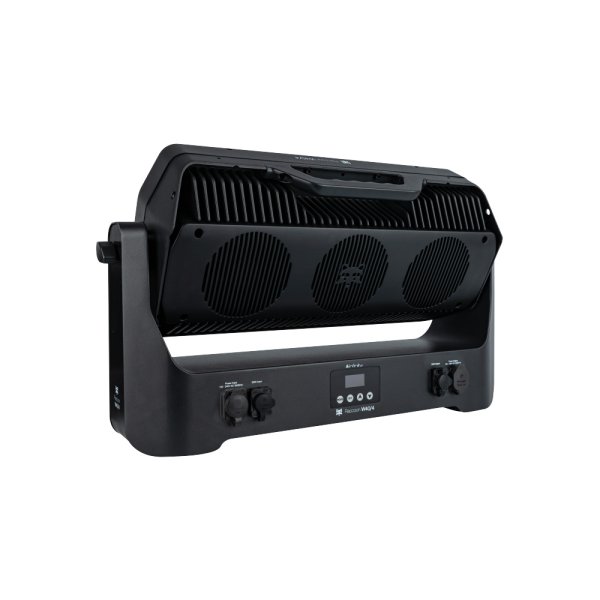

Display
OLED
Fan mode
Yes
Dim Curve
Linear, Square, I-Square, S-Curve
Dynamic Effects
Dimmer
0-100 %

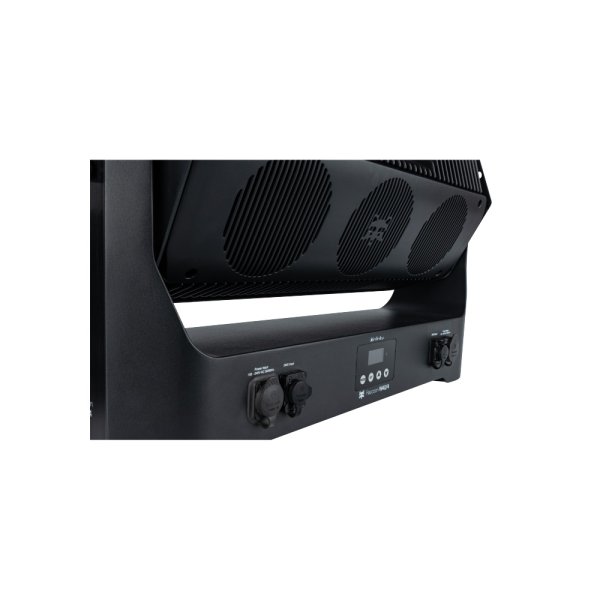

Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
825 W
Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
Mechanical Specifications
Width (mm)
617 mm
Height (mm)
351 mm
Depth (mm)
157 mm
Weight
16.8 kg (37.038 lb)
IP Rating
IP65
Housing
Aluminium
Colour
Black
Product Properties
Cooling
Convection/Axial fan
Rigging
Mounting Options

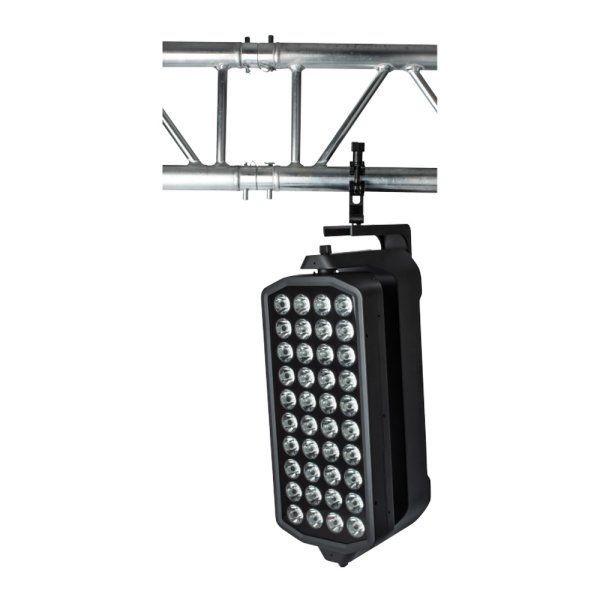

Quick-Lock
Thermal Specifications
Maximum Ambient Temperature
45 °C
Minimum Operating Temperature
-20 °C
Included Items
Included Cables
Power Pro True Cable
Included Rigging
Quick-Lock Bracket

参照

■メーカーサイト
https://www.highlite.com/en/products/new-products/200610-raccoon-w40-4.html
