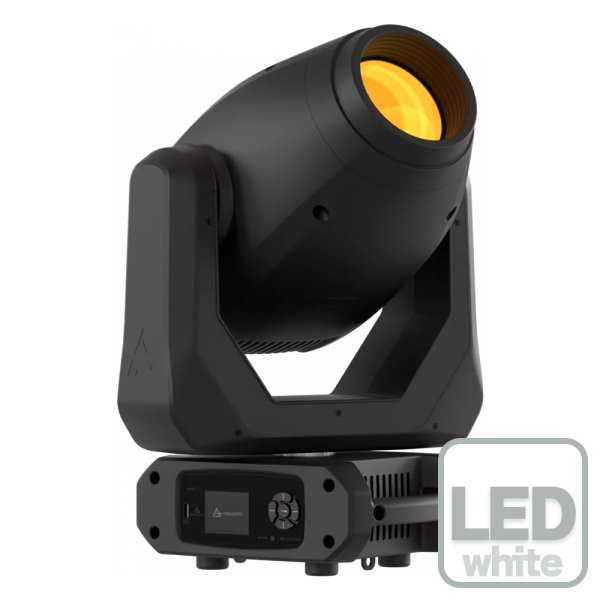

PROLIGHTS Jet Hybrid200（ジェット ハイブリット200） [JETHYB200]

特徴

200W Hybrid Moving head, with 3.5° - 40° zoom and color wheel

Jet Hyb200 is a budget-friendly, hybrid beam-spot moving light, offering high-quality and powerful output in a compact design.

Tailored for both mid-air effects and image projections, it boasts an impressive 8,000-lumen output from a 200W LED source. Its fast zoom ranges from 3.5° to 40°, making it an excellent replacement to compact discharge hybrid fixtures.

The Jet Hyb200's dynamic effects suite includes a color wheel with 13 dichroic filters, two gobo wheels featuring 8 rotating and 17 static gobos, along with prism and frost capabilities for diverse creative needs.

Main features:
Beam-Spot hybrid moving light with 200W LED source
Linear zoom ranging from 3.5° to 40°
15 kg

仕様

Technical specifications
LIGHT SOURCE
Source: 200W high-power white LED
CCT: 7.000
Luminous flux: (3,5°) 5'962 lm - (40°) 7'593
Lux: (3,5°) 69'503 lx - (40°) 1'461lx @5 m full
CRI: > 70 (CCT 6000K and CRI > 84 with filter on color wheel)
Source life expectancy: > 30.000 h

OPTICS
Zoom: 3,5° - 40° motorised linear zoom
Lens diameter: 100mm / 3.94''
Lens type: HD anti-reflection lenses with achromatic coating
Focus: motorised

COLOUR SYSTEM
CCT: on wheel 3.200 K
Colour wheel: 11 colour filters
Colour wheel: High CRI colour filters

DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer
Rotating gobos: 8 rotating gobos + open, interchangeable, indexing
Gobo size: outer: 13,9 mm - image: 11 mm - thickness: up to 3 mm
Fixed gobos: 17 fixed gobos + open
Circular prism: 5f with bi-directional rotation, indexing
Frost: linear 0 - 100% light frost filter, interchangeable

BODY
Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
Pan angle: 540°
Tilt angle: 260°
Pan/Tilt resolution: bit 8 / 16-bit
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with high-resistance polycarbonate cover
Body colour: RAL 9004

CONTROL
Protocols: DMX512, RDM
DMX channels: 20channel
RDM: RDM for remote monitoring and settings
Display: LCD high resolution colour display with autoflip
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included or via USB pen drive

ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -10° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL
Mains power supply: 100-240V - 50/60Hz (max absolutes range: 90-264V - 50/60Hz)
Max power consumption: 276W
Standby power: 56W
Output (at 230V): 9 units on a single power line
Power factor: > 0,94
Inrush current: 30A @115VAC /＜50A @230VAC

PHYSICAL
IP rating: 20
Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing: any position with quick-lock omega brackets
Pan / tilt lock: for transportation and maintenance
Signal connection: Neutrik IP XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON TRUE IP65 IN/OUT
Dimensions (WxHxD): 356x538x205mm / 14.02''x21.18''x8.07''
Weight: 15kg / 33.07lbs

CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, RCM, FCC, cTUVus

BOX CONTENT
1 x JETHYB200
1 x OS24PLUS
1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
User manual
