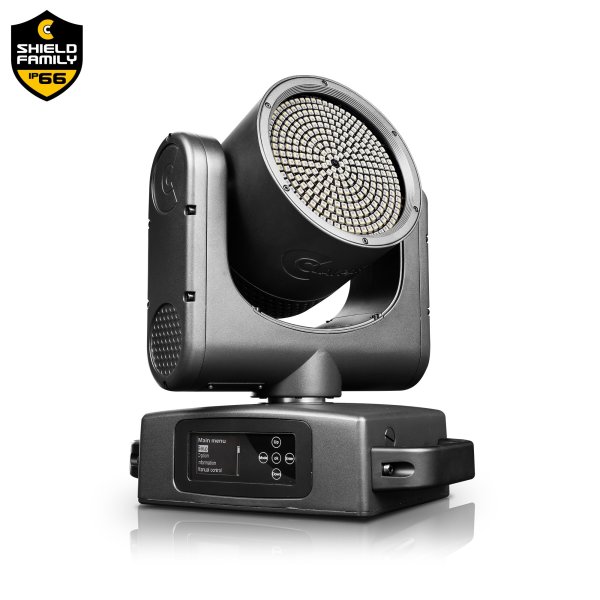

Clay Paky Mini-B Sparky Aqua（ミニビースパーキーアクア） [CL3034]

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

特徴

Step into the future with Mini-B Sparky Aqua—a true game-changer in the world of compact, lightweight mini moving-heads! This IP66-rated fixture is causing a stir, and for good reason: prepare to be hypnotized by the powerful strobe effects of Mini-B Sparky Aqua!

Let’s dive into the details:

Robust Design, Powerful Performance: Mini-B Sparky Aqua doesn’t play games when it comes to durability and brightness. Its high-output RGBW SMD LEDs, arranged in 10 individually controllable concentric circles, create intense colors that spread evenly across a wide 120° floodlight. Whether indoors or outdoors, this tiny fixture delivers awesome visual effects, from kaleidoscopic displays to strong strobe effects.
Swift Moves, Precise Beams: Thanks to lightning-fast pan and tilt movements, Mini-B Sparky Aqua hits its mark every time. Perfect for live performances, events, and dynamic light shows, it’s like having a nimble dancer on stage. From gentle fades to dramatic sweeps, it’s got the moves.
Sleek Design, Seamless Integration: Mini-B Sparky Aqua’s compact profile fits anywhere—trusses, overhead rigs, or discreet spots. Modern design meets top-tier performance.
Creativity Released: Our Advanced Layer Management system lets you merge effects effortlessly. Background color, built-in macros, and external video content—mesmerizing possibilities at your fingertips.
Rock the Stage, Illuminate the backdrops: Mini-B Sparky Aqua can deliver vibrant lighting effects that leave audiences spellbound.
Whether you’re planning a large-scale event, a theatrical production, or a themed installation, this fixture promises to deliver unparalleled performance and reliability. Get ready to be hypnotized!

Light Source
330 x 1W RGBW SMD LEDs arranged into 10 concentric circles
Light Output
up to 14,000 lm
Zoom range
120° beam aperture
Effects
Pixel mapping; 16-bit electronic dimmer; Electronic strobe @ 30 f/sec

仕様

MODEL:MINI-B SPARKY AQUA
CODE:CL3034
WARNING:THE INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE AND SHOULD NOT BE CONSTRUEDAS A COMMITMENT BY CLAYPAKY S.R.L.

LIGHT SOURCE:
Source type:LED RGBW(330 pcs x 1W)
Power:250W
Color temp.:6400K
LED life expectancy:50.000 hrs L70*
*It may vary depending on various factors, such as the type of use and environment

PHOTOMETRIC DATA:
Aperture:120°
Lm output:≤ 14.000 Lm
Optical system:High efficiency

CONTROL & CONNECTIONS:
Protocols:DMX, Art-Net, sACN, RDM, Webserver
Connectors:Locking 5 pin XLR IN/OUT; RJ45 IN/OUT
Power con.:PowerCon True 1 IN/OUT
Web server:Built-in
CloudIO:Fully compatible; On-field calibration for color consistency

DYNAMIC EFFECTS:
Colors:
Electronic CTO;Advanced layers management (color, internal shape, pixel mapping); individual control of 10LEDs areas; pre-programmed shape selection of static and dynamic patterns
Movement:Tilt: 270°; Pan: 540
Strobe:Electronic strobe from 1 to 30 f/sec
Dimmer/Shutter:High speed electronic dimmer–16 Bit; High speed electronic shutter and strobe

HARDWARE & SOFTWARE:
Display graphic LCD blacklit B/W display; firmware upload from another fixture, firmware upgrade via Web Server;diagnostic; DMX monitoring; remote access through RDM

HOUSING:
Magnesium housing; two-side handles for transportation; IP66 protection rate;workingin any position; hanging system with fast-lock Omega clamps (1/4) on the base

ELECTRICAL:
Operating voltage:100–120 / 200–240 V, 50 / 60 Hz
MAX power
consumption:300 W

THERMAL SPECIFICATIONS:
MAX ambient temperature:45 °C (113 °F)
Min ambient temperature:-20 °C (-4 °F)
