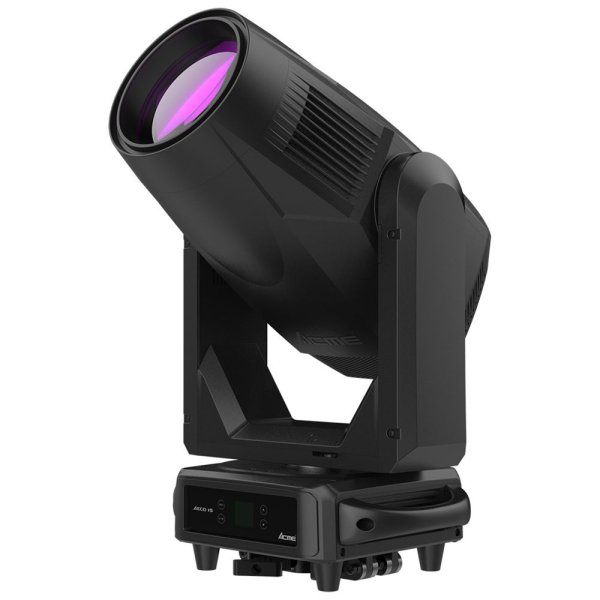

ACME AECO 15（エイコ 15）

概要

AECO 15, a high CRI LED hybrid light, combines the power of Beam, Spot, and Wash in one unique fixture. Fitted with a 1,500-Watt LED engine calibrated at 6,200K that offers an impressive 33,500 lumens from a 180 mm frontal lens, the fixture dazzles with unparalleled brightness and precision.

Experience seamless transitions from warm 2,700K to cool 6,200K with its variable CTO, ensuring vivid color reduction and seamless color mixing. Additional benefits include a zoom range of 5° to 52°, CMY, a static gobo wheel, a rotating gobo wheel, and a color wheel for endless lighting design possibilities. The effect section is fitted with a graphic animation wheel, two frost filters, and a 4-facet prism.

Perfect for performances, ballrooms, theaters, and more, the AECO 15 redefines versatility and reliability in lighting design. Elevate your lighting experience with AECO 15 - a masterpiece that truly captivates audiences!

特徴

・LED engine comprised of 1,500W LED
・180 mm diameter frontal lens
・Zoom Range: 5°-52°
・Total Lumen Output of Fixture: 33,500 lumens
・Color Temperature Output of Fixture: 6,200K
・Color Rendering:
・Ra≥95, R9≥95, R15≥95
・TLCI≥95
・TM-30 Rf: 91
・TM-30 Rg: 99
・Linear CMY color mixing
・Reliable cooling technology for the light source
・Variable CTO ranging from 2,700K-6,200K
・1 Static Gobo Wheel: 8 gobos, plus open
・1 Rotating Gobo Wheel: 7 gobos, plus open
・1 Color Wheel: 5 colors + CTB, plus open
・1 combinable light frost filter and 1 combinable medium frost filter
・1 graphic animation wheel with continuous rotation in both directions
・1 combinable rotating and indexable prisms
・4 rotating full blackout framing shutter blades with individually controllable; ±60° rotation of the framing system module
・Motorized linear iris
・Smooth dimming 0-100% (4 user selectable dimming curves)
・Outstanding strobe effect with variable speed

仕様

■Model
・AECO 15

■Light Source
・Light Source: 1,500W LED engine
・Color Temperature Output of Fixture: 6,200K
・Total Lumen Output of Fixture: 33,500 lumens
・Life Expectancy: 20,000 hours*
*Source manufacturer specification

■Optical System
・Zoom Range: 5°-52°
・Diameter of Front Lens: 180 mm
・Color Rendering:
・Ra≥95, R9≥95, R15≥95
・TLCI≥95
・TM-30 Rf: 91
・TM-30 Rg: 99

■Control

・4 button touch control panel
・Display: LCD display
・Protocols: DMX512, RDM
・DMX Protocol Modes: 4
・Control Channels: 22/29/31/38
・Firmware Upgrade: Upgrade via DMX link

■Pan & Tilt

・Pan Movement: 540°
・Tilt Movement: 270°
・Automatic pan/tilt position correction
・Resolution: 16 bit
・Fixation: Pan/Tilt lock

■Colors

・Linear CMY color mixing
・Linear CTO Color Correction: 2,700K-6,200K
・1 Color Wheel: 5 colors + CTB, plus open

■Static Gobos

・1 Static Gobo Wheel: 8 gobos, plus open

■Rotating Gobos

・1 Rotating & Interchangable Gobo Wheel: 7 gobos, plus open
・Gobo Diameter: 29.8 mm
・Image Diameter: 22 mm
・Gobo Thickness: 1.1 mm
・Max Thickness: 3.4 mm
・Borofloat or better glass materials
・Set with "SLOT & LOCK" system for gobos replacement

■Animation Wheel

・A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave & flame effect, and can be changed into other wheels

■Prism

・1 x 4-facet prism, rotatable in both directions

■Frost Filter

・1 combinable light frost filter and 1 combinable medium frost filter

■Framing System

・Shutter Blades: 4 blades, each with separate movement and full blackout
・Rotation: ±60° of the complete framing system

■Other Effects

・Outstanding strobe effect with variable speed
・Smooth dimming 0-100% (4 user selectable dimming curves)
・Motorized linear Iris

■Electrical and Connectors

・Input Voltage Range: 100-240Vac; 50/60Hz
・Power Consumption: 1,555W
・Power In/Out: Power Cord in
・Data In/Out: 3-pin and 5-pin XLR



■Work Environment

・Maximum Ambient Temperature: 40°C
・Minimum Operating Temperature: 0°C
・Maximum Surface Temperature: 65°C
・Protection Rating: IP20

■Installation

・Horizontal or vertical mounting
・Universal working position
・2 fixed foldable clamps for 50 mm truss
・Safety cable attachment point

■Included Items

・Digital user manual
・Power cable with TRUE1 type connector
・2 fixed foldable clamps for 50 mm truss

■Optional Accessories (with item code)

・Flight Case: 3205001288
・Signal Line: 3-pin and 5-pin signal line
・Safety Cable: 2060001603-A (SW-05)

サイズ

■Physical Information

・Fixture Dimensions:
Width: 412 mm (16.3")
Depth: 308 mm (12.1")
Height: 770 mm (30.3")
Weight: 43 kg (94.8 lbs)

・Packing Information

Flight Case Dimensions:
Width: 715 mm (28.1")
Depth: 595 mm (23.4")
Height: 905 mm (35.6")
Weight: G.W.: 91 kg (200.6 lbs) (one-pack loader case)
Carton Dimensions:
Width: 670 mm (26.4")
Depth: 520 mm (20.5")
Height: 750 mm (29.5")
Weight: G.W.: 45 kg (99.2 lbs) (one-pack loader carton)
