Gantom JUNI WIDE LENS COOL WHITE（ジュニワイドレンズクールホワイト） [GT83]

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

特徴

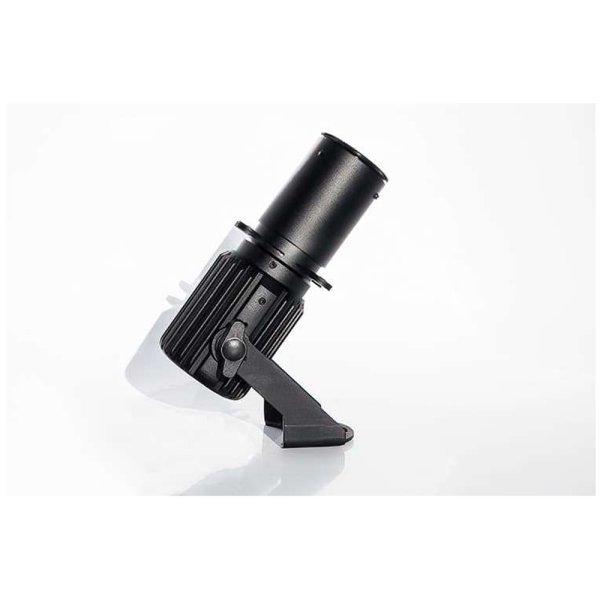

At less than 130mm (5 inches) in length, Juni is the smallest framing projector on the market. Gantom collaborated with top lighting designers in themed entertainment and architecture to create the most precise lighting tool for space-constrained environments. With zoom optics and multiple mounting configurations, Juni provides specifiers with design flexibility in a wide range of applications. For permanent installations, every adjustable mechanism is fully lockable (including shutters) to assure fixture focus when the designer steps away. All this in a fixture that’s smaller than your smartphone!

Juni has a matte-black anodized aluminum finish with silver available by custom quotation. Juni is available in 12VDC PWM or DMX (see Juni DMX) dimming options. There are 3 available mounting options: standard screw-mount yoke, recessed canopy, and track.

FEATURES
Ultra-compact design < 130mm (5 inches) long
Class 2, low-voltage 12VDC input (DO NOT HOT PLUG)
Adjustable zoom and focus lenses

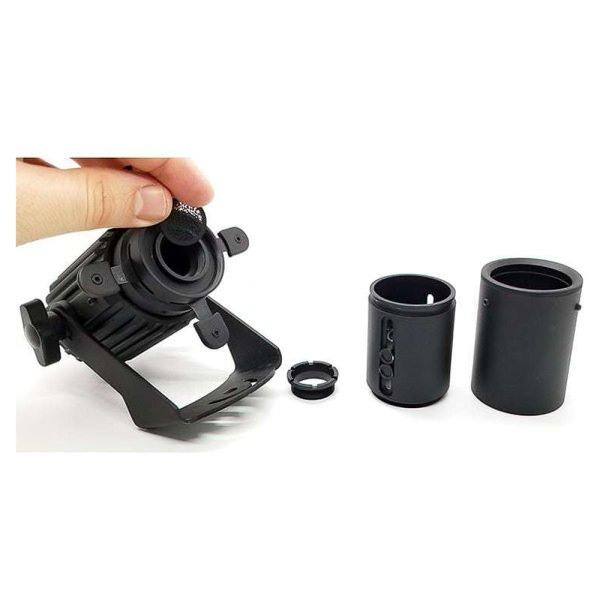

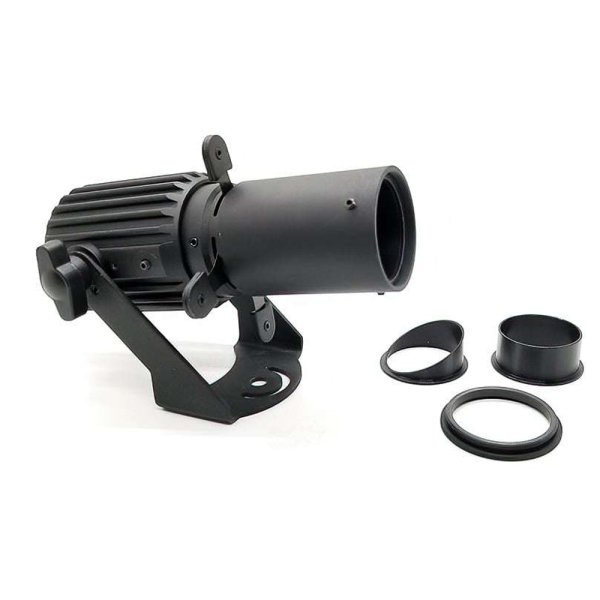

Interchangable lens tubes with a beam angle range of either 25-38° or 42-60°
3000K 90CRI or 6000K LED options available
Locking tri-plane shutter system

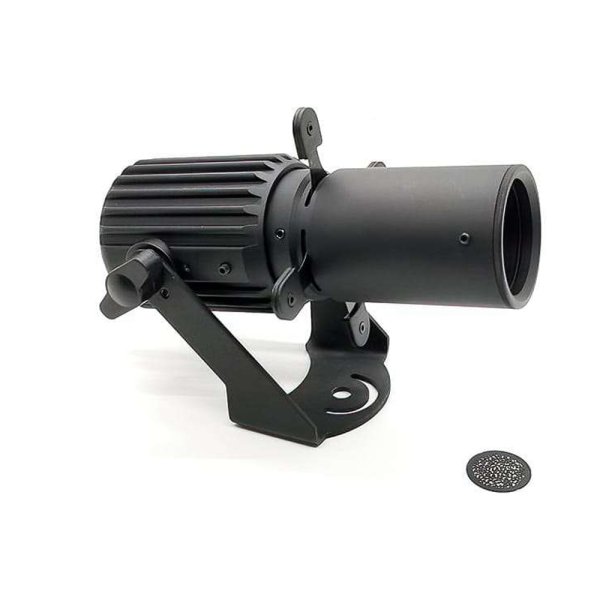

Accepts 19mm steel or glass gobo (up to 2mm thick)
PWM dimming and DMX dimming options
Machined aluminum body in black anodized finish, custom colors available
Track adapter and canopy mount available

APPLICATIONS
Themed entertainment
Dark rides
Restaurants
Museums
Retail
Theater and stage
Hotels
Lobbies and public spaces
Trade shows

仕様

Gobo Size 19mm (3/4")
Max Wattage 9W
Input Voltage 12VDC Only
Current Draw < 750mA @ 12VDC
Beam Angle standard : 25-38°
Wide: 42-60°
Ingress Protection
IP40

Material Anodized aluminum
Certifications UL and CE
Connector
Bare Wires for 12VDC, 2.1mm Barrel Jack Screw terminal adapter included
