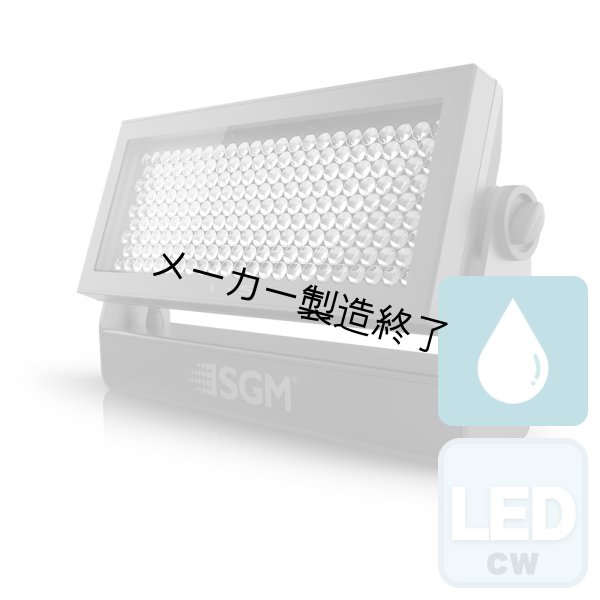

SGM i-5 White（i-5 ホワイト）

The i-5 White is a powerful wash luminaire generating a narrow beam of light in spot position, suitable for any application requiring extremely high output over long distances. It expands the possibilities of the P-5 series by adding more punch and a narrower angle, but maintaining the standards of color consistency and smooth dimming. Unlike the P-series, each individual lens in the i-5 White is related to White LED chips only. These optics have been designed to deliver an impressive amount of white light when illuminating structures over long distances.

仕様

Specification
Optical Data
LED expected lifetime (L70) 50,000 hours
Lightsource 203 x White LEDs (5,700K)
Native lens options 8.5°
Optional filters Medium, I-2/I-5, diffusion in, external (17° angle)
Wide, I-2/I-5, diffusion in, external (42° angle)
Wide, I-2/I-5, diffusion out, external (31° angle)
Elliptical horizontal, I/P, external (10° x 60° angle)
Elliptical vertical, I/P, external (60° x 10° angle)
Optional honeycomb Internal
Photometric
Color temperature 5700K
Efficacy 77 lm/W
Light output all LEDs on 40155 lm
Lumen per kilogram 4512 lm / Kg
Lux @ 10m 12095 lux
Lux @ 3m 112250 lux
Lux @ 5m 48380 lux
Native beam angle(s) 8° (with 8.5° lens)
Native field angle(s) 17°
Physical
Color options Black - RAL 9004
Custom color - Any RAL
White - RAL 9010
Effective Projected Area 1.72 Square ft
IP class IP65
Lens material PE
Material Aluminium
Net dimensions L x H x W 497 x 268 x 122 mm
Net dimensions L x H x W (inches) 19.6 x 10.6 x 4.8 inches
Net weight 8.9 kg (19.6 lbs)
Features
Color calibration Single-unit color
Dimming Smooth fade in, gamma corrected curve
Filters Optional external spread angle filters (requires Accessory Holder)
Strobe Ultra-high-speed strobe effects
Tilt 0 - 190°
Electrical
Electrical protection Overload protection
Input voltage, nominal 208 - 240 VAC; 50 / 60 Hz
Max inrush current 230VAC 45 A
Max power consumption 440 W
Power factor 0.97 PF (230 V)
Power Supply Unit Auto-ranging electronic switch-mode
Standby power consumption 10 W
Programming and Control
16-bit control Dimmer
DMX channels 1, 2 or 4
DMX modes 4
Protocol USITT DMX512A
Wireless DMX (LumenRadio)
RDM ANSI E1.20
Setting and addressing OLED graphical display / 4 buttons
RDM ANSI E1.20
RFID
Standalone mode
Standalone mode Quick Color
Standalone mode programmable via RFID
Up to 24 programmable scenes
Wireless DMX Lumen Radio with RDM
Connections
DMX data in/out 2 IP65 XLR 5-pin cables 0.5m (permanently wired)
Power Power cable 1 meter with bare ends (permanently wired)
Installation
Mounting point 2 x 2 quarter-turn locking points for one or two Omega brackets
Orientation Any
Rigging possibilities Floor stand (included) or hanging (Omega clamps included)
Safety features Bottom mount for safety wire
Minimum distance to combustible materials: 0.3 meter (11 in).
Thermal
Cooling Active, Forced Air, Temperature-regulated
Humidity (max.) 98 %
Temperature range, operating -40°C to 50°C
Temperature range, operating max 50 °C
Temperature range, operating min -40 °C
Temperature range, start-up -20°C to 50°C
Temperature range, storage -40°C to 80°C
Thermal protection Automatic overtemperature protection
Total heat dissipation, max power 1501.3 BTU per hour
Total heat dissipation, standby 34.1 BTU per hour
Included items
Included items Wireless DMX antenna
Mounting bracket (incl. screws)
2 Omega bracket with quater-turn fasteners
Safety instructions and installation quick guide
Conforms To
CE - 2014/30/EU: EMC Directive EN 55015
EN 61547
EN 61000-3-2
EN 61000-3-3
EN 55032
EN 55035
CE - 2014/35/EU: Low Voltage Directive EN 60598-1
EN 60598-2-17
EN 62471
EN 60529
RoHS2 Directive 2011/65/EU
UL UL Std. 1573
Certified To
CSA CSA-E598-2-17-98, Ed: 1
CSA E60598-1, Ed: 3
