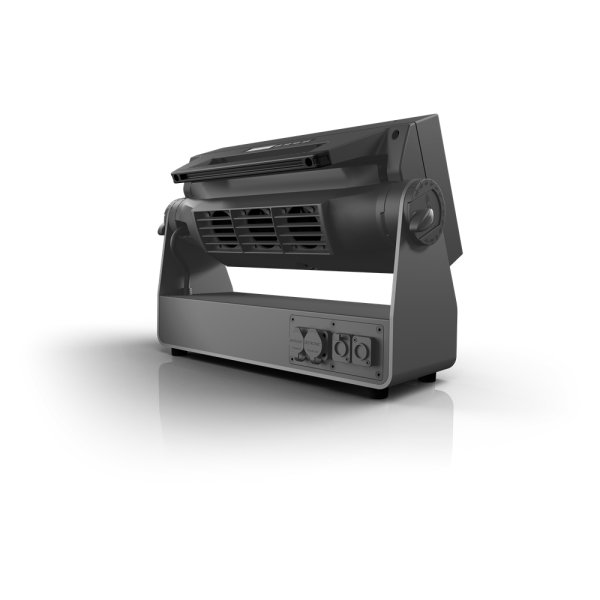

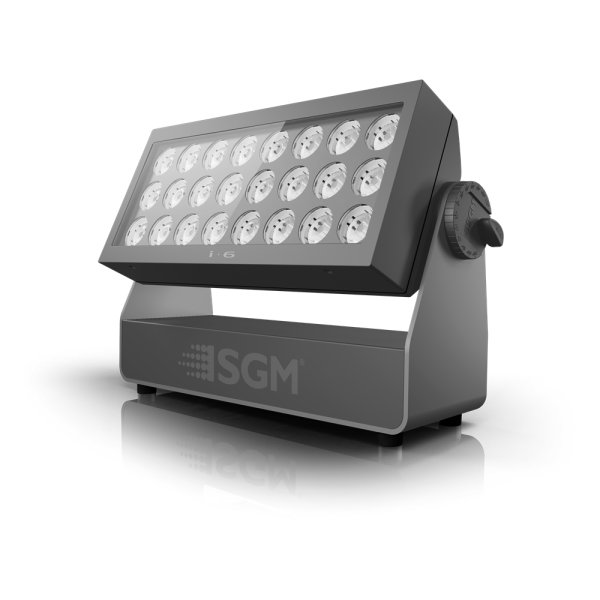

SGM i-6

The i-6 is a narrow-beam wash which provides long-throw performance. Its tight beam can deliver a remarkable amount of light and powerful colors exactly where needed, reaching the furthest parts of your installation, while avoiding light pollution. It is a single-head, compact LED luminaire that establishes a new benchmark for wall washing and accent lighting, thanks to its advanced optical design.

仕様

Specification
Optical Data
LED expected lifetime (L70) 50,000 hours
Lightsource 24 LEDs total, 5 Red, 5 Green, 5 Blue, 9 White
Native lens options 2.3°
Photometric
Color temperature range 2000K - 10000K
Efficacy 10 lm/W
Light output all LEDs on 2615 lm
Lumen per kilogram 174 lm / Kg
Lux @ 10m 14176 lux
Lux @ 3m 157516 lux
Lux @ 5m 56706 lux
Native beam angle(s) 2.3°
Native field angle(s) 4.2°
Preliminary light output all LEDs on 2615 lm
Physical
Color options Black - RAL 9004
Custom color - Any RAL
White - RAL 9010
Effective Projected Area 1.79 Square ft
IK rating IK06
IP class IP66
Lens material PMMA
Material Aluminium
PC/ASA
Rubber
Steel
Tempered Glass
Net dimensions L x H x W 497 x 166 x 305 mm
Net dimensions L x H x W (inches) 19.6 x 6.5 x 12 inches
Net weight 15 kg (33.1 lbs)
Features
Color calibration SGM proprietary, full color calibration
Dehumidifier Base / Head
Dimming 12 DMX-controllable curves (smooth fade in / fast response / low-end extended range)
Emulation mode / effect Tungsten response emulation
Color Filter Emulation
Built-in color presets, display selectable
Other Studio DMX mode(s)
Versapath color engine
LED frequency control over DMX
Tilt 209°
Tilt locking system Locking system with angle indicator
Electrical
Electrical protection Overload protection with automatic recover
Input voltage, nominal 100 - 277 VAC; 50 / 60 Hz
Max inrush current 230VAC 70 A
Max power consumption 250 W
Max power thru @ 100 V 17 A
Max power thru @ 230 V 14 A
Power factor 0.92 PF (230 V)
Power Supply Unit Inbuilt IP 67 Auto-ranging electronic switch-mode
Standby power consumption 7 W
Programming and Control
16-bit control Dimmer, Red, Green, Blue, White
DMX channels 3, 4, 6, 8, 10, 22
DMX modes 6
Protocol CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S
USITT DMX512A
RDM ANSI E1.20
Setting and addressing OLED graphical display / 4 buttons
RDM ANSI E1.20
Standalone mode Quick Color
3 programs with up to 24 scenes
Wireless DMX Lumen Radio with RDM
Connections
DMX data in/out IP66 XLR 5-pin connector, Female
IP66 XLR 5-pin connector, Male
Power Power input connector & link-thru
Installation
Mounting point 3 x two quarter-turn locking points for two or three Omega Brackets
Orientation Any
Rigging possibilities Hanging (Omega Bracket included) or ceiling/wall mount (optional)
Safety features Bottom mount for safety wire
Minimum distance to combustible materials: 0.3 meter (11 in).
Thermal
Cooling Active, Forced Air, Temperature-regulated
Humidity (max.) 98 %
Temperature range, operating -40°C to 50°C
Temperature range, operating max 50 °C
Temperature range, operating min -40 °C
Temperature range, start-up -20°C to 50°C
Temperature range, storage -40°C to 80°C
Thermal protection Automatic overtemperature protection
Total heat dissipation, max power 853 BTU per hour
Total heat dissipation, standby 23.9 BTU per hour
Included items
Included items 2 Omega bracket with quater-turn fasteners
2 m IP66 power cable pigtail
Safety instructions and installation quick guide
Conforms To
CE - 2014/30/EU: EMC Directive EN 55015
EN 61547
EN 61000-3-2
EN 61000-3-3
EN 55032
EN 55035
CE - 2014/35/EU: Low Voltage Directive EN 60598-1
EN 60598-2-17
EN 62471
EN 60529
RoHS2 Directive 2011/65/EU
UL UL Std. 1573
Certified To
CSA CSA Std. C22.2 No. 166
