SGM P-3 Vision（P-3 ビジョン）

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

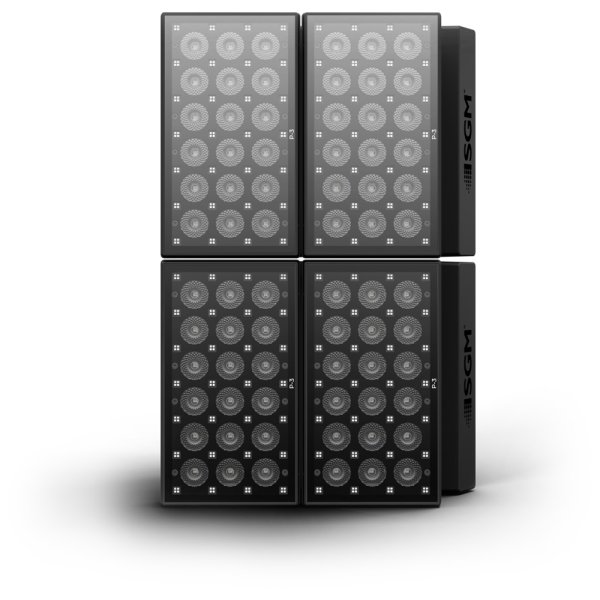

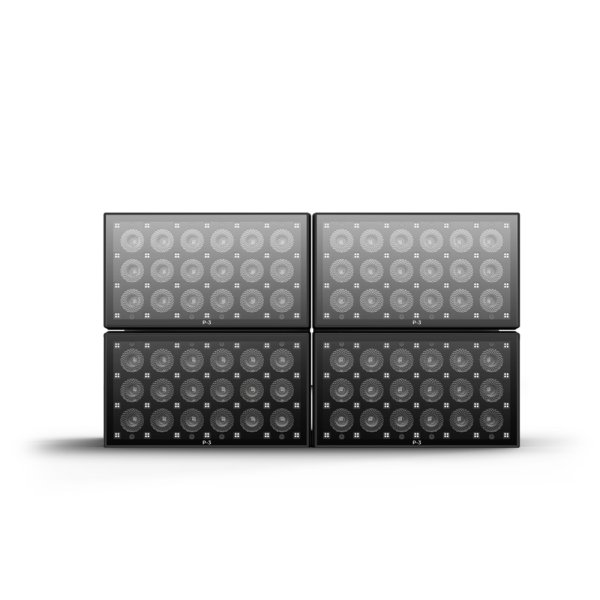

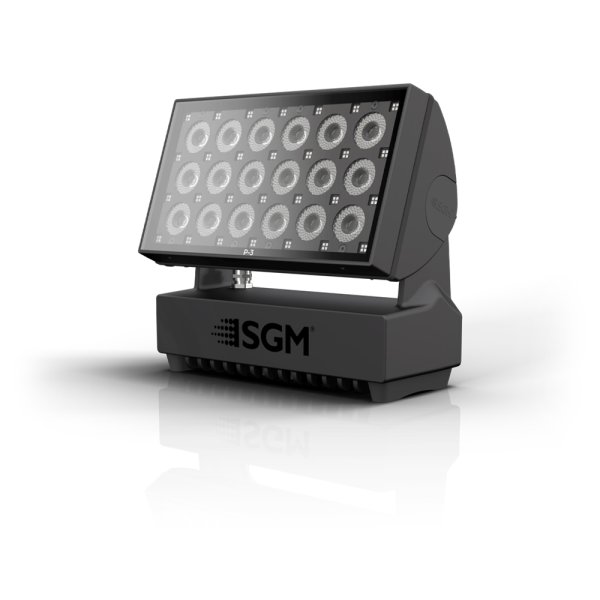

The P-3 Vision is the first fixture released in the new 3 series platform of SGM Light fixtures. Incorporating a 42mm pitch LED matrix and a >12,700 lumen illumination LED engine on the same surface, this compact powerhouse can be arrayed in grids, used in LED screen borders, arranged in LED extensions, or used as stage outlines. All the while providing an extended canvas for video, and a punchy color strobe in one.

仕様

Specification
Optical Data
LED expected lifetime (L70) 50,000 hours
Lightsource 28 x RGB Clusters (112 total RGB LEDs)
18 x 15W RGBW LEDs
Pixel size 6 x 6 mm Quad LED Pixel Clusters
Photometric
Native beam angle(s) 10° (with 10° lens)
25° (with 25° lens)
35° (with 35° lens)
Preliminary light output all LEDs on 12700 lm
Physical
Color options Black - RAL 9004
White - RAL 9010
Corrosion class C5 (ISO 12944:2018)
IK rating IK09
IP class IP66
Lens material Tempered glass front
Material Aluminium
PC/ASA
Steel
Net dimensions L x H x W 290 x 252 x 124 mm
Net dimensions L x H x W (inches) 11.4 x 9.9 x 4.9 inches
Net weight 8.3 kg (18.3 lbs)
Vibration Rating 3G
Features
Addressable pixels 3 (Wash) + 28 (Vision)
Color calibration SGM proprietary with Dynamic Drive
Dehumidifier Head
Remote monitoring Yes (Real Time)
Tilt locking system Locking system with angle indicator
View angle 110°
Electrical
Electrical protection Overload protection with automatic recover
Input voltage, nominal 115 - 277 VAC; 50 / 60 Hz
Max inrush current 230VAC 60 A
Max power consumption 360 W
Max power thru @ 100 V 16 A
Max power thru @ 230 V 14 A
Power factor 0.99 PF (230 V)
Power Supply Unit High-efficiency electronic switch-mode
Standby power consumption 6 W
Programming and Control
16-bit control Dimmer, Red, Green, Blue, White, Pixels
Cabled DMX 5 pin XLR input/output
Data communication 100 Mb
DMX channels 7 - 128
DMX modes 9
Protocol CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S
USITT DMX512A
RDM ANSI E1.20
Art-Net (up to 120 Hz)
sACN
Setting and addressing OLED graphical display / 4 buttons
RDM ANSI E1.20
Standalone mode Quick Color
Wireless DMX Lumen Radio with RDM

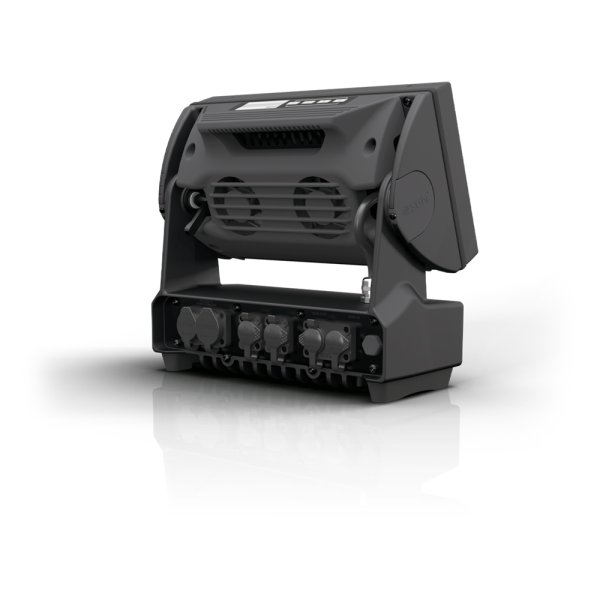

Connections
DMX data in/out IP66 XLR 5-pin connector, Female
IP66 XLR 5-pin connector, Male
Ethernet Connections IP66 RJ45 Locking Chassis Mount Connections
Power Power input connector & link-thru
Installation
Mounting point 2 quarter-turn locking points for one Omega bracket
Orientation Any
Safety features Bottom mount for safety wire
Thermal
Cooling Active, Forced Air, Temperature-regulated
Humidity (max.) 98 %
Temperature range, operating -40°C to 50°C
Temperature range, operating max 50 °C
Temperature range, operating min -40 °C
Temperature range, start-up -20°C to 50°C
Temperature range, storage -40°C to 80°C
Total heat dissipation, max power 1228.3 BTU per hour
Total heat dissipation, standby 20.5 BTU per hour
Included items
Included items 2 m IP66 power cable pigtail
1 Omega bracket with quarter-turn fasteners
Conforms To
CE - 2014/30/EU: EMC Directive EN 55015
EN 61547
EN 61000-3-2
EN 61000-3-3
EN 55032
EN 55035
CE - 2014/35/EU: Low Voltage Directive EN 60598-1
EN 60598-2-17
EN 62471
EN 60529
RoHS2 Directive 2011/65/EU
UL UL Std. 1573
Certified To
CSA CSA-E598-2-17-98, Ed: 1
CSA E60598-1, Ed: 3
