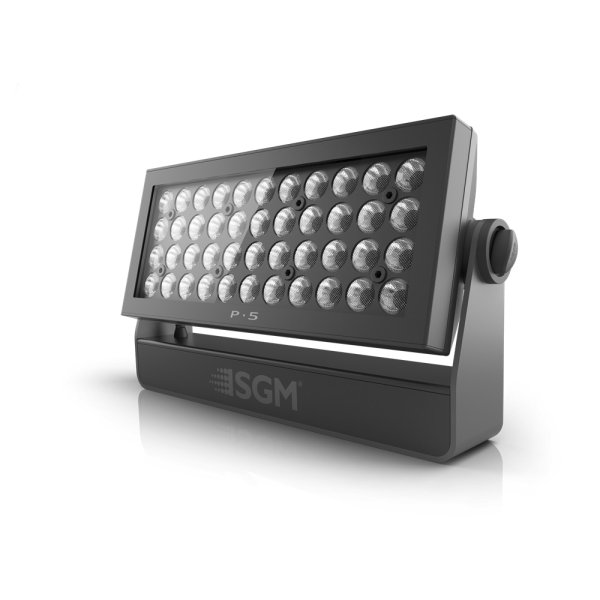

SGM P-5

The P-5 is the most well-known and reputed IP65 LED wash in the lighting industry. It has created new standards of color consistency, even coverage, light output, and smooth dynamic color balance. The P-5 employs 16bit dimming performance with no color shift, it is completely upgradeable through firmware updates, and it offers a full variety of beam angles for medium-to-longer throw applications via precise, interchangeable lenses. Its unique light projection and color mixing has made the P-5 the standard reference for lighting designers all around the world.

仕様

Specification
Optical Data
LED expected lifetime (L70) 50,000 hours
Lightsource 44 x high-power 10W RGBW LEDs
Native lens options 15°
21°
43°
Photometric
Average CRI (CTC) 86
Color temperature range 2000K - 10000K
Efficacy 44 lm/W
Light output all LEDs on 20031 lm
Light output blue 1353 lm
Light output green 5806 lm
Light output red 4725 lm
Lumen per kilogram 2251 lm / Kg
Lux @ 10m 1993 lux
Lux @ 3m 22142 lux
Lux @ 5m 7971 lux
Native beam angle(s) 14° (with 15° lens)
26° (with 21° lens)
35° (with 43° lens)
Native field angle(s) 76° (with 43° lens)
55° (with 21° lens)
30° (with 15° lens)
Physical
Color options Black - RAL 9004
Custom color - Any RAL
White - RAL 9010
Effective Projected Area 1.72 Square ft

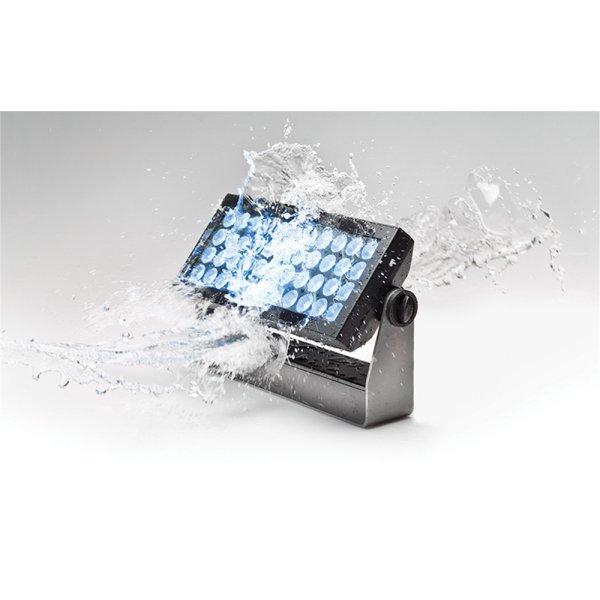

IP class IP65
Lens material PE
Material Aluminium
Net dimensions L x H x W 497 x 268 x 122 mm
Net dimensions L x H x W (inches) 19.6 x 10.6 x 4.8 inches
Net weight 8.9 kg (19.6 lbs)
Features
Color calibration SGM proprietary, full color calibration
Dimming 2 Smooth fade in, DMX-controllable curves: gamma corrected, and linear
Filters Optional external spread angle filters (requires Accessory Holder)
Other LED frequency control, display selectable
Strobe Ultra-high-speed strobe effects
Tilt 0 - 190°
Electrical
Electrical protection Overload protection
Input voltage, nominal 208 - 240 VAC; 50 / 60 Hz
Max inrush current 230VAC 45 A
Max power consumption 450 W
Power factor 0.98 PF (230 V)
Power Supply Unit Auto-ranging electronic switch-mode
Standby power consumption 8 W
Programming and Control
16-bit control Dimmer, Red, Green, Blue, White
Cabled DMX 5 pin XLR input/output
DMX channels 3, 4, 6, 8, 9 or 10
DMX modes 7
Protocol USITT DMX512A
Wireless DMX (LumenRadio)
RDM ANSI E1.20
Setting and addressing OLED graphical display / 4 buttons
RDM ANSI E1.20
RFID
Standalone mode
Standalone mode Quick Color
Standalone mode programmable via RFID
Up to 24 programmable scenes
Wireless DMX Lumen Radio with RDM
Connections
DMX data in/out 2 IP65 XLR 5-pin cables 0.5m (permanently wired)
Power Power cable 1 meter with bare ends (permanently wired)
Installation
Mounting point 2 x 2 quarter-turn locking points for one or two Omega brackets
Orientation Any
Rigging possibilities Floor stand (included) or hanging (Omega clamps included)
Safety features Bottom mount for safety wire
Minimum distance to combustible materials: 0.3 meter (11 in).
Thermal

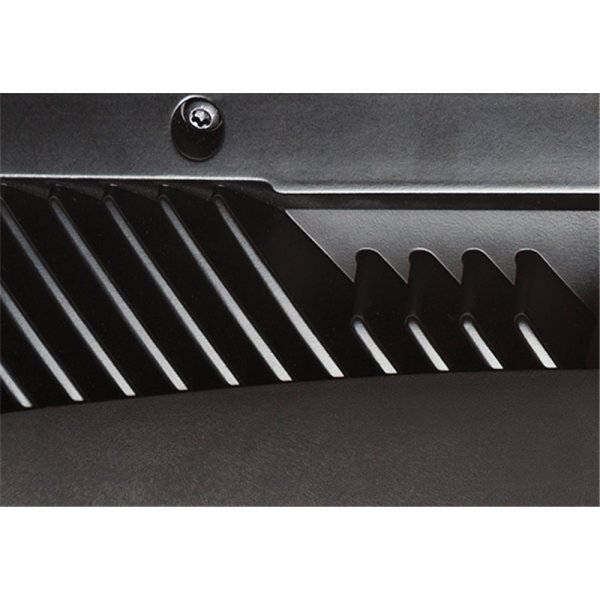

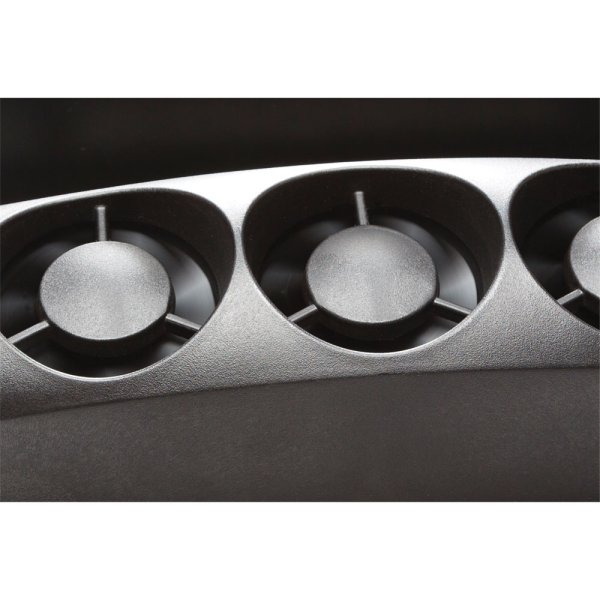

Cooling Active, Forced Air, Temperature-regulated
Humidity (max.) 98 %
Temperature range, operating -40°C to 50°C
Temperature range, operating max 50 °C
Temperature range, operating min -40 °C
Temperature range, start-up -20°C to 50°C
Temperature range, storage -40°C to 80°C
Thermal protection Automatic overtemperature protection
Total heat dissipation, max power 1535.4 BTU per hour
Total heat dissipation, standby 27.3 BTU per hour
Included items
Included items Wireless DMX antenna
Mounting bracket (incl. screws)
2 Omega bracket with quater-turn fasteners
Safety instructions and installation quick guide
Conforms To
CE - 2014/30/EU: EMC Directive EN 55015
EN 61547
EN 61000-3-2
EN 61000-3-3
EN 55032
EN 55035
CE - 2014/35/EU: Low Voltage Directive EN 60598-1
EN 60598-2-17
EN 62471
EN 60529
RoHS2 Directive 2011/65/EU
UL UL Std. 1573
Certified To
CSA CSA Std. C22.2 No. 166
