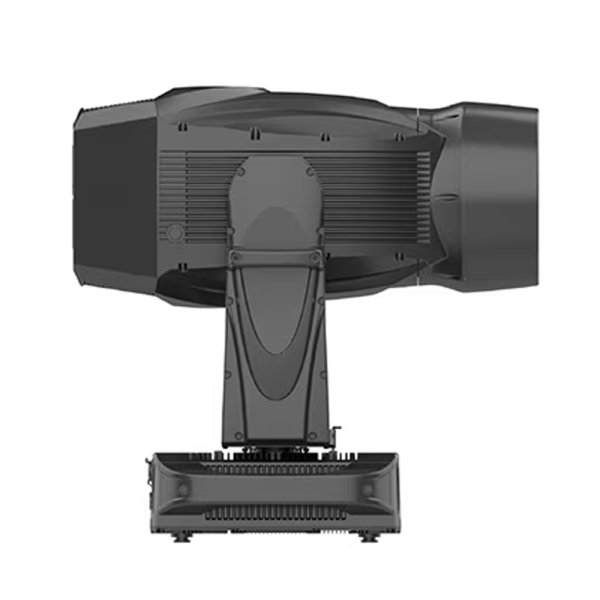

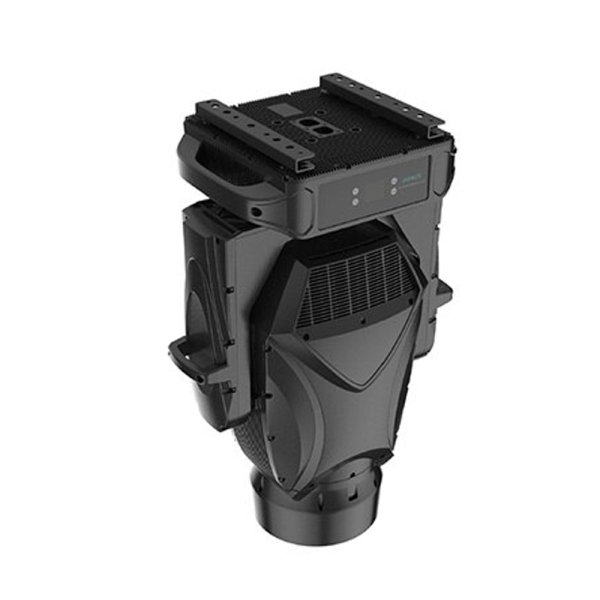

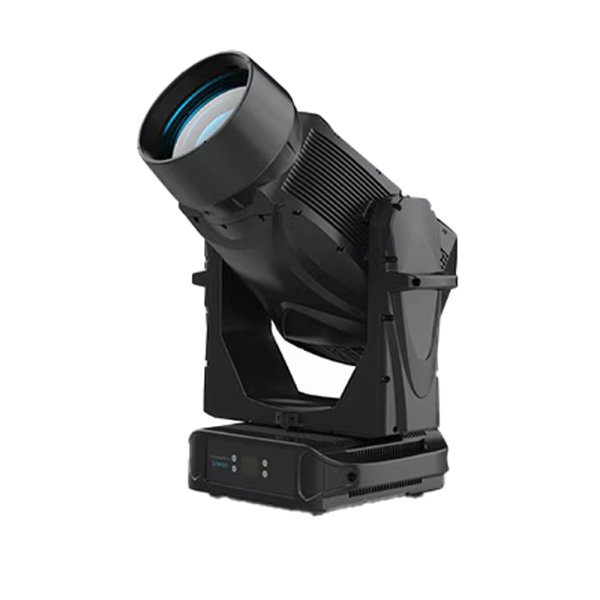

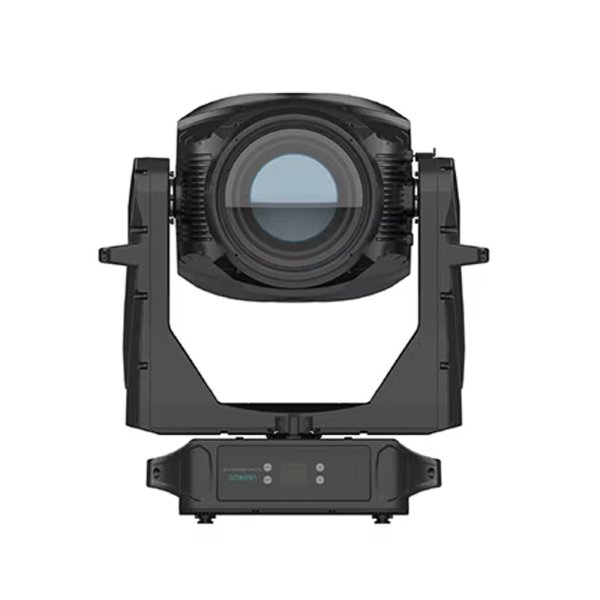

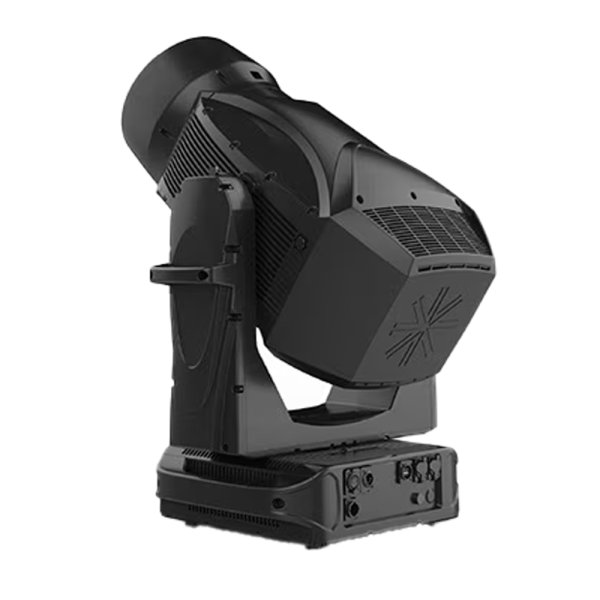

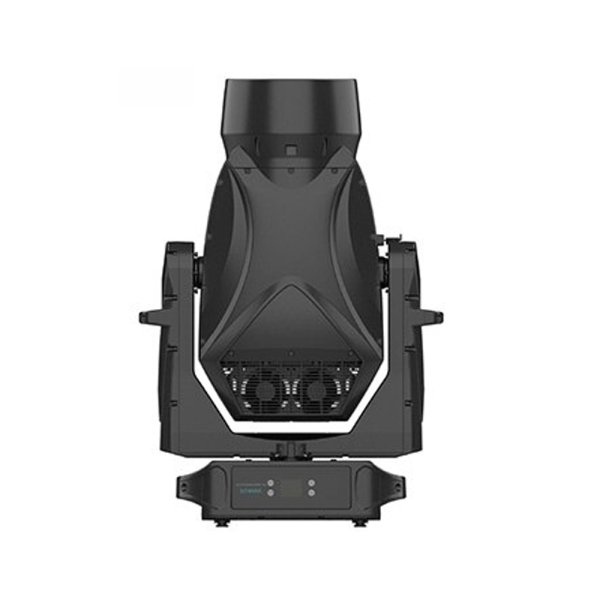

Vari-Lite VL3600 LT PROFILE IP Touring - White（VL3600 LT プロファイル IP ツーリング 白）

特徴

Long throw production profile luminaire with high levels of illumination (>50,000 Lux @ 10m / 4722fc @ 32ft.) – high-output key lighting in the largest of venues.
Optimized long throw optical system offering a 3° to 42° zoom range – tailored zoom for key lighting at distance.
Large 220mm front lens and matched feature set to the industry-leading VL3600 Profile IP – long-distance key lighting or high-impact effect lighting with consistent look and feel.
IP65 outdoor rating – outstanding performance no matter the weather.
CMY+CTO graduated color wheel mixing system – Provides a wide color mixing spectrum with a homogenization of color that completely fills the front lens at all times, improving direct view applications on stage or on camera.
Color quality enhancement control – dedicated color enhancement wheel, which include CRI boost filter and a selection of minus green.
Touring and Installations versions available. – Touring version with chassis mounted IP65 Power and DMX connectors. Installation version fitted with IP65 inline connectors.

Exclusive VL*FX animation wheel system – Give users access to 3 different animation effects wheels that can create dynamic projected and mid-air effects on their own or layered with gobos and prisms.
V*Track Calibration* System – Size and power with none of the unwanted movement. Limit movement during calibration and reduce start up time. Reduce risk of the fixture hitting set objects or shaking the rig.
Wireless DMX using Lumen Radio CRMX TimoTwo™ – cable-free connection of your DMX / RDM data to the fixture fitted as standard. Dynamic wireless system that ensures an improved cognitive coexistence across wireless networks.
Full set of fixture features to meet the needs of the most demanding show – Two Gobo wheels with interchanging gobos, four blade full wipe framing system with 120° of rotation, Iris and dual prism system which includes both an effects and scenic prism.

*Patent pending

仕様

Due to continuous improvements and innovations, specifications may change without notice.
Source
LED System Monochromatic Light Engine
Source Max Power Consumption 1000 W
Source Lumens 85000
Source CCT 7500 K
LED Refresh Rate 500Hz to 25KHz
Dimming Electronic 16-bit
Dimmer Curves Square Law (Default), Linear, S -Curve
Dimmer Control Option Dimmer Snap On/Off
On reduces auto dimmer smoothing
Strobe Speed 0 - 30Hz
Strobe Modes Continuous, Random, Random Sync

Optical Performance
Lens Size 220 mm (8.7 in)
Zoom Range 3 - 42°
Zoom Control Motorized 16-Bit
Focus Motorized 16-Bit Control
Focus Track on/off
Output Lumens Standard - 45,000
CRI Boost - 36,000
Output CCT 7500 K
CRI RA Standard - 72
CRI Boost - 93
TM30 Standard - Rf 68 / Rg 93
CRI Boost - Rf 87 / Rg 102

Color System
Subtractive Color Mixing CMY Graduated Glass Wheels
Color Mixing Control CMY 8-bit
Color Mixing Control Color Snap On/Off
Option
On reduces auto smoothing color to create faster color
changes
Variable CTO 7200 to 3200 K
Fixed Color Wheel 6 Colors + Open
Fixed Color Wheel 4 Colors corrections + Open
Color Wheel Effects Split Colors, Color Wheel Spin, and Shake

Imaging
Framing Shutters 4 Blade - Full Wipe
+/-60° rotation
Effects Prism 3 Facet Round
Scenic Prism 4 Facet Linear
Prism Features Index/Rotation, MegaStep, Dual Overlay
Beam Softening Variable control - Light Frost
Beam Softening Variable control - Medium Frost
Iris 16 leaf iris open to 80% closing, Iris pulse effect

Electrical
Max output Power
Consumption 1475 W
Power Connect - TrueOne Compatible Input | Installation -
1m tails
*Power cable not included - input connector only
Input Voltage 120-240 VAC, 50 / 60 Hz

Data
Supported Protocols DMX (RDM), ArtNet
DMX Modes
16-Bit Enhanced 54 Channels
16-Bit 49 Channels
Data Connections
Data Connections 5-pin XLR, RJ45, Wireless DMX (Lumen Radio), USB Data
FollowSpot Mode Manual FollowSpot Operation

Noise Level / Fan Control(Base Level 30 dB)
Fan Mode Continuous (On) / Auto Ramping
Fan Level Preset Standard, Studio, Whisper
Cooling System Type Hybrid sealed liquid and forced air system

Movement
Pan Angle 540°
Pan Speed 4.54 s
Tilt Angle 260°
Tilt Speed 3.50 s
Calibration System V*Track Calibration

Mounting
Hanging Type 2 x VL Hook Rails L
Hanging Centers 700.0 mm (30.0 in)
Mounting/Hanging Hanging - Floor - Side
Orientation *See user manual for side hang guidance and restrictions
Secondary Safety Wire
Point
1 x Safety point located on underside of upper
enclosure
Safety wire not included

Photometrics and IES Files
3° Beam @ 5m / 16.4 ft 203,300 lux (18,887 fc)
3° Beam @ 10m / 32.8 ft 50,825 lux (4,722 fc)
42° Beam @ 5 m / 16.4 ft 4,138 lux (384 fc)
42° Beam @ 10 m / 32.8 ft 1,035 lux (96 fc)
For IES files and photometric reports, please refer to the product page:
https://www.vari-lite.com/global/products/vl3600-lt-profile-ip
