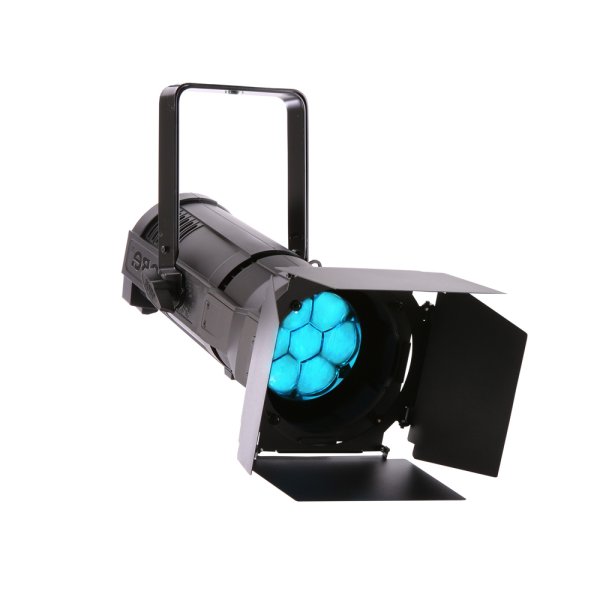

Robe Parfect 150 FWQ RGBW（パーフェクト 150 FWQ RGBW）

Professional luminaire in affordable package made in Europe. ParFect 150 FWQ is a static fixture with a fresnel wash type of light output.

The edge of the beam is smoothly diffused at any beam angle of the remotely controllable zoom ranging from 3,8° to 60°. It has perfect colour mixing, including both CMY & RGBW colour control, 18-bit dimming, Tungsten emulation, and selectable & variable colour temperatures of pure and crispy whites. The compact and lightweight moulded composite unit includes a combined hanging bracket and floor stand. Exceptionally quiet – ParFect 150 is a perfect solution for theatres, concert halls, TV´s and any kind of installation.

特徴

Light source
7x 40W RGBW multichips

Light output
2.850 lm, 8.190 lx @ 5 m

Zoom range
3,8° – 60°

仕様

Technical Specification
Source
• Light source type: 7x 40W RGBW multichips
• LED life expectancy: min. 50.000 hours
• Typical lumen maintenance: L70/B50 @ 50.000 hours
Optical system
• Robe’s proprietary optical design
• High-efficiency zoom optical system, ratio 15,5:1
• Zoom range: 3.8° - 60°
• Diffusion filter imbedded
• Fixture total lumen output:
• Illuminance: 8.190 lx @ 5 m
• (RLCT™) Innovative lens coating technology (Patent pending)
Dynamic Effects and Features
• Colour mixing mode RGBW or CMY
• Variable CTO: 2.700K - 8.000K
• Virtual Colour Wheel: with 66 preset swatches
• Tungsten lamp effect at whites: 2.700K and 3.200K (red shift and thermal delay)
• Motorized exceptionally quiet zoom
• Pre-programmed random strobe & pulse effects
• High resolution electronic dimming: 0 - 100%
Control and programming
• Setting & Addressing: two-row LCD display & 4 control buttons, stand-alone operation with 3 editable programs
(each up to 25 steps)
• Protocols: USITT DMX-512, RDM
• Wireless CRMX™ technology from Lumen Radio - on request
• DMX Protocol modes: 2
• Control channels: 17, 11
• RGBW / CMY: 8 or 16 bit
• Zoom: 8 or 16 bit
• Dimmer: 8 or 16 bit (internal 18 bit)
Thermal specification
• Maximum ambient temperature: 40°C (104°F)
• Maximum surface temperature: 80°C (176°F)
• Minimum operating temperature: -5°C (23°F)
Electrical specification and connections
• Power supply: Electronic auto-ranging
• Input voltage range: 100-240 V, 50/60 Hz
• Power consumption: Max. 220 W
• Power connector in/out: Neutrik powerCON in/out
• DMX and RDM data in/out: Locking 5-pin XLR
Approvals
• CE Compliant
• cETLus Compliant
Mechanical specification
• Height: 192 mm (7.6")
• Width: 240 mm (9.45")
• Depth: 392 mm (15.43") without hanging bracket / 498 mm (19.6") with hanging bracket
• Weight: 5 kg (11 lbs)
• Ingress protection rating: IP20
Rigging
• Mounting horizontally or vertically via mounting yoke
• Universal operating position
• Safety cable attachment point
Included items
• Accesory frame adaptor
• User Manual
Optional accessories
• Wireless DMX external module: 10980127
• Gel frame: 10980372
• Clear lens cover: 10980604
• Barndoor module: 10980349
• EggCrate: 10980346
• HALO frame adaptor: 10980348
• Doughty Trigger Clamp: 17030386
• Safety wire 36 kg: 99011963
• Mains Cable powerCON In/Schuko 2m: 13051724
• Mains Cable powerCON In/CEE 16A 2m: 13051725
• Mains Cable powerCON In/US 2m: 13051726
• Mains Cable powerCON In/open ended 2m: 13051731
• Daisy Chain powerCON In/Out EU 2m: 13051727
• Daisy Chain powerCON In/Out US 2m: 13051728
• Single Top Loader Case: 10120217-02
• Six Pack Top Loader Case: 10120218-02
• Eight Pack Top Loader Case: 10120219-02
• Dual Foam Shell: 20020301-01
Legal
• ParFect 150™ is a Trademark of Robe lighting s. r. o.
• ParFect 150™ FWQ is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents
