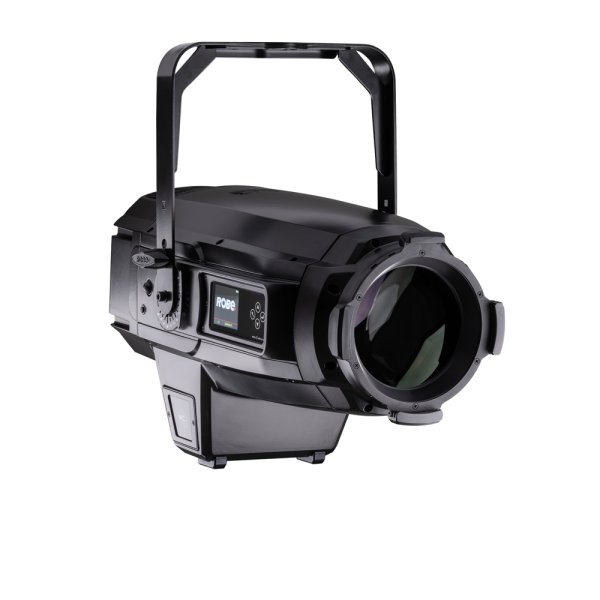

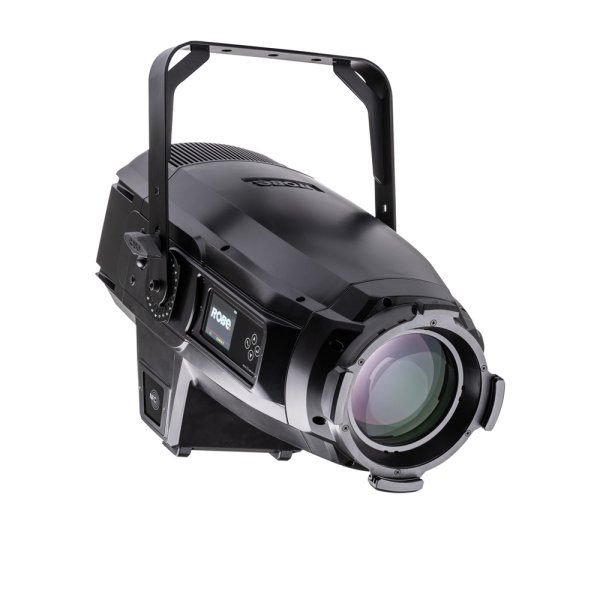

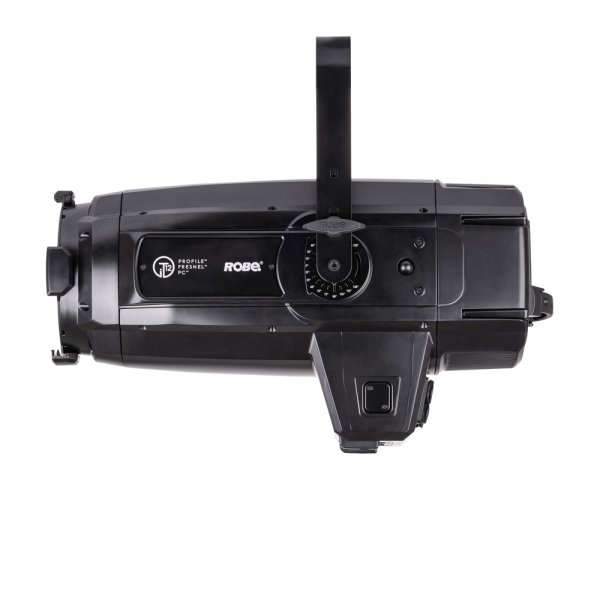

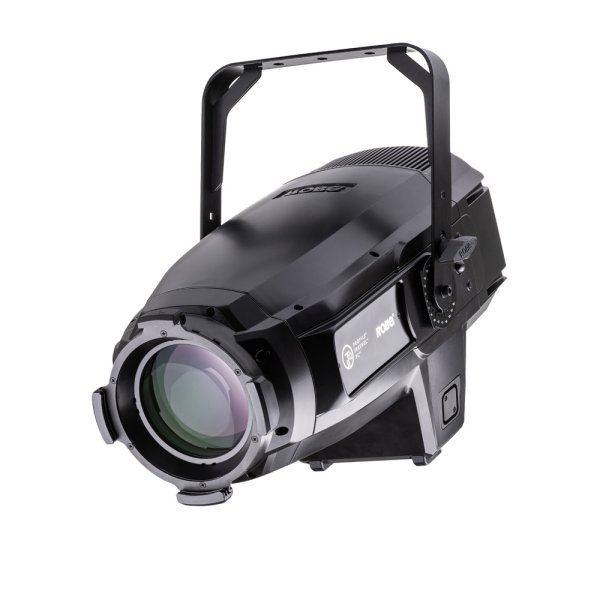

Robe iT12 Profile（ iT12 プロファイル）

From Classic framed area lighting to complicated, sequenced, animated multi-gobo projections, the all-environments iT12 Profile™ has all the tools, features, controls and light qualities to deliver outstanding static profile projector performance, whatever the environment can throw at it.

特徴

Light source
iSE-MSL-TE™ 500W LED ENGINE

Light output
up to 13.600 lm, 35.740 lx @ 5m, Cpulse™ special flicker free management for HD and UHD cameras, ready for 8K and 16K

Zoom range
5.5°- 50°

Effects
Frost, Optional drop-in module with Framing Shutters and Iris, Optional drop-in module with Static gobo wheel, Rotating gobo wheel and Animation Wheel

仕様

Technical Specification
Source
• Light source type: iSE-MSL-TE™ 500W LED Engine (Patented)
• LED life expectancy: min. 40.000 hours
• Colour rendition: CRI: 95, CRI R9: 96, TM30-18 Rf: 92, TM30-18 Rg: 106, TLCI: 91
• Typical lumen maintenance: L70/B50 @ 40.000 hours
• Light source warranty: 4 years or 20.000 hours
Optical system
• Robe’s proprietary optical design
• High-efficiency zoom optical system, ratio 9:1
• Zoom range: 5.5° - 50°
• Fixture total lumen output:
• Illuminance: 35.740lx @ 5 m
• parCoat™ (particle resistant coating) unique hydrophobic and oleophobic coating helps prevent water, dirt, dust,
haze and smoke from adhering to the output lens
Main features
• Factory calibrated whites and colours via the new RCC™ (Robe Colour Calibration) system, automatic or on-call selfre-calibration of the LED engine without the use of any external tool (Patent pending)
• Colour mixing: CMY/RGB or RGBAL
• White light: Variable CCT 2.700K - 8.000K
• DataSwatch™ filters: pre-programmed 237 colours and tones including most used whites 2.700K, 3.200K, 4.200K,
5.600K
• Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4200K
(red shift and thermal delay)
• + - Green correction function
• Adjustable CRI: from 80 to 95+
• Optional drop-in framing and iris module: Patented Plano4™ framing shutters module with 4 individually
positionable blades plus rotation of the complete frame system + - 60°
• Optional drop-in gobo module: Static, rotating gobo wheel and animation wheel
• Static gobo wheel: 9 static, replaceable breakup gobos + open, all gobos specially selected for theatrical and TV
productions, patented slot & lock system
• Rotating gobo wheel: 7 rotating, indexable and replaceable breakup and aerial gobos + open, patented slot & lock
system
• Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions
at variable speed
Iris: Motorized, stepless, pulse effects up to 3 Hz (with optional drop-in framing and iris module)
• MagFrost™ - magnetic paddle fast change system providing exchangeable frost containing as standard a medium 5°
for even wash
• Hot-Spot: from flat field to 6:1 hot-spot (optional)
• Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects
• High resolution electronic dimming: 0 - 100%
• L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black
• Dimmer profile selection: Linear, Square law
• Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K
• Extremely quiet operation suitable for all types of production in Theatre and TV
• AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the optical
elements. This increases the overall performance, light quality and time between routine cleaning and maintenance.
• BARS™ - Brake Attribute Retention System (Patented) applied for Focus and Zoom stepper motors
• POLAR+™ for power saving and instant operation in extremely cold weather conditions
Control and programming
• Setting & Addressing: ROBE Navigation System 2 (RNS2)
• Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation
memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser
for easy fault finding, NFC app controller
• Protocols:
• REAP™ - Robe Ethernet Access Portal
• Wireless CRMX™ technology from Lumen Radio
• Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to
automatically maintain network connectivity
• RAINS™ (Robe Automatic Ingress Neutralization System) manages humidity, temperature and pressure control
using an active monitoring system to automatically remove any moisture detected within the fixture and provides
constant monitoring to ensure peak performance
• DMX Protocol modes: 8
• Control channels: 24, 28, 35, 39, 32, 36, 43, 47
• Variable CCT: 8 bit
• + - Green correction: 8 bit
• Colour mixing: 8 or 16 bit (internal 18 bit)
• Framing shutters module movement & rotation: 8 bit
• Gobo indexing & rotation: 8 or 16 bit
• Animation wheel: 8 bit
• Animation wheel rotation: 8 bit
• Iris: 8 or 16 bit
• Frost: 8 bit
• Zoom: 8 or 16 bit
Focus: 8 or 16 bit
• Dimmer: 8 or 16 bit (internal 18 bit)
Rotating gobos
• 7x rotating glass gobos: (with optional drop-in gobo and animation module)
• Outside diameter: 26.8 mm
• Image diameter: 23.5 mm
• Thickness: 1.1 mm
• Max. thickness: 4.0 mm
• High temperature borofloat or better glass
• Patented slot & lock system for easy replacement of gobo
Static gobos
• 9x static glass gobos: (with optional drop-in gobo and animation module)
• Outside diameter: 26.8 mm
• Image diameter: 23.5 mm
• Thickness: 1.1 mm
• Max. thickness: 4.0 mm
• High temperature borofloat or better glass
Effect wheel
• Single animation wheel: (with optional drop-in gobo and animation module)
• Material: Aluminium
• Can be used alone or in combination with rotating gobos
• Diameter: 109 mm
• Rotating in both directions at variable speed
Framing shutters system
• Patented Plano4™ framing shutters module (with optional drop-in framing and iris module)
• Shutters: 4 Blades, each with separate movement and +- 25° rotation control
• Movement: Smooth with variable speed, ultrafast blade movements for creating mid-air effects
• Pre-programmed: Shape and blade sequences
• Rotation: +- 60° of the complete framing system
Thermal specification
• Maximum ambient temperature: 50 °C (122°F)
• Maximum surface temperature: 90 °C (176 °F)
• Minimum operating temperature: -50 °C (-58 °F)
Total heat dissipation: max. 1125 BTU/h (calculated)

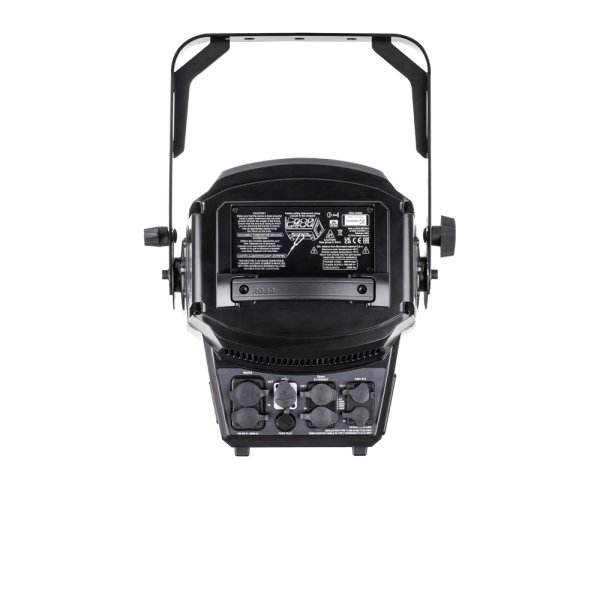

Electrical specification and connections
• Power supply: Electronic auto-ranging
• Input voltage range: 100-240 V, 50/60 Hz
• Power consumption: Max. 600 W
• Power connector in/out: IP 65 Neutrik powerCON TRUE1 in/out
• DMX and RDM data in/out: IP65 Locking 5-pin XLR connectors
• Ethernet port in/out: IP65 RJ45 for Embedded Epass™ switch 10/100 Mbps
Approvals
• CE Compliant
• cETLus Compliant
Mechanical specification
• Height: 534 mm (21.02") with yoke
• Width: 385 mm (15.51")
• Depth: 653 mm (26.18")
• Weight:
• Ingress protection rating: IP65
Rigging
• Mounting horizontally or vertically via mounting yoke
• Mounting points: M12 bolt
• Safety cable attachment point
Included items
• User Manual
• Gel frame adaptor
• Power cord including powerCON TRUE1 In connector:
• 27 kg (59.52 lbs) fully equipped
• 24.7 kg (54.45 lbs) with optional drop-in gobo animation module
• 25.3 kg (55.77 lbs) with optional framing shutters module
• US:13052277-01
• EU:13052276-01
Optional accessories
• iT12 iSE-MSL-TE™ 500W LED Engine: 14080098
• Doughty Trigger Clamp
• Safety wire 36 kg: 99011963
• Floor stand: 10981014
• Frost 0.5° (exchange) assembled: 10980583
• Frost 3.5° (exchange) assembled: 10980668
• Frost 10° (exchange) assembled: 10980497
• Frost 20° (exchange) assembled: 10980574
• Frost 30° (exchange) assembled: 10980584
• iT12 Fresnel lens module: 10981029
• iT12 PC lens module: 10981028
• Drop-in gobo and animation wheel module: 10980968
• Drop-in framing and iris module: 10980969
• Drop-in module open gate: 10981008
• Hot-spot lens: 10980666
• Single Top Loader Case: 10120323
• Single Top Loader Trolley case: 10120324
• Dual Top Loader Case: 10120325
• Foam Shell: 20020468
Legal
• iT12 Profile™ is a Trademark of Robe lighting s. r. o.
• iT12 Profile™ is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents
