Robe FOOTSIE1 WW（フットシー1 WW）

Time to uplift your footlights and make those feet shine! With its sleek, low design, our IP65-rated FOOTSIE takes footlights into the modern age.

特徴

Light source
24 x RGBW/TW/WW LED single chip

Light output
2.470 lm

Zoom range
Asymmetrical field angle 55° x 50°

仕様

Technical Specification
Source

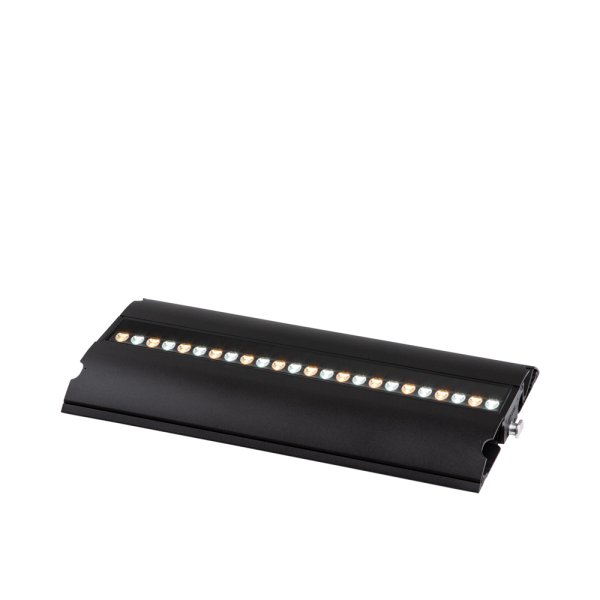

• Light source type: 24 x 4W WW/TW or 3W RGBW High Power Single Chip LEDs
• LED life expectancy: min. 50.000 hours
• Typical lumen maintenance: L70/B50 @ 50.000 hours
• CRI:
Optical system
• Robe’s proprietary optical design
• Field angle: Asymmetrical field angle 55° x 50°
• Fixture total lumen output

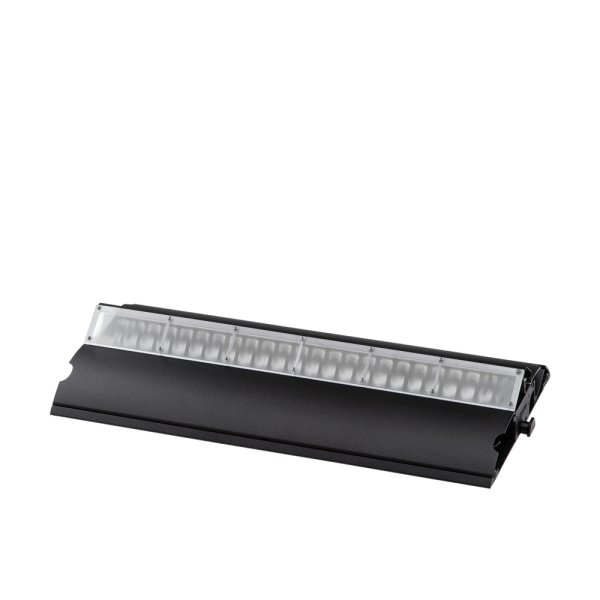

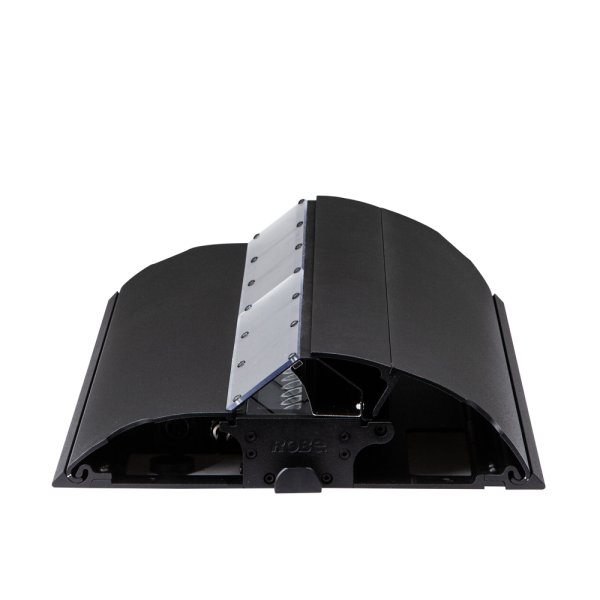

• Optional diffusers:

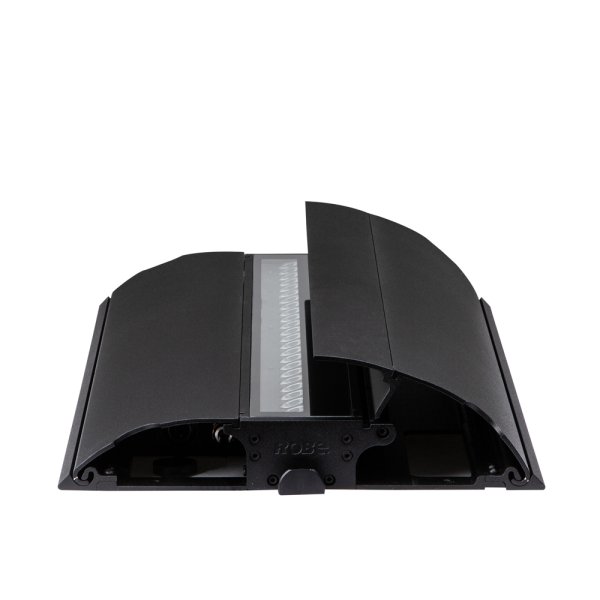

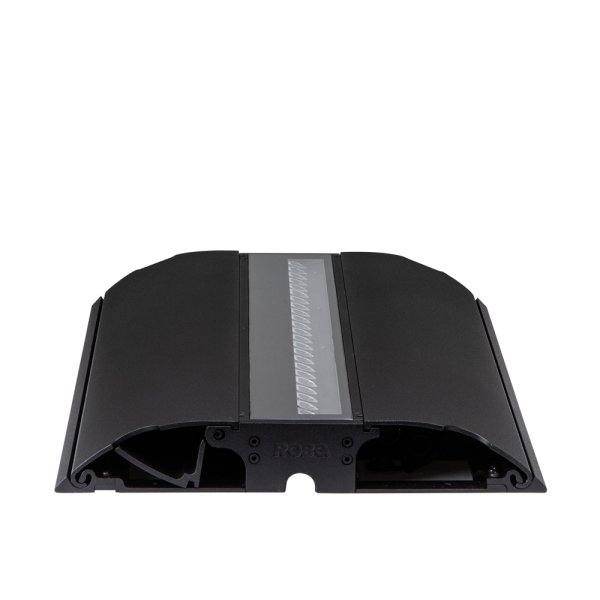

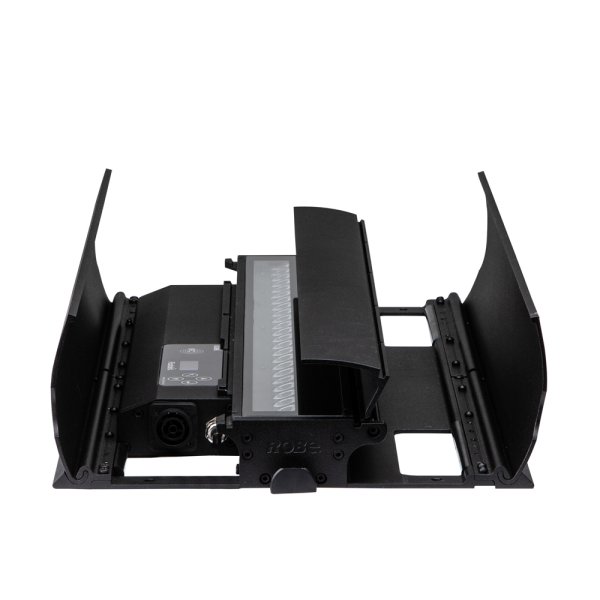

• SPREAD™ (Shield Protection, Reflection Elimination, Diffusion) Integrated shield which can be folded inside of the
housing or can be released and installed in position. Shield is covering the direct view to the led sources from the side
of audience (Patent pending)
Dynamic Effects and Features
• Colour mixing mode RGBW/CMY or TW
• 2 individually controllable LED zones
• + - Green correction function
• CCT:
• Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4200K
(red shift and thermal delay)
• DataSwatch™ filters: pre-programmed 237 colours and tones including most used whites 2.700K, 3.200K, 4.200K,
5.600K and 8.000K
• Pre-programmed random strobe & pulse effects
• Strobe effect with variable speed
• High resolution electronic dimming: 0 - 100%
• L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black
• Extremely quiet operation suitable for all types of production in Theatre and TV
• Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K
• BluMark™ allows a low-level blue LED indication of stage edges without affecting lighting states
• PIP™ - Performer Indication Point – separately controlled RGB LEDs at 10 cm spacing provide performers with
alignment points (Patent pending)
Control and programming

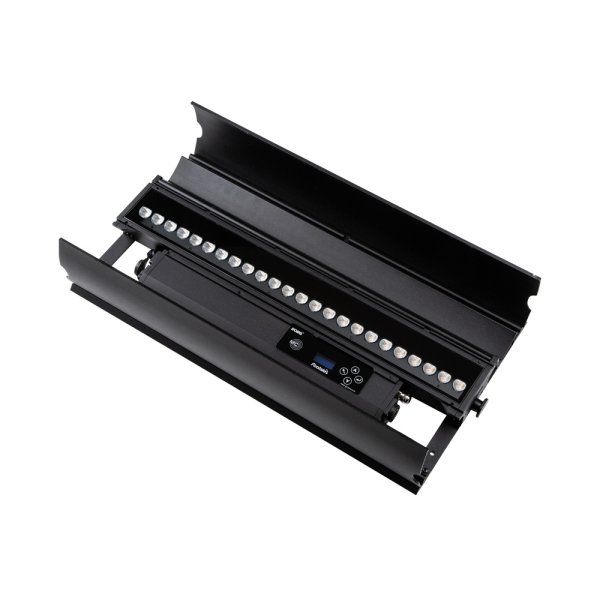

• Setting & Addressing: two-row LCD display & 4 control buttons, stand-alone operation with 3 editable programs
(each up to 40 steps)
• NFC app controller
• Wireless CRMX™ technology from Lumen Radio
• Protocols: USITT DMX-512, RDM
• DMX Protocol modes: 3
• Control channels:
• RGBW / CMY: 8 or 16 bit
• Variable CCT: 8 bit
• + - Green correction: 8 bit
• Dimmer: 8 or 16 bit (internal 18 bit)
Thermal specification
• Maximum ambient temperature: 45 °C (113°F)
• Maximum surface temperature: 50°C (122°F)
• Minimum operating temperature: -20°C (-4°F)
• Total heat dissipation: max. 115 BTU/h (calculated)
Noise Levels
• Cooling system: Convection
• WW: 1, 11, 18 channels
Electrical specification and connections
• Power supply: Electronic auto-ranging
• Input voltage range: 120-240 V, 50/60 Hz
• Power consumption: max. 45 W
• Power connector in/out: IP65 Neutrik powerCON TRUE1 in/out
• DMX and RDM data in/out: IP65 Locking 5-pin XLR connectors
Mechanical specification
• Height: 52 mm (2.04")
• Width: 629 mm (24.76")
• Depth: 338.6 mm (13.33")
• Weight:
• Ingress protection rating: IP65
• IK Rating: IK06
Included items
• User Manual
• Daisy Chain powerCON TRUE1 In/Out, EU or US, 0,35 m, Outdoor
Optional accessories
• Diffusion filter medium: 10980820
• Diffusion filter wide: 10980822
• Angled corner 15°: 10980827
• Angled corner high 15°: 10980880
• Angled corner 30°: 10980828
• Angled corner high 30°: 10980881
• Angled corner 60°: 10980829
• Angled corner high 60°: 10980882
• Angled corner 90°: 10980830
• Angled corner high 90°: 10980883
• Power cord including powerCON TRUE1 In connector EU: 13052276-01
• Power cord including powerCON TRUE1 In connector US: 13052277-01
• End cap: 10980831
• Eight/Quad Top Loader Case Footsie1/ Footsie2: 10120328
Legal
• FOOTSIE1™ is Registered Trademark of Robe lighting s. r. o.
• FOOTSIE1™ is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents
