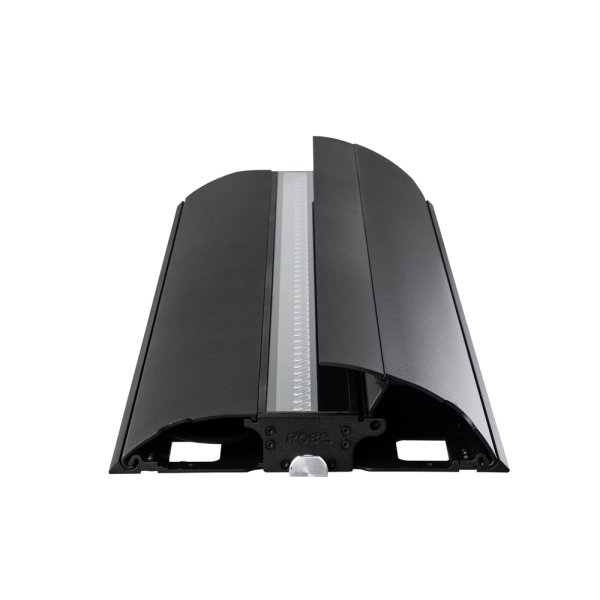

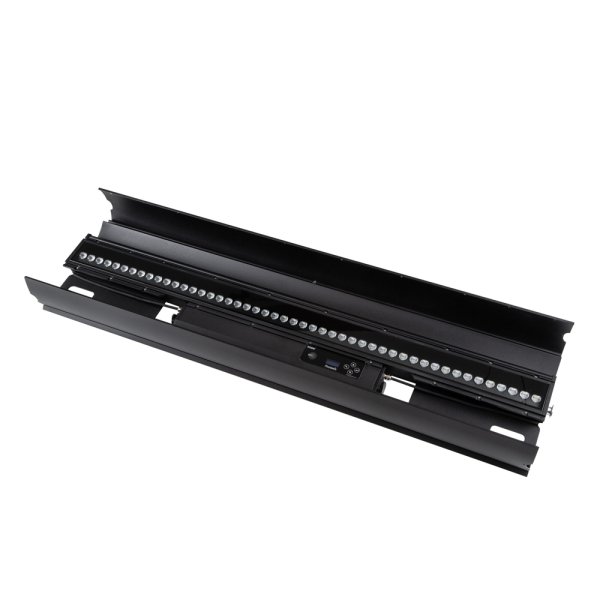

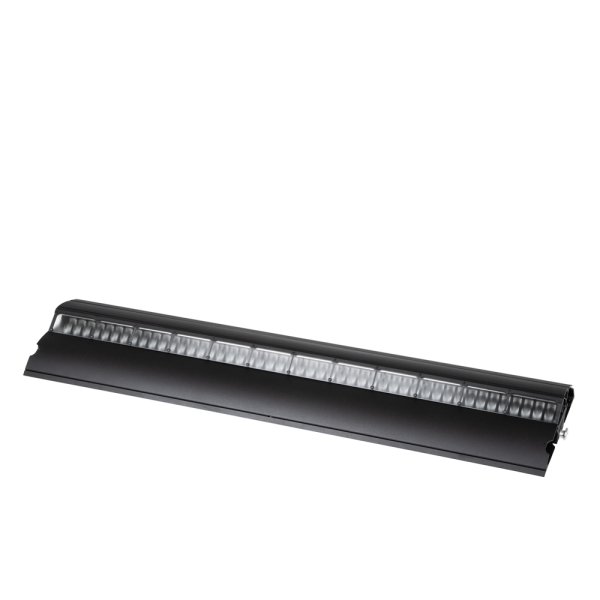

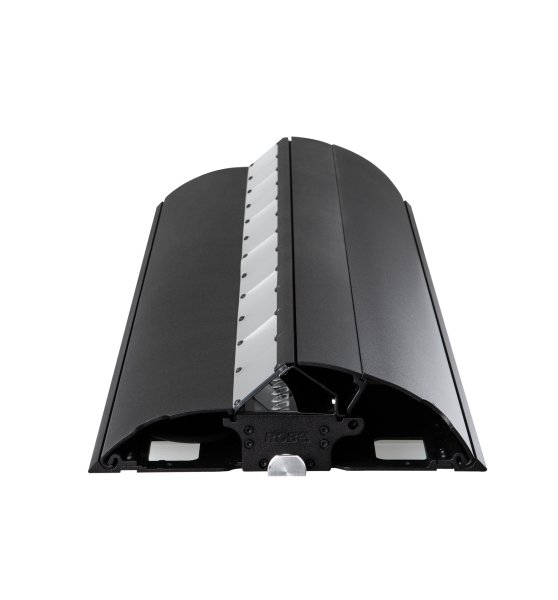

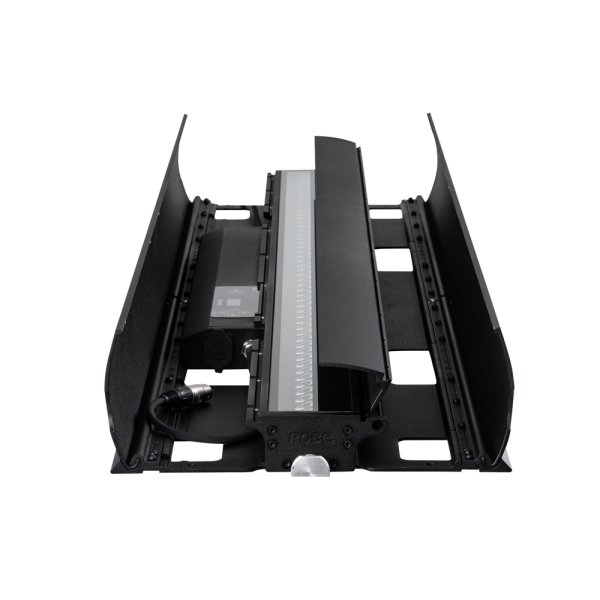

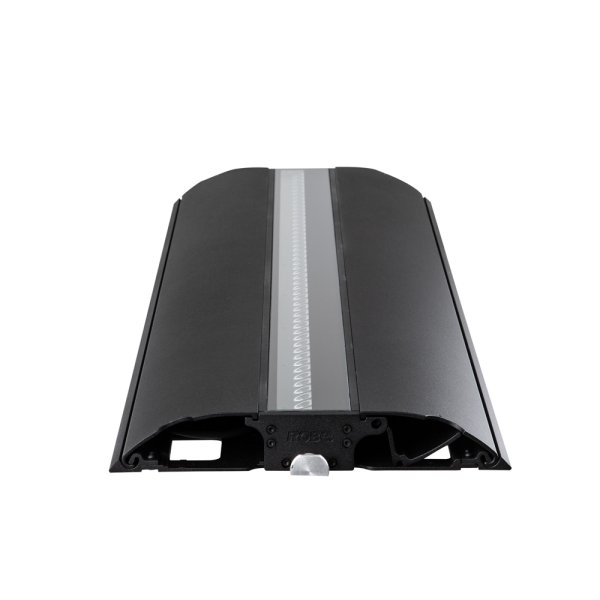

Robe FOOTSIE2 RGBW（フットシー2 RGBW）

Time to uplift your footlights and make those feet shine! With its sleek, low design, our IP65-rated FOOTSIE takes footlights into the modern age.

特徴

Light source
48 x RGBW/TW/WW LED single chip

Light output
4.940 lm

Zoom range
Asymmetrical field angle 55° x 50°

仕様

Source
Light source type: 48 x 4W WW/TW or 3W RGBW High Power Single Chip LEDs

LED life expectancy: min. 50.000 hours

Typical lumen maintenance: L70/B50 @ 50.000 hours

CRI:

WW 90+

TW 85+

RGBW 70+

Optical system
Robe’s proprietary optical design

Field angle: Asymmetrical field angle 55° x 50°

Fixture total lumen output:

WW: 7.115 lm

TW: 7.240 lm

RGBW: 4.940 lm

Optional diffusers:

Medium frost filter 20° x 1°

Wide frost filter 60° x 30°

SPREAD™ (Shield Protection, Reflection Elimination, Diffusion) Integrated shield which can be folded inside of the housing or can be released and installed in position. Shield is covering the direct view to the led sources from the side of audience (Patent pending)

Dynamic Effects and Features
Colour mixing mode RGBW/CMY or TW

4 individually controllable LED zones

+ - Green correction function

CCT:

WW 3000K

TW Variable 2.700K - 6.500K

RGBW Variable 2.700K - 8.000K

Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4200K (red shift and thermal delay)

DataSwatch™ filters: pre-programmed 237 colours and tones including most used whites 2.700K, 3.200K, 4.200K, 5.600K and 8.000K

Pre-programmed random strobe & pulse effects

Electronic strobe effect with variable speed up to 20 Hz

High resolution electronic dimming: 0 - 100%

L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

Extremely quiet operation suitable for all types of production in Theatre and TV

Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K

BluMark™ allows a low-level blue LED indication of stage edges without affecting lighting states

PIP™ - Performer Indication Point – separately controlled RGB LEDs at 10 cm spacing provide performers with alignment points (Patent pending)

Control and programming
Setting & Addressing: two-row LCD display & 4 control buttons, stand-alone operation with 3 editable programs (each up to 40 steps)

NFC app controller

Wireless CRMX™ technology from Lumen Radio

Protocols: USITT DMX-512, RDM

DMX Protocol modes: 3

Control channels:

WW: 1, 13, 26 channels

TW: 2, 20, 33 channels

RGBW: 5, 36, 49 channels

RGBW / CMY: 8 or 16 bit

Variable CCT: 8 bit

+ - Green correction: 8 bit

Dimmer: 8 or 16 bit (internal 18 bit)

Noise Levels
Cooling system: Convenction

Thermal specification
Maximum ambient temperature: 45°C (113°F)

Maximum surface temperature: 50°C (122°F)

Minimum operating temperature: -20°C (-4°F)

Total heat dissipation: max. 218 BTU/h (calculated)

Electrical specification and connections
Power supply: Electronic auto-ranging

Input voltage range: 120-240 V, 50/60 Hz

Power consumption: max. 85W

Power connector in/out: IP65 Neutrik powerCON TRUE1 in/out

DMX and RDM data in/out: IP65 Locking 5-pin XLR connectors

Mechanical specification
Height: 52 mm (2.04")

Width: 1229 mm (48.38")

Depth: 338.6 mm (13.33")

Weight:

17.1 kg (37.7 lbs)

19.7 kg (43.4 lbs) with diffuser

Ingress protection rating: IP65

IK Rating: IK06

Included items
User Manual

Daisy Chain powerCON TRUE1 In/Out, EU or US, 0.90 m, Outdoor

Optional accessories
Diffusion filter medium: 10980821

Diffusion filter wide: 10980823

Angled corner 15°: 10980827

Angled corner high 15°: 10980880

Angled corner 30°: 10980828

Angled corner high 30°: 10980881

Angled corner 60°: 10980829

Angled corner high 60°: 10980882

Angled corner 90°: 10980830

Angled corner high 90°: 10980883

Power cord including powerCON TRUE1 In connector EU: 13052276-01

Power cord including powerCON TRUE1 In connector US: 13052277-01

End cap: 10980831

Eight/Quad Top Loader Case Footsie1/Footsie2: 10120328

Legal
FOOTSIE2™ is Registered Trademark of Robe lighting s. r. o.

FOOTSIE2™ is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents

参照

■メーカーサイト
https://www.robelighting.com/footsie2
