ENTTEC SMART PXL-40P DOT [73040]

Flexible strings of ultra-bright, high-resolution 42mm RGB or RGBW LED nodes with robust, injection-moulded cases for all-weather use.

ENTTEC’s SMART PXL40P LED pixel dots feature robust, weatherproof UV-resistant PVC cases. For projects requiring metal fixtures, we offer a 41.5mm version made from marine-grade aluminum, machined, and anodized at our Australian HQ. These versatile, easy-to-install RGB dots create striking lighting effects and can be customized for any project. Designed by professionals, they elevate any architectural, commercial, or entertainment space.

特徴

Weather resistant
Constructed from premium durable materials in our Australian factory, SMART PXL dots offer outstanding protection against moisture (IP67), corrosion and impact (IK10), and come with a 3-year warranty. The perfect outdoor pixel light for all projects.

Custom options
Because your projects are built to custom specifications, so are our SMART PXL-40P dots. Select from different lens options and custom spacing from anywhere between 125mm and 2000mm between each dot.

True brightness
Each direct-view SMART PXL node contains 6 premium RGB or RGBW LED chips, giving an impressive lumen output. They look amazing from a distance and have been used to great effect around the world on everything from bridges to ferris wheels.

Smooth as silk
16-bit native for an ultra-smooth dimming curve and mixing detail that will truly wow your audience. Alternatively, run them in 8-bit mode with an ENTTEC control system to halve the required control channels.

For extended runs
We use custom made quality cable to combat voltage drop, ensuring you a richness and consistency of colour. With the best combination of customisation, you’ll be able to achieve long runs of up to 70 dots without power injection. Talk to our friendly sales team now to understand the full potential of your design!

Ultra flexible
The versatile nature of SMART PXL dot strings means they’re easy-to-install around tricky angles, corners or bends, making them ideal to show off or highlight architectural features. Talk with an ENTTEC expert and we can help you bring almost any design you can imagine to life.

仕様

led channels RGB (Red/Green/Blue) or RGBW (Red/Green/Blue/White)
Colour resolution 16-bit (can also run in 8-bit mode)
Control protocol ENTTEC SPXL-8 / SPXL-16
Data configuration auto-addressing
LED lifetime 50,000 hrs (L70)
Body material UV resistant injection moulded PVC

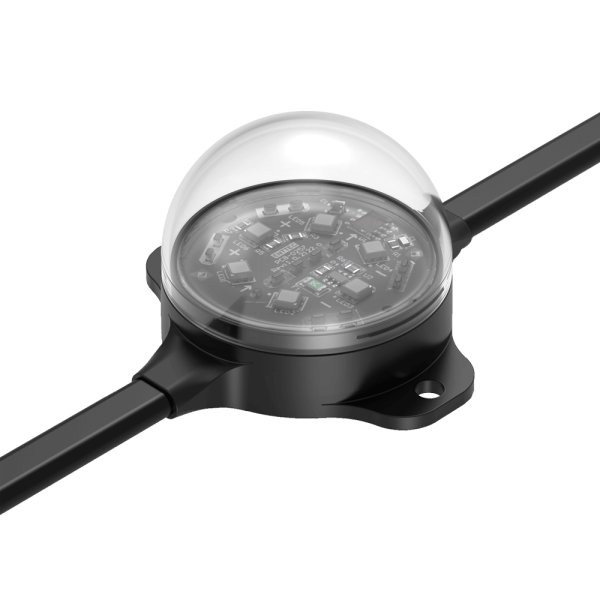

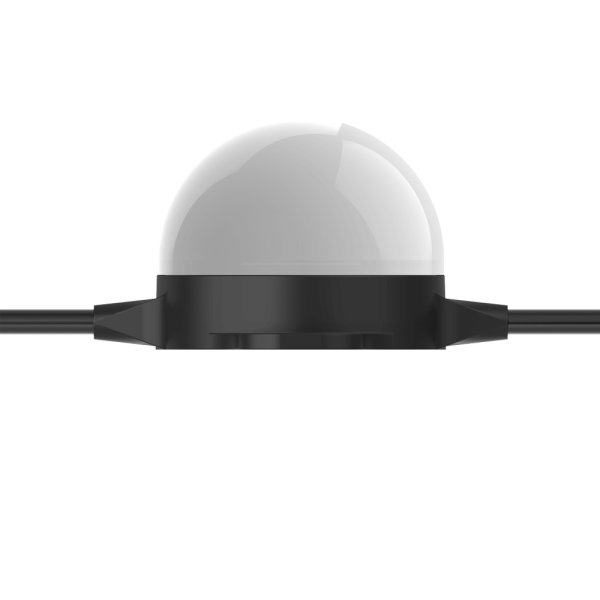

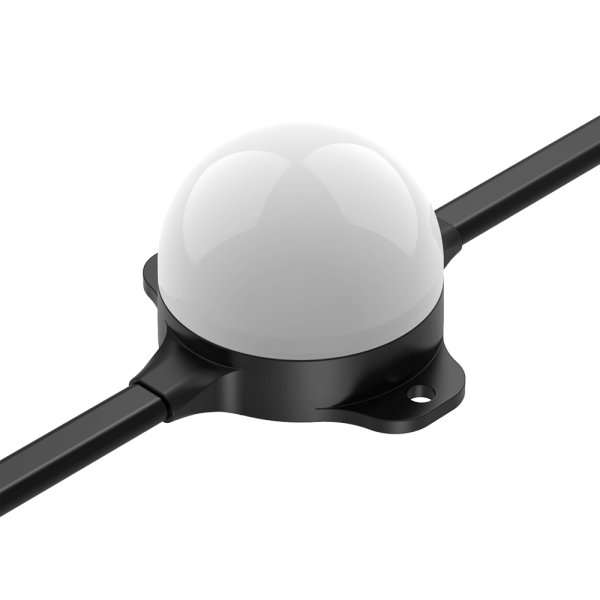

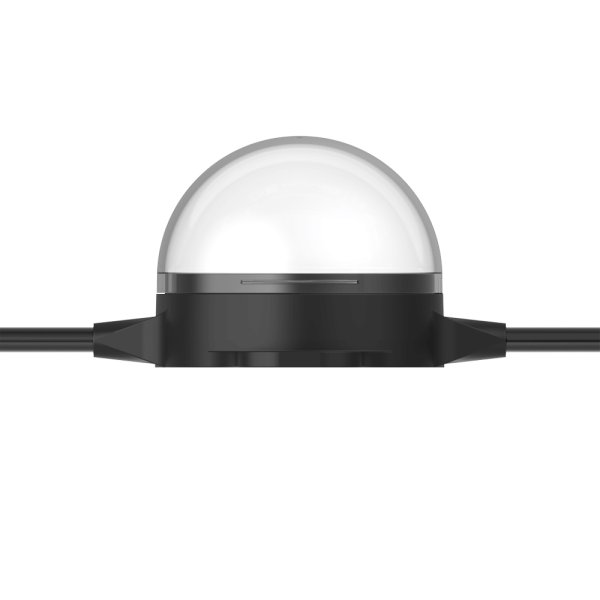

Lens options ⌀42mm diffuse dome / clear dome
Lens material optical grade polycarbonate
IK rating IK10
IP rating IP67
Vibration rating 3G
Operating temperature -20°C to +50°C
Overall dimensions 60.38mm L x 56.85mm W x 33.9mm H
Weight approx. 48g/dot (excl. lead in & out)
Dot pitch/spacing customisation options available: from 125mm to 2000mm

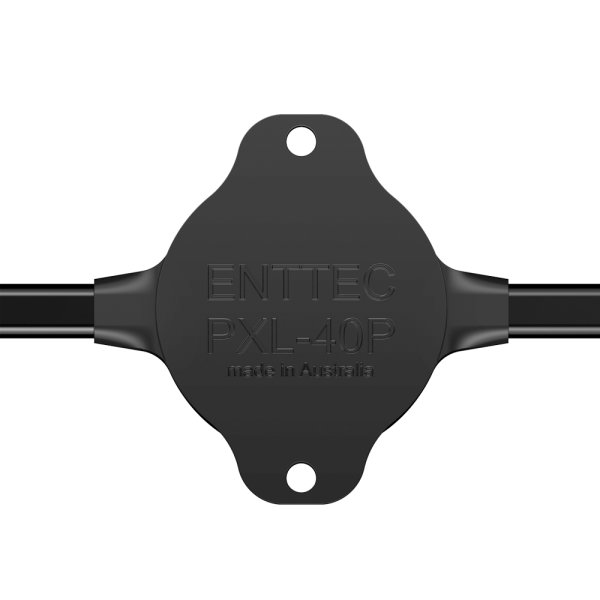

Installation 2 x ⌀4.23mm mounting holes for M4 screws
Cabling includes premium Amphenol AT series connectors
Compliance RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)

RGB version

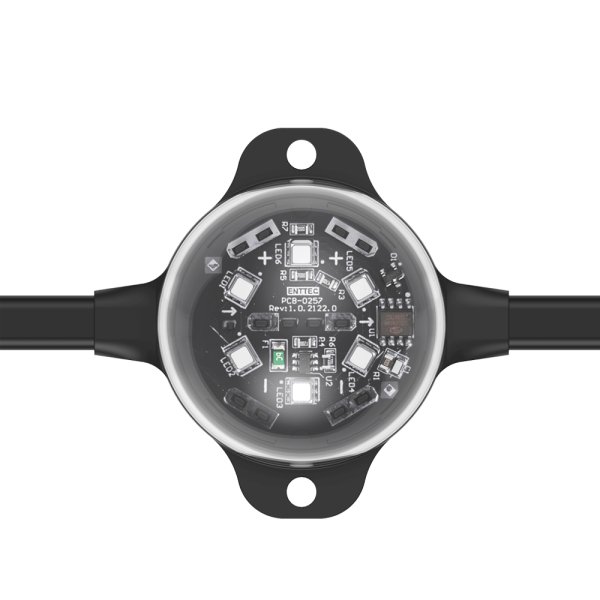

LED source 6 x RGB SMD3535 – customisation options available
Input voltage 24V DC
Max lumens (lm) dome clear lens: 29.1 / dome diffuse lens: 24.1
Efficacy (max lm/watt) dome clear lens: 18.2 / dome diffuse lens: 15.1
Control channels equivalent of 6 DMX channels of data per dot
Dots controllable per DMX universe 8-bit: 170 / 16-bit: 85

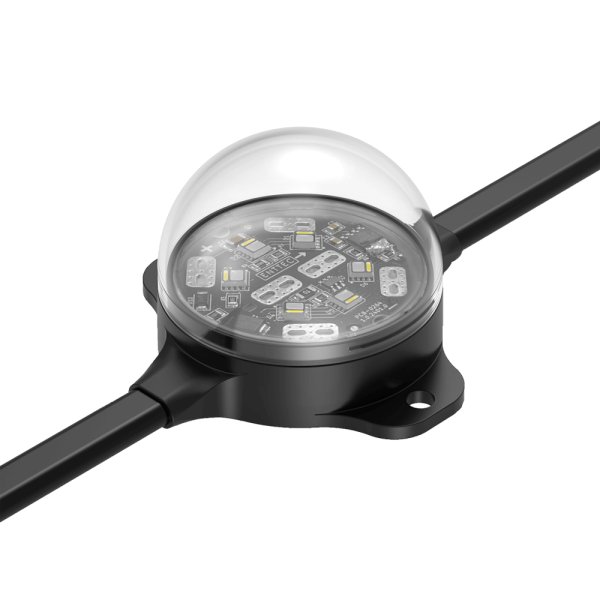

RGBW version

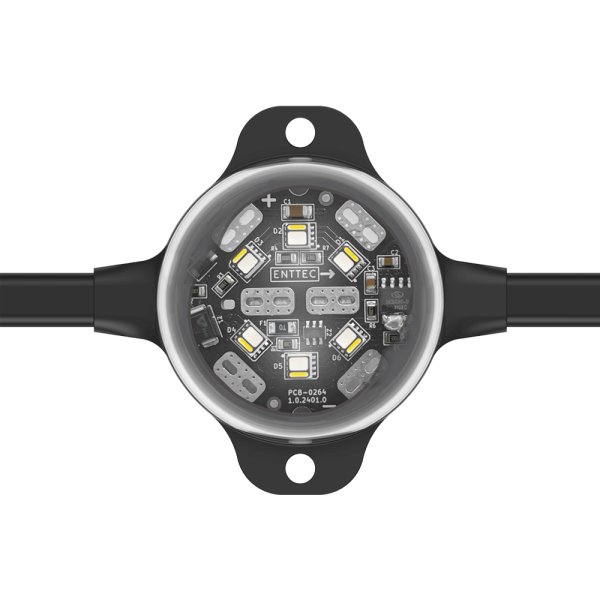

LED source 6 x RGBW 3000K SMD5050 – customisation options available
Input voltage 24V DC
Max lumens (lm) dome clear lens: 41.5 / dome diffuse lens: 32.4
Efficacy (max lm/watt) dome clear lens: 23.6 / dome diffuse lens: 15.1
Control channels equivalent of 8 DMX channels of data per dot
Dots controllable per DMX universe 8-bit: 128 / 16-bit: 64
