ENTTEC SMART PXL 100×25 DOT（スマートピクセル 100×25 DOT） [73030]

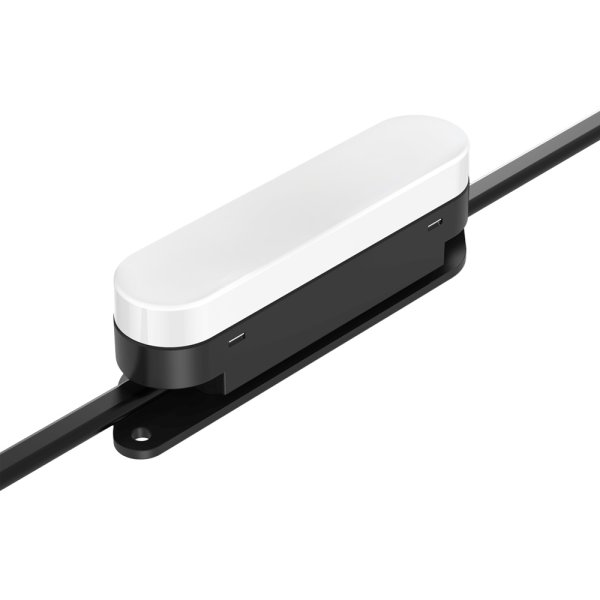

Flexible strings of ultra-bright, high-resolution 100mm x 25mm RGB LED nodes with robust, injection-moulded cases for all-weather use.

ENTTEC’s SMART PXL 100×25 LED pixel dots are high-resolution, individually addressable, and built to withstand harsh environments. Easy to install in any shape, they deliver crisp lighting effects while adding a stylish design element. Custom spacing and voltage options are available to suit various projects. Designed by lighting professionals for lighting professionals, each string is made to order at our Australian HQ and shipped globally.

特徴

Weather resistant
Constructed from premium durable materials in our Australian factory, SMART PXL dots offer outstanding protection against moisture (IP67), corrosion and impact (IK10), and come with a 3-year warranty. The perfect outdoor pixel light for all projects.

Custom options
Because your projects are built to custom specifications, so are our SMART PXL dots. Select from RGB or RGBW LEDs for a 24V or 48V system, as well as different lens options and custom spacing from anywhere between 150mm and 2000mm between each dot.

True brightness
Each direct-view SMART PXL node contains 12 premium RGB or RGBW LED chips, giving an impressive lumen output. They look amazing from a distance and have been used to great effect around the world on everything from bridges to ferris wheels.

Smooth as silk
16-bit native for an ultra-smooth dimming curve and mixing detail that will truly wow your audience. Alternatively, run them in 8-bit mode with an ENTTEC control system to halve the required control channels.

For extended runs
We use custom made quality cable to combat voltage drop, ensuring you a richness and consistency of colour. With the best combination of customisation, you’ll be able to achieve long runs of up to 204 dots without power injection. Talk to our friendly sales team now to understand the full potential of your design!

Ultra flexible
The versatile nature of SMART PXL dot strings means they’re easy-to-install around tricky angles, corners or bends, making them ideal to show off or highlight architectural features. Talk with an ENTTEC expert and we can help you bring almost any design you can imagine to life.

仕様

LED channels RGB (Red/Green/Blue) or RGBW (Red/Green/Blue/White)
Colour resolution 16-bit (can also run in 8-bit mode)
Control protocol ENTTEC SPXL-8 / SPXL-16
Data configuration auto-addressing
LED lifetime 50,000 hrs (L70)
Body material UV resistant injection moulded PVC

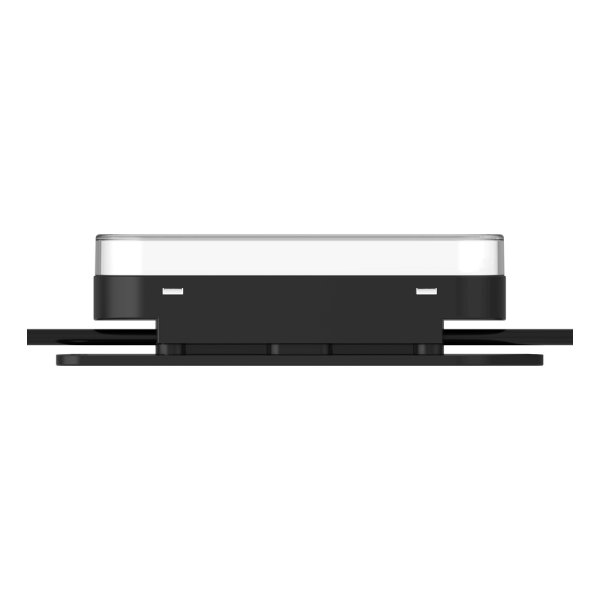

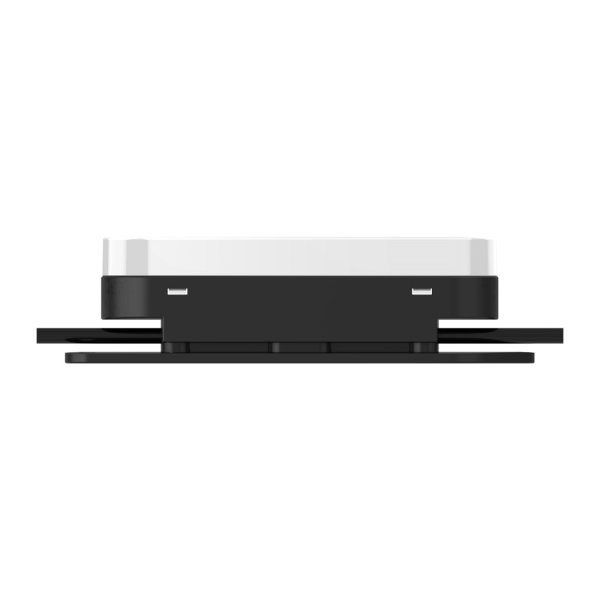

Lens options 100mm x 25mm – flat diffuse / flat clear
Lens material optical grade polycarbonate
IK rating IK10
IP rating IP67
Vibration rating 3G
Operating temperature -20°C to +50°C
Overall dimension 118.2mm L x 25mm W x 32mm H
Weight approx. 68g/dot (excl. lead in & out)
Dot pitch/spacing customisation options available: from 150mm to 2000mm

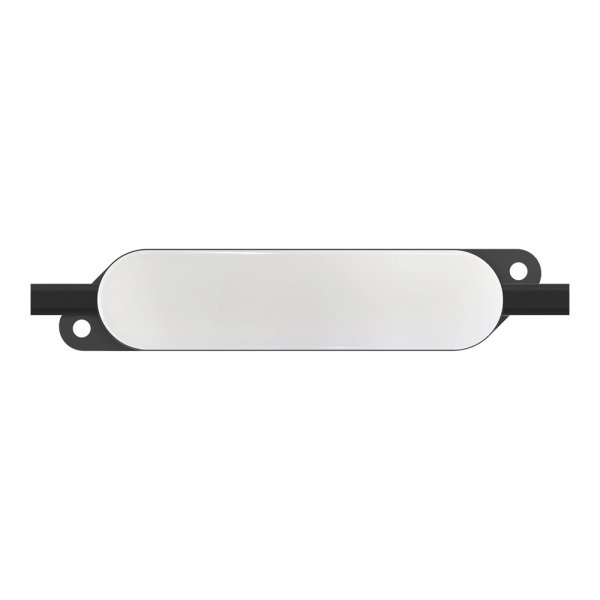

Installation 2 x ⌀4.3mm mounting holes for M4 screws
Cabling includes premium Amphenol AT series connectors
Compliance RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)

RGB version

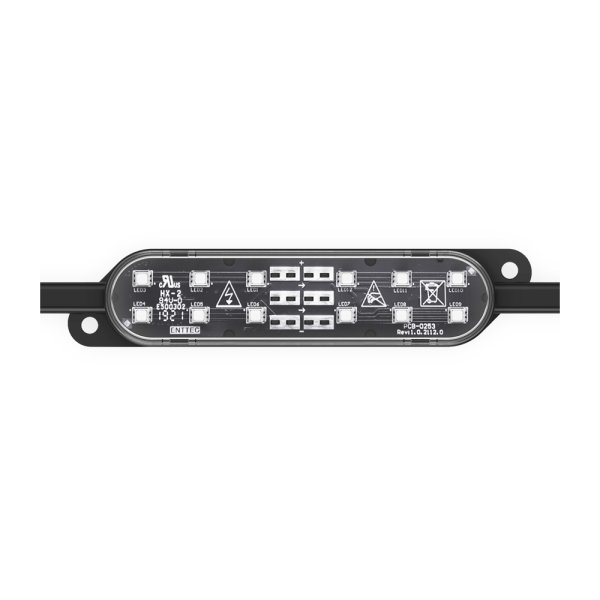

LED source 12 x RGB SMD3535 per dot – customisation options available
Input voltage 24V DC or 48V DC options
Max lumens (lm) 24V: 39.2 / 48V: 38.3
Efficacy (max lm/watt) 24V: 17.6 / 48V: 15.2
Control channels equivalent of 6 DMX channels of data per dot

RGBW version
LED source 12 x RGBW (3000K) SMD5050 per dot – customisation options available
Input voltage 24V DC or 48V DC options
Max lumens (lm) 24V: 87.1 / 48V: 82.5
Efficacy (max lm/watt) 24V: 39.1 / 48V: 41.9
Control channels equivalent of 8 DMX channels of data per dot
Dots controllable per DMX universe 8-bit: 128 / 16-bit: 64
