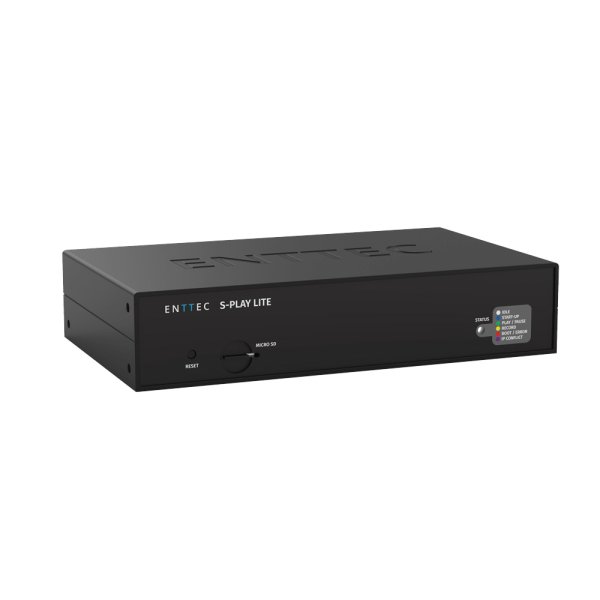

ENTTEC S-PLAY LITE（S-プレイ ライト） [70094]

16-universe, all-in-one DMX recorder + smart light show controller.

ENTTEC’s S-PLAY LITE is a smart show recorder and playback controller designed for professional, hassle-free light shows and automation. It handles light shows, video, and machinery with precision, allowing for simultaneous playback and flexible mounting. Combining a scene creation engine, 16-universe DMX recorder, and multiple AV protocol host, it also supports custom web interfaces. With its built-in effects generator and intuitive controls, it makes creating impressive shows easy, even for those without extensive lighting experience.

特徴

Cue: record + create effects
The S-PLAY LITE is a powerful, professional light show generation engine, featuring multiple ways of recording and creating content for your show.

Record light scenes into static/dynamic cues from external sources such as lighting software via sACN, Art-Net or from physical universes using the DMX port.

Use the internal web-based engine to generate gradient effect cues or simple light scenes by editing DMX values manually.

Playlist: design + integrate
Create playlists for DMX or pixel light shows using the intuitive timeline editor, and integrate both lighting and non-lighting equipment through multiple protocols and contact closures.

Use these components as building blocks in your playlists to initiate automation events through contact closure, RS232, or protocols like OSC, UDP, DMX, Art-Net, and sACN.

Moreover, you can trigger playlists in real-time using external building automation software, iPad Apps, pressure pads, motion detectors, push buttons, and various other methods.

The S-PLAY LITE’s sophisticated and intuitive playlist creation tools include:

– Drag and drop cues, events and triggers into the timeline
– Adjust the duration for static cues and effects
– Fade in/out for all cues
– Control playlist intensity in real-time
– Design your show with a combination of different cues, events and triggers
– Edit, loop, prioritise and group playlists
– Play single or multiple playlists

Playback: set + forget
Simply set and forget for permanent installation and easy management. You can play back your show at any time and in any way you like through interactive control or scheduled timings.

Use the intuitive web-based creation tool to set up multiple playlists to play back on demand. The customised user interface simplifies commissioning to make playback easier than ever, with multiple installation options to secure your device with peace of mind.

Set up multiple playlists to playback simultaneously in various ways using real–time triggers, internal Schedules, or even custom user interface for different needs. The S-PLAY LITE optimises the intricate lighting setup within finger reach so you can set and forget.

Light show playlists can be set up to playback:

– By pre-set triggers to create real-time interactive lighting control
– By scheduler for an automatic long-term setting with perfect local time synchronisation via NTP
– Customised user interface for hassle-free direct control

Architectural features
Advanced features elevate the S-PLAY LITE into the architectural sphere, bringing you borderless control.

Open API:
Flexible control system integration that allows external commission through text-based codes.

Multi-Sync:
Sync multiple S-PLAYs on the same network when you need more than 32 Universes.
The leader S-PLAY can synchronise follower S-PLAYs to enable recording and playback with increased capacity.
Set playlist schedules that sync the playlist command across follower S-PLAYs.

Remote access:
Access one or multiple S-PLAYs through the AWS cloud server from anywhere in the world.

Management:
Firmware updates, backup, restore and playlist management can be accessed easily on the web interface at the local network.

Flexible installation options
The S-PLAY LITE offers versatile installation possibilities with both rack-mount and surface-mount options, making it adaptable to a wide range of environments. Whether you’re working in a compact space or a large-scale venue, the S-PLAY can seamlessly integrate into your setup.

仕様

Input voltage 12V DC to 24V DC
Power input DC jack (12V PSU & international plugs included)
Max power draw 8W
Ethernet port / PoE RJ45 / PoE IEEE 802.3af
DMX port 2 x 5-pin XLR (female)
Digital input 4 digital inputs + 1 GND + 1 5V (6-pin screw terminal)
Relay 2 x relay 6-pin screw terminal (max limits, 50V DC or 60W)
Internal show storage capacity 8GB (~20 hours of 16 universes at 40fps)
Expandable storage / external memory Micro SD card
LED indicators Yes
Factory reset Web interface
Mounting Rack, surface & TS35 DIN rail mountable (ears, clips & screws included)
IP rating IP20
Environmental operating temperature 0°C to 50°C / 32°F to 122°F
Environmental operating humidity 0 to 95% (non-condensing)
Cooling method Convection
Body material ABS plastic & anodised aluminium
Unit dimensions 200mm x 120mm x 42 mm
Unit weight 0.47kg / 1.04lbs
Shipping dimensions 335mm x 265mm x 78mm
Compliance RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
Warranty 3-year return to base manufacturer warranty

Software
DMX universe playback 2U (1024 channels of USITT DMX512-A)
Art-Net / sACN universe playback 16U (8,192 channels)
Max refresh rate (FPS) Art-Net & sACN: 60 / USITT DMX512-A: 40
Max playlist count 100
Max cue track per playlist 4
Max Cues (including Static, Dynamic and Effect) 100
Max Triggers 150
Max Events 150
Max custom interface 5
OSC API Yes
HTTP API Yes
Scheduler Yes
Remote access No
Multi-sync No
