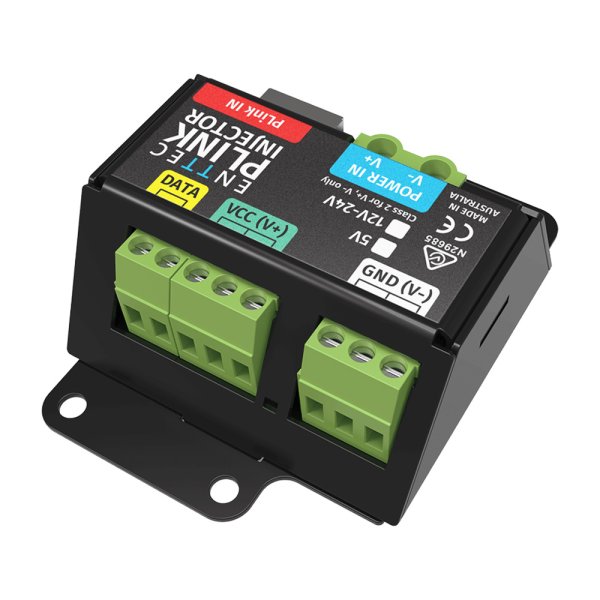

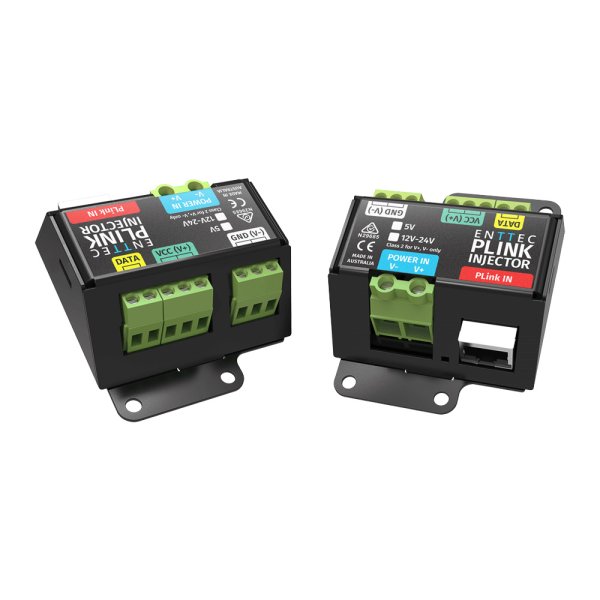

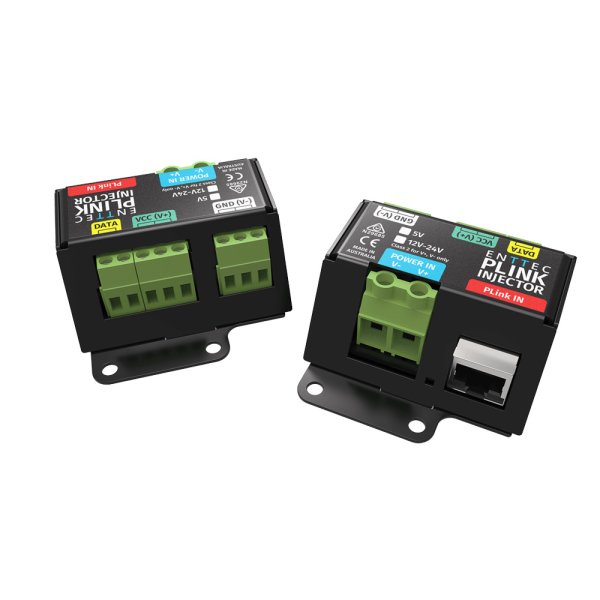

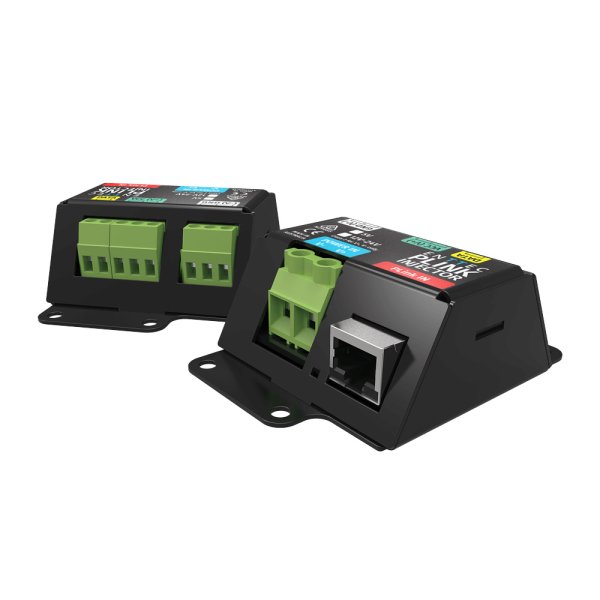

ENTTEC PLink Injector（PLink インジェクター） [73-545]

Our 2-Universe PLink Injector has been engineered to work alongside your Pixelator to extend your LED pixel layout over long distances.

概要

The PLink Injector has been engineered to work as part of an ENTTEC Pixelator Series set up to make it fast, easy and affordable for you to control LED pixel strips or pixel dots over long distances. The injector features an external DC power supply as well as high-power screw terminal connectors.

特徴

PLink ports can drive up to 2 DMX universes
External DC power supply
Small, light and easy to hide design
Ideal for custom shape pixel LED installations
Easy wiring using Cat5/Cat5e/Cat6 standard connections
Data extensions up to 300 meters over Cat5/Cat5e/Cat6 cable
High power screw terminal connectors
International compliance

仕様

Connectors
1* PLINK Input (RJ45)
1* Power In (screw terminal)
1* Pixel Output (screw
terminal)
IP Rating IP20
LED Indicators Yes
Input Data PLINK data
Output Data SPI
Input Voltage 5VDC 12VDC 24VDC
Max. Throughput
Capacity
(Class 2-US/CA only)
5A 5A 4.16A
25W 60W 100W
Max. Throughput
Capacity 10Amp
Max. Power Draw 3.5W
Min. Lead Wire
OUTPUT VCC/GND 0.5mm2
INPUT VCC/GND 1.5mm2
Cooling Method Convection
Environmental
Operating Temp.
0°C to 50°C
Environmental
Operating Humidity
5- 95%
(non-condensing)
Body Material ABS Plastic

サイズ

Unit Dimensions 83.5*65*31 mm
Unit Weight 0.059kg
Shipping Dimensions 125*75*70 mm
Shipping Weight 0.105kg
Shipping Dimensions
(Carton of 8)
260*155*140mm
Shipping Weight
(Carton of 8) 0.84Kg
