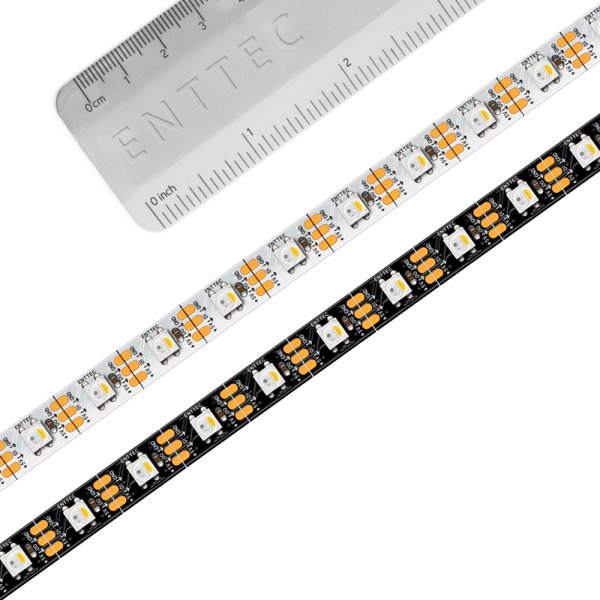

ENTTEC 5V RGBW 60-LEDs/m pixel strip white PCB（5V RGBW 60-LEDs/m ピクセルストリップ white PCB） [8PXA60-RGBW-5V-W]

5V RGBW LED pixel strip for professional applications.

ENTTEC’s 8PXA60-RGBW-5V series are 5V, 60-LED-per-meter, addressable RGBW LED pixel strips designed for professional architectural and entertainment purposes, achieving soft pastels or saturated colors on a large scale.

特徴

60 RGBW LEDs per meter
ENTTEC LED pixel strip boasts 60 color-calibrated RGBW LEDs per meter. Each LED is engineered to offer consistent brightness and extended color gamut.

Bright + super-efficient
With a maximum power consumption of only 11.9 watts per meter, and a lumen capacity of 588.8 lumens per meter, this 5V pixel strip provides a bright and efficient package.

Australian designed for top performance
Designed by ENTTEC for reliable operation in the Australian environment, our professional quality pixel strips use superior thickened copper tracks to reduce the effects of voltage drop and to allow a more even intensity along the length of the strip.

Black or white
A black printed circuit board is a great way to minimise external light reflection and conceal the workings of your installation. Alternatively, a white PCB can leave your installation looking slick and clean. Simply pick whichever one best suits your needs.

Millions of colors
Each pixel can achieve a 32-bit, True Color display. That’s a whopping 4,294,967,296 possible colors for each LED chip.

Extend as you please
Join two lengths together or cut them into a smaller length. You can also operate the tape from up to 300m away using the ENTTEC PLink system. This tape is recommended for indoor use only.

仕様

Connectors 2 x 3-pin JST SM connectors (3A Max)
Input voltage 5V
Max. watts per meter 11.9
Efficacy (lumens per watt) 49.48
DMX channels per pixel 4
Beam angle 120°
Control protocol SK6812 IC chips (compatible with WS2811 protocol)
Backup data line No
Pixel mapping order RGBW
White temperature 4000K
PCB color Black or white options
PCB width 10mm / 0.40”
Min. bend radius 30mm / 1.2”
Spacing between cuttable sections 16.6mm / 0.66”
IP rating IP20
Environmental operating temperature 0°C to 50°C / 32°F to 122°F
Environmental operating humidity 5- 95% (non-condensing)
Weight (5m roll) 0.18Kg / 0.40lbs
Dimensions (5m roll) 240 x 215 x 16mm / 9.45 x 8.47 x 0.63”
Shipping weight (5-roll carton) 0.80Kg / 1.76lbs
Shipping dimensions (5-roll carton) 260 x 225 x 93mm / 10.24 x 10.04 x 3.66”
Warranty 1-year return to base manufacturer warranty
Compliance RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
