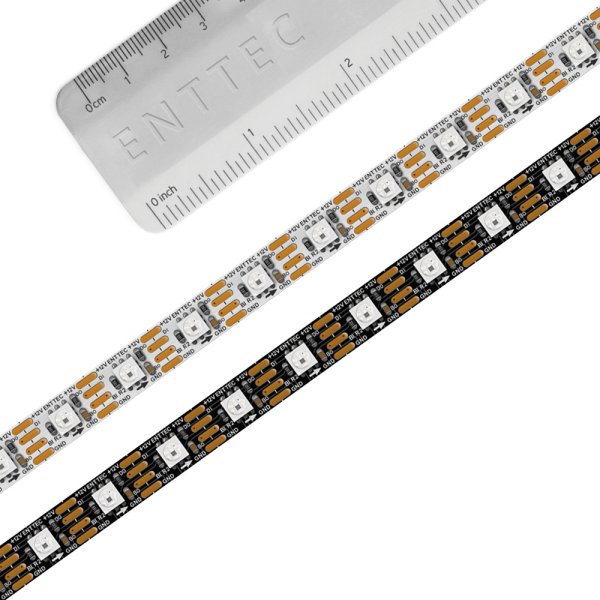

ENTTEC 12V RGB 60-LEDs/m pixel strip white PCB（12V RGB 60-LEDs/m ピクセルストリップ white PCB） [8PXA60-RGB-12V-W]

12V RGB LED pixel strip for professional applications.

ENTTEC’s 8PXA60-RGB-12V series are 12V, 60-LED-per-meter, addressable RGB LED pixel strips designed for professional architectural and entertainment purposes, achieving soft pastels or saturated colors on a large scale.

特徴

60 RGB LEDs per meter
ENTTEC LED pixel strip boasts 60 color-calibrated RGB LEDs per meter. Each LED is engineered to offer consistent brightness and extended color gamut.

Extend as you please
Join two lengths together or cut them into a smaller length. You can also operate the tape from up to 300m away using the ENTTEC PLink system. This tape is recommended for indoor use only.

Bright + super-efficient
With a maximum power consumption of only 7.2 watts per meter, and a lumen capacity of 188.2 lumens per meter, this 12V pixel strip provides a bright and efficient package.

Millions of colors
Each pixel can achieve a 24-bit, True Color display. That’s a whopping 16,777,216 possible colors for each LED chip.

Australian designed for top performance
Designed by ENTTEC for reliable operation in the Australian environment, our professional quality pixel strips use superior thickened copper tracks to reduce the effects of voltage drop and to allow a more even intensity along the length of the strip.

Black or white
A black printed circuit board is a great way to minimize external light reflection and conceal the workings of your installation. Alternatively, a white PCB can leave your installation looking slick and clean. Simply pick whichever one best suits your needs.

仕様

Connectors 2 x 4-pin JST SM connectors (3A Max)
Input voltage 12V
Max. watts per meter 7.2
Efficacy (lumens per watt) 26.14
DMX channels per pixel 3
Beam angle 120°
Control protocol SK6813 (compatible to WS2812 and GS8208B protocol)
Backup data line Yes
Pixel mapping order RGB
PCB color Black or white options
PCB width 10mm / 0.40”
Min. bend radius 30mm / 1.2”
Spacing between cuttable sections 16.6mm / 0.66”
IP rating IP20
Environmental operating temperature 0°C to 50°C / 32°F to 122°F
Environmental operating humidity 5- 95% (non-condensing)
Weight (5m roll) 0.18Kg / 0.40lbs
Dimensions (5m roll) 240 x 215 x 16mm / 9.45 x 8.47 x 0.63”
Shipping weight (5-roll carton) 0.80Kg / 1.76lbs
Shipping dimensions (5-roll carton) 260 x 225 x 93mm / 10.24 x 10.04 x 3.66”
Warranty 1-year return to base manufacturer warranty
Compliance UL / RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)

参照

■メーカーサイト
https://www.enttec.com/product/led-pixel-strip/12v-rgb-60-leds-m-pixel-strip/
