Avolites Diamond（エボライツダイヤモンド）D7-215

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

特徴

Generative, animation-based pixel mapping
Quicksketch labelling for ultimate personalisation
Powerful multi-user networking with any Titan console
Create huge effects in seconds with Key Frame Shapes
Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
Expand DMX channel capacity with Titan Net Processors
Synergy-ready. Add any Ai product to unlock seamless video integration

仕様

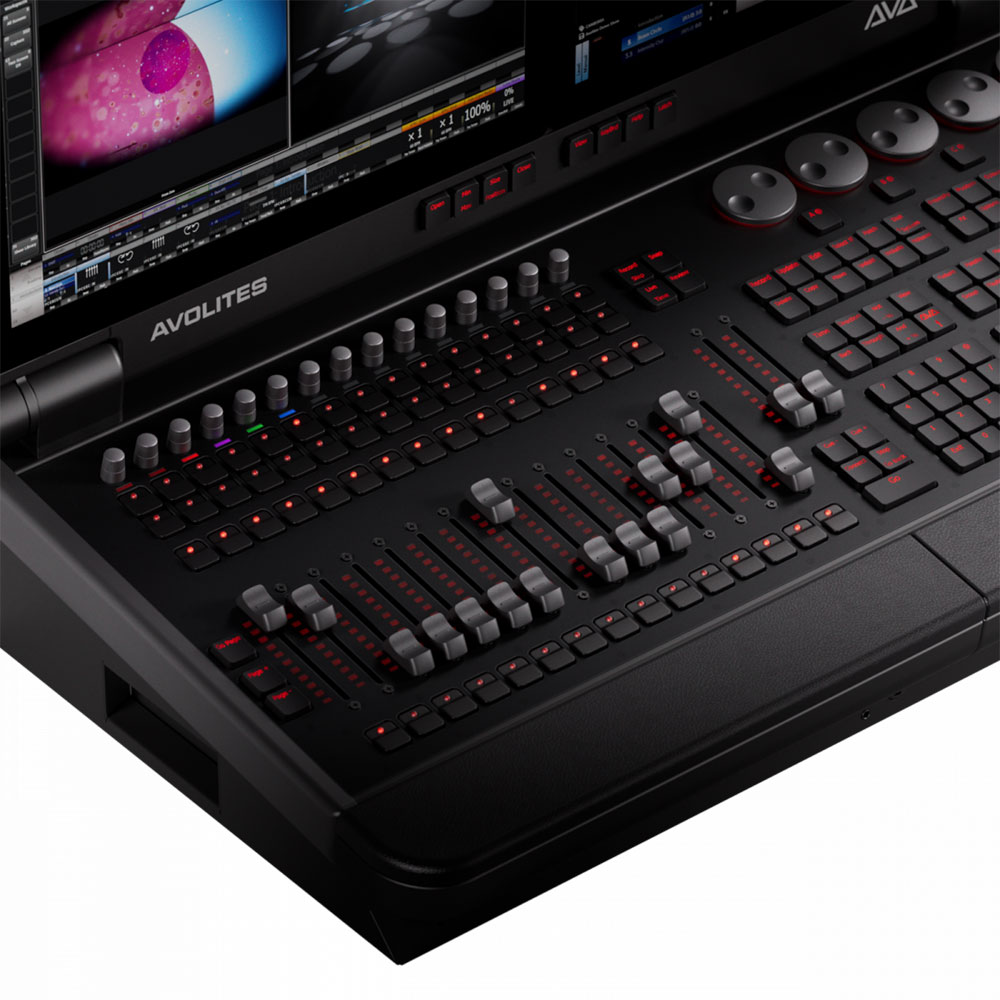

15 motorised touch-sensitive faders, with designer fader cap and RGB fader indicator
Programming buttons all RGB backlit, short travel Cherry® MX Low Profile switches

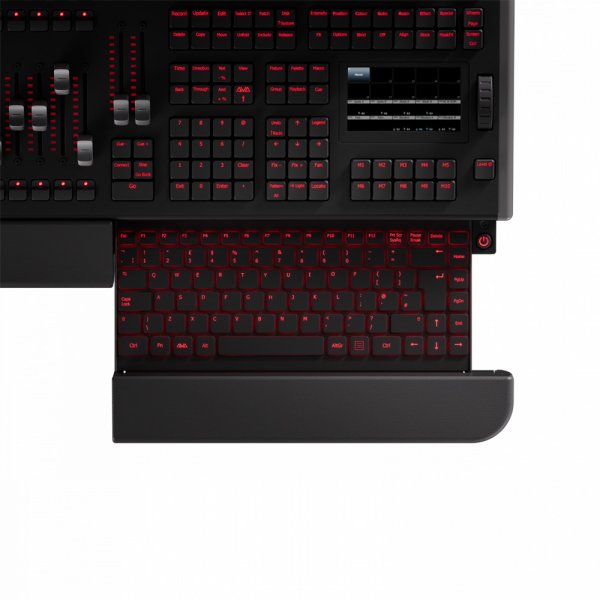

Full custom backlit QWERTY keyboard in drawer, keys identical to program panel
4 x Neutrik XLR on primary network port, 1 x Neutrik XLR on secondary network port, internally switched and managed
GPIO with 4 inputs and 4 outputs on 15 Pin D sub connector
15 ultra high resolution touch sensitive playback encoders with push function, and RGB encoder indicator
2 x 14” 850 nits 1920x1200 capacitive touch main screens with adjustable brightness, mounted on folding panel
LED desk reading light in panel above screens and over rear panel
MIDI in, Loop & Out port in DIN 5, SMTP in/loop out, Foot trigger input, Audio trigger Input,
Supports 2 x additional external DisplayPort 1920*1080 touchscreens
5 x custom RGB backlit optical attribute encoders
Dedicated level wheel and onscreen level indication
4 x isolated DMX outputs via 5 pin XLR connectors
SMPTE RTU Timecode in and Loop out via 3 pin XLR with transformer isolation

UNIT DIMENSIONS
(W X D X H)

6 8 0 X 4 5 0 X 24 0 MM
(SCREENS UP)
6 8 0 X 4 5 0 X 15 0 MM
(SCREENS DOWN)

WEIGHT:

UNDER 32KG / 70 LBS
