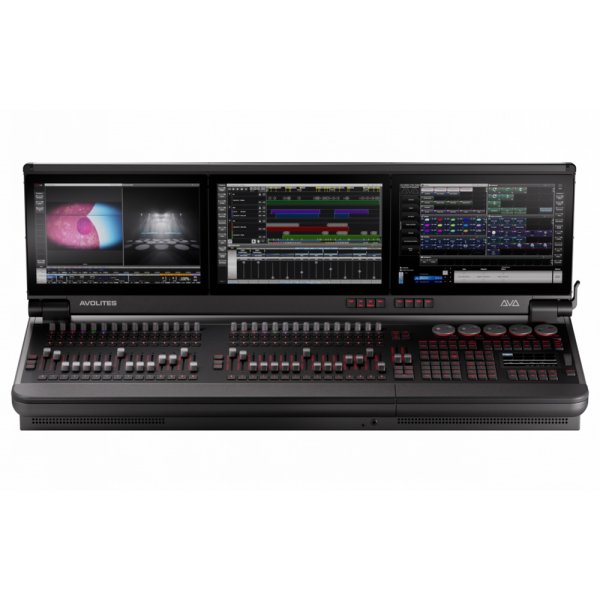

Avolites Diamond（エボライツダイヤモンド）D7-330

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

特徴

Generative, animation-based pixel mapping
Quicksketch labelling for ultimate personalisation
Powerful multi-user networking with any Titan console
Create huge effects in seconds with Key Frame Shapes
Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
Expand DMX channel capacity with Titan Net Processors
Synergy-ready. Add any Ai product to unlock seamless video integration

仕様

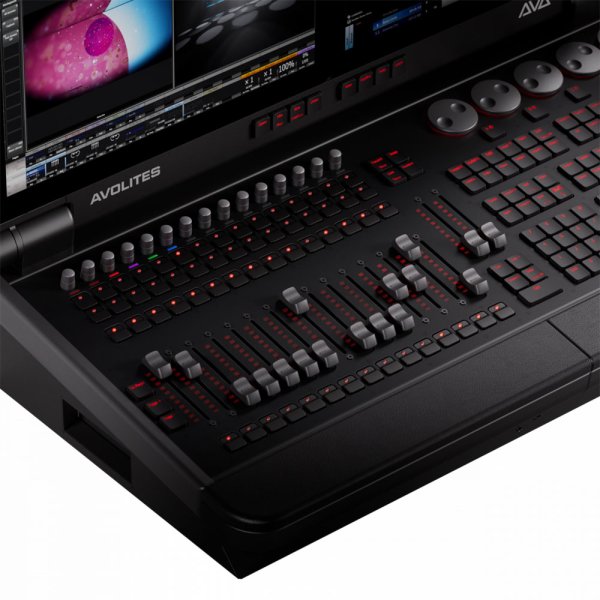

30 Motorised touch-sensitive faders, with designer fader cap and RGB fader indicator
120 C&K playback function buttons with positive haptics for timing, designer button cap

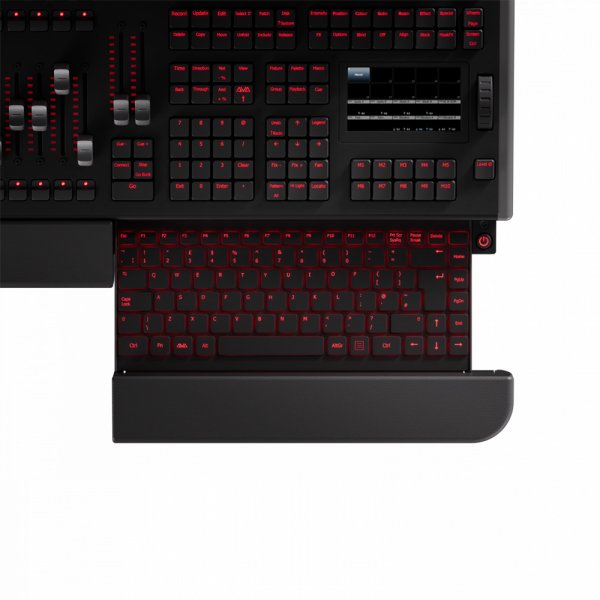

Full custom backlit QWERTY keyboard in drawer
8 X Neutrik 5-pin XLR , optically and galvancially isoclated with halo assignement indicators
GPIO with 4 inputs and 4 outputs on 15 Pin D sub connector
Dual, motorised, touch-sensitive, master cue list fader with 9 control buttons
3 x 14” 850 nits 1920x1200 capacitive touch main screens with adjustable brightness
Dedicated level wheel and onscreen level indication
4 x Neutrik XLR on primary network port, 1 x Neutrik XLR on secondary network port, internally switched and managed
Supports 1 x additional external DisplayPort 1920*1080 touchscreens
30 Ultra-high resolution touch sensitive playback encoders with push function, plus 5 custom RGB backlit attribute encoders

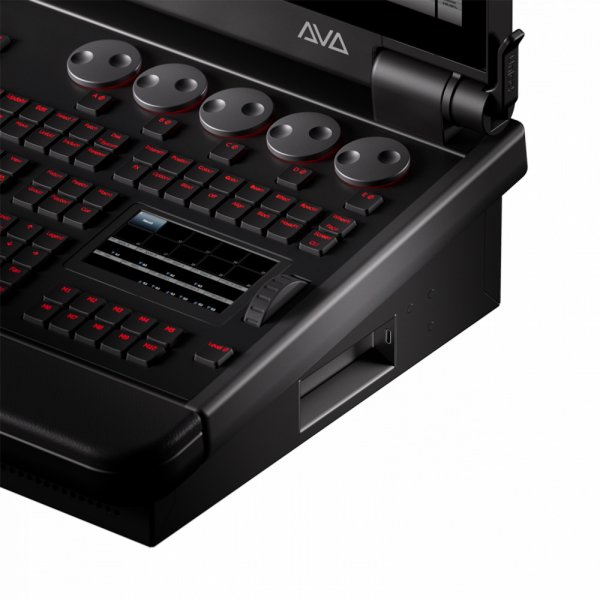

1 x 4.3” 850 nits 800 x 480 capacitive touch macro and workspace screen with adjustable brightness
LED desk reading light in panel above screens and over rear panel
SMPTE RTU Timecode in and Loop out via 3 pin XLR with transformer isolation
UNIT DIMENSIONS
(W X D X H)

1070 X 4 4 0 X 24 0 MM
(SCREENS UP)
1070 X 4 4 0 X 16 0 MM
(SCREENS DOWN)

WEIGHT:

UNDER 32KG / 70 LBS
