ENTTEC DIN Ethergate Mk2（DIN イーサゲート Mk2） [71031]

Next-generation Ethernet to DMX/RDM gateway

The DIN Ethergate Mk2 is a reliable DMX node designed for architectural, commercial, or entertainment projects. It supports 2 Universes of bi-directional DMX to DMX512-A conversion with ArtRDM support, and Overdrive Mode enables control of up to 1,024 channels per port at 500Kbps (works only with DMX500K-compatible fixtures). Dual Ethernet ports, one with PoE, allow easy daisy-chaining, while configuration and firmware updates are managed via a localhost web interface. Its slim, 4 DIN-module housing offers flexible mounting options and user-friendly wiring with pluggable terminal blocks.

特徴

Easy web page configuration
The configuration is managed through the localhost web interface to simplify commissioning and updates as well as to allow the DIN Ethergate Mk2 to be configured from any computer on your network.

Sync mode
All ENTTEC Ethernet hardware accepts sACN Sync as well as ArtSync to fully synchronize Art-Net data for all output ports and across your installation when receiving Art-Net from the same source.

Flexible power options

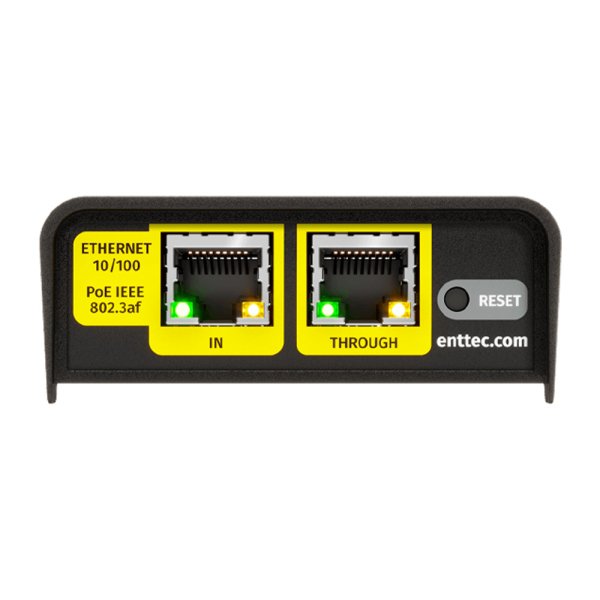

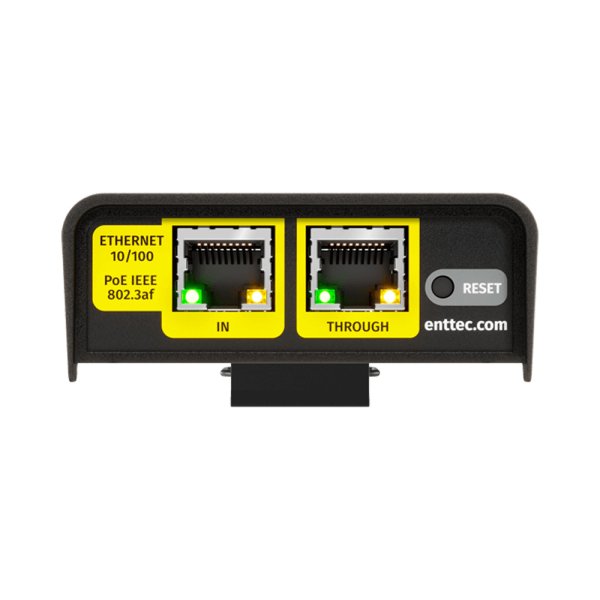

Power the DIN Ethergate using IEEE 802.3af PoE (Power over Ethernet) or DC 12-24v input. NOTE: when daisy-chained in series, only the first device will receive PoE. Subsequent devices require PoE injector individually to be powered via an Ethernet port.

Choice of mounting options

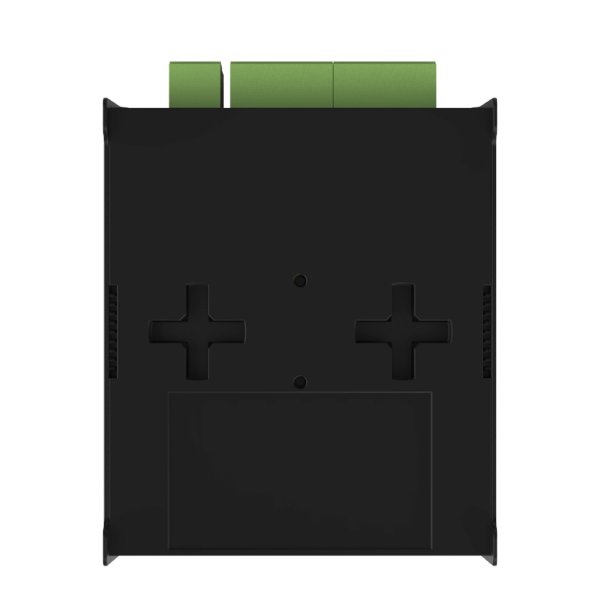

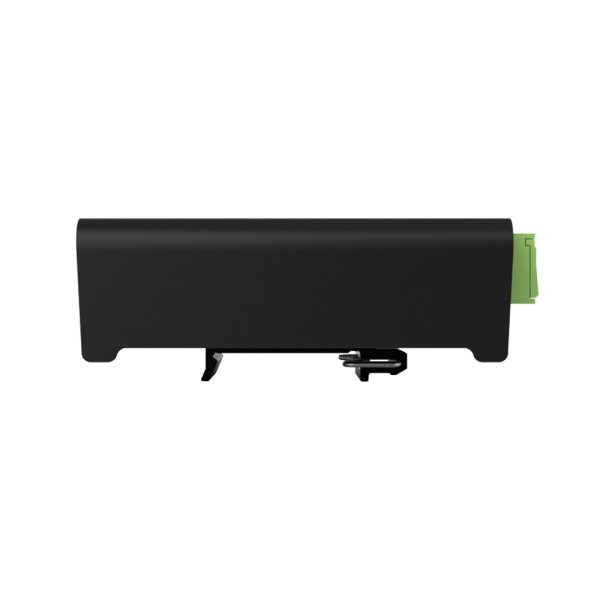

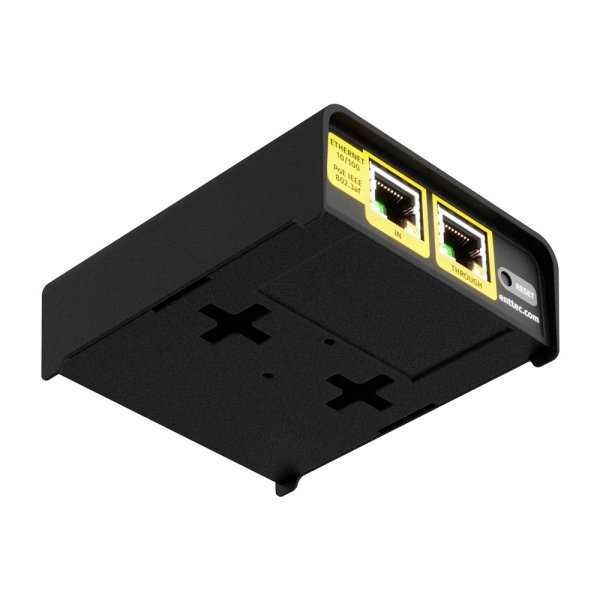

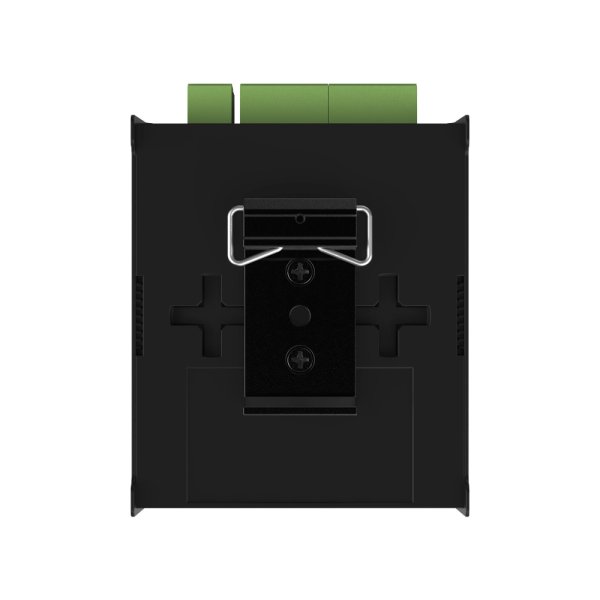

Featuring a 4-DIN-module electrically-insulated housing, the DIN Ethergate MK2’s slim form includes a DIN-rail clip enabling attachment to a TS35 DIN-rail alongside the option to wall mount the device in any orientation.

Time-saving + installer-friendly

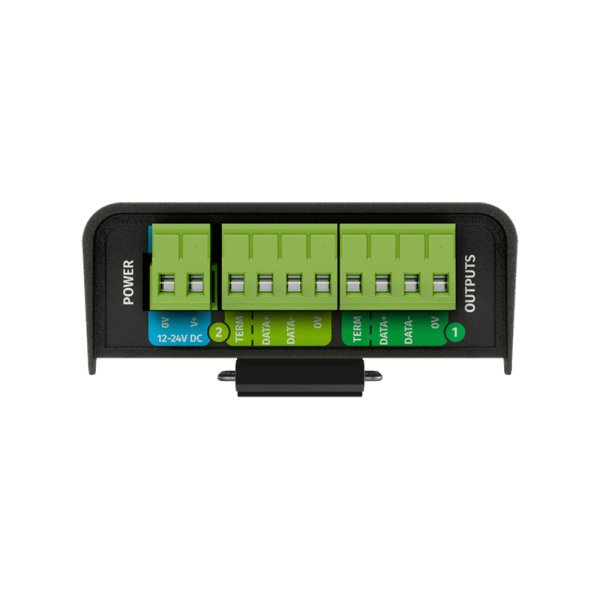

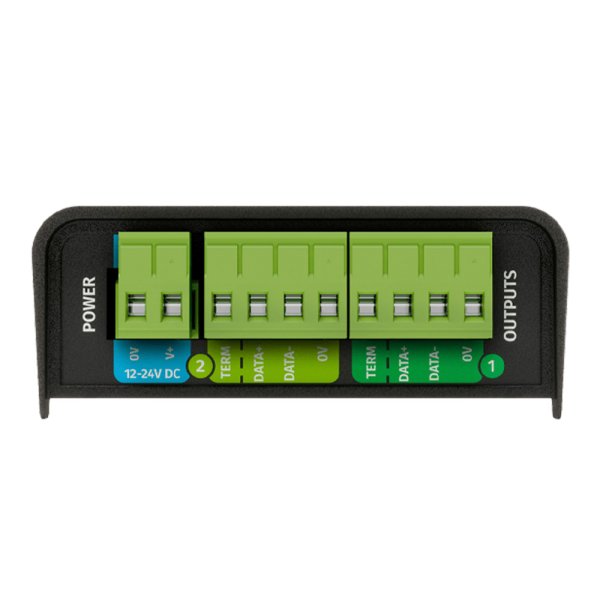

Our Ethernet to DMX converter is packed with installer-friendly features including pluggable terminal connectors and inbuilt DMX termination to simplify wiring. Also, a ‘Current Port Buffer’ within the web interface allows live DMX values to be viewed from the web interface to troubleshoot your installation. Upon receiving power, the device is ready to go within seconds.

Overdrive Mode
Output data at a higher transmission rate (500Kbps) to control of up to 2 Universes per port for DMX500K-compatible fixtures. IMPORTANT: DMX500K is incompatible with standard DXM512-A fixtures and does not conform to ANSI E1.11 – 2024. Do not use Overdrive Mode with unsupported fixtures. ENTTEC’s DMX Neon Flex is a compatible fixture supporting Overdrive Mode.

仕様

Input voltage 12-24V DC
Max. power draw 7W
Max. heat dissipation 7W
Operating temperature 0°C to 50°C /32°F to 122°F
Operating humidity 5 to 95% (non-condensing)
Data input eDMX (Art-Net, sACN, ESP or KiNet protocols) via 2 x RJ45 ports
Data output DMX512-A/RDM (250 Kbps) / DMX500K (500 Kbps) – via 2 x 4-pin Phoenix ports
Max. channels DMX512-A: 1,024 (2U) / DMX500K: 2,048 (4U)
DMX & RDM timings break time: 300ms / Mark after break (MAB): 15ms
Art-Net merging 2 sources
Max. refresh rate 44FPS
Network speed 10/100Base-T
Power over Ethernet IEEE 802.3af
Network configuration static (default 192.168.0.10) / DHCP
Firmware updates via web interface
Body material ABS plastic
IP rating IP20
LED indicators forward-facing status LED plus network link/activity (integrated into RJ45 ports)
Mounting options surface & TS35 DIN-rail mount
Unit dimensions 100.5mm x 72.25mm x 34mm
Unit weight 0.11kg / 0.24lbs
Shipping dimensions 140mm x 140mm x 40mm
Shipping weight 0.16kg / 0.35lbs
Warranty 3-year return to the base manufacturer warranty
Compliance RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
