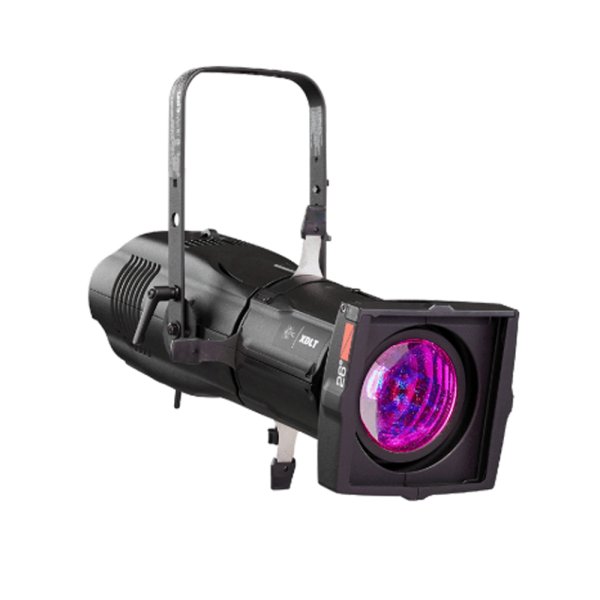

ETC Source Four LED Series 3 Daylight HDR（ソースフォーLED シリーズ3 デイライトHDR）

仕様

Source
LED details 90 Lumileds LUXEON®C and CZ
Max lumens Lustr X8:10,889
Daylight HDR:14,214
Lumens per watt Lustr X8:35
Daylight HDR:42
L70 rating(hours to 70% output) >54,000

Color
Colors used Lustr X8:Deep Red, Red, Amber, Lime,Green, Cyan, Blue, Indigo
Daylight HDR:Deep Red, Red, Mint,Cyan, Blue, Indigo
Color temperature range 1900–10450 K
Calibrated array Yes
Red shift Yes (selectable)

Optical
Beam angle range Swappable lens tubes between 5°–90°
Gate size 80 mm
Aperture size 6.25–17.5 in (depending on lens tube)
Pattern projection Yes
Pattern size A or B
Camera flicker
control/Hz range Yes: 5 kHz, 25 kHz
Notes Can be used with LED CYC and Fresnel adapters

Control
Input method 5-Pin XLR, Multiverse wireless and NFC
Protocols
DMX-512, RDM, City Theatrical
Multiverse, NFC
Modes (footprint) 5 modes (1–12 channels)
RDM configuration Yes
UI type Full color display
Local control Yes
Onboard presets Yes (12)
Onboard sequences Yes
Onboard effects No
FixtureLink Yes
Notes
15-bit virtual dimming engine

All LED sources experience some lessening of light output and some color
shift over time. LED output will vary with thermal conditions. In individual
situations, LEDs will be used for different durations and levels. This can
eventually lead to minor alterations in color performance, necessitating
slight adjustments to presets, cues or programs.

Electrical
Voltage range 100–240 VAC 50/60 Hz
Input method AC via Neutrik powerCON TRUE1 TOP
Inrush
40 A at 120 V (First half-cycle)
80 A at 230 V (First half-cycle)
Fixtures per circuit*
5 (link up to 4 via Power Thru
connector)
Note: TRUE1 connector rated for 20 A
(120 V / 60 Hz) and 16 A (240 V /50 Hz)
Wattage typical
Direct at Full (Idle)
Lustr X8:
307 (6.3) W at120 V
305 (4.7) W at 230 V
Daylight HDR:
340 (6.3) W at 120 V
330 (4.7) W at 230 V
Current draw
Lustr X8:
2.6 A at 120 V
1.35 A at 230 V
Daylight HDR:
2.85 A at 120 V
1.5 A at 230 V
*All measurements are for 120 V, 60 Hz. Results may vary in different regions.

Thermal
Ambient operating temp 0°C–40° C (32°F–104° F)
Fan (controllable) Yes (yes)
Droop compensation Yes
dB range 34 dBA average at 1 m
BTUs/hour
Lustr X8:1,047
Daylight HDR:1,159

Physical
Materials Die-cast, all metal housing
Color options Black, white, silver, or custom color
Mounting options Yoke, cyc floor stand (sold separately)
IP rating IP20
Weight
With barrel: 8.87 kg (19.55 lb)
Without barrel: 6.76 kg (14.90 lb)
Included accessories
Hanging yoke, 1.5 m power cable,
A-size gobo holder, c-clamp*
Notes
-Positive locking double-clutch fixture body
-Slot for glass or stainless steel patterns and soft focus diffuser
-Wide accessory slot with sliding cover for motorized pattern device or iris
*(not included with CE fixtures)

Warranty
Fixture 5 years
LED array 10 years

Regulatory and Compliance
Approved regulatory standards
cETLus Listed
Conforms to UL1573
Certified to C22.2 C22.#166
CE Compliant
