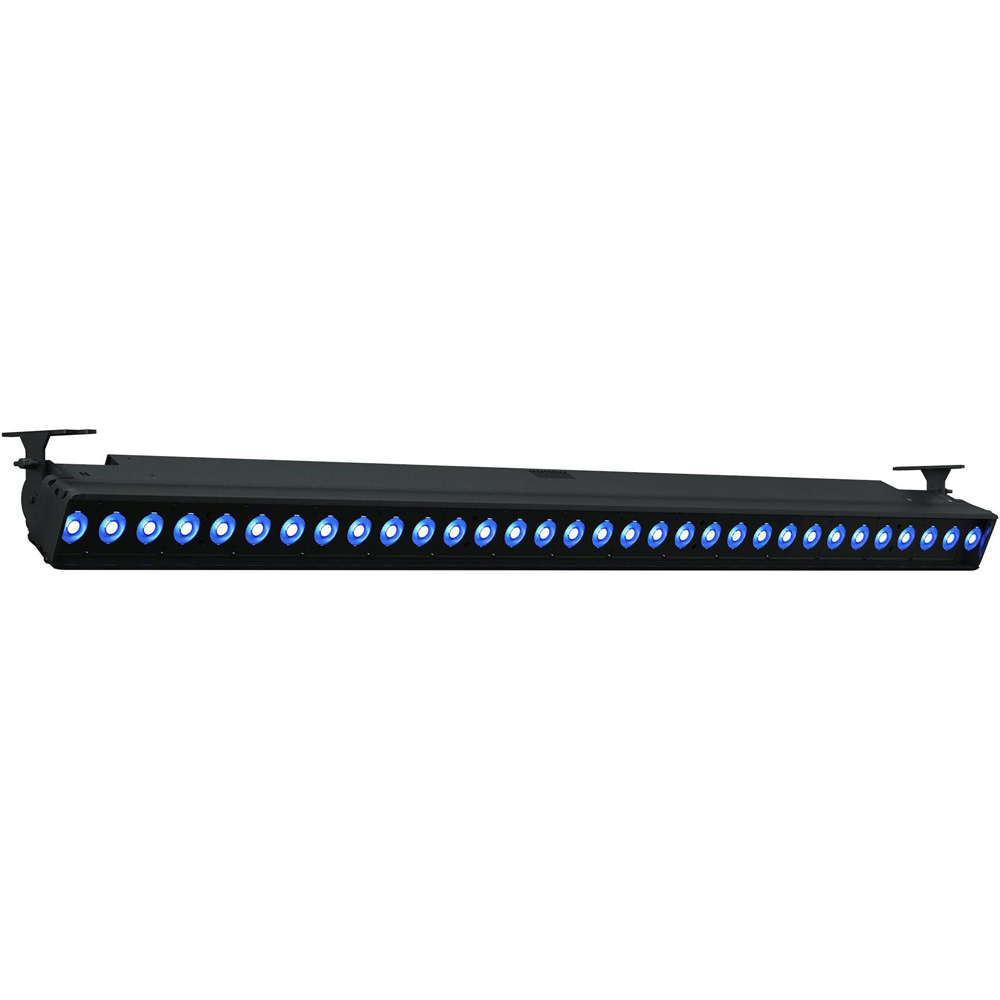

ETC ColorSource Linear（カラーソースリニア）2m

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

特徴

力強い明かりを洗練された流線型の筐体に詰め込んだストリップライト。RGBにライムを加えた独自の4色カラーミックスを採用し、他の低価格帯器具と一線を画した驚きの色味・深みを提供するLED照明器具。

仕様

SOURCE
40 Lumileds LUXEON® Z LEDs (per segment)
Linear 1: 3,039 Max lumens
Linear 1 DB: 2,978 Max lumens
Linear 1: 28.1 Lumens per watt
Linear 1 DB: 27.6 Lumens per watt
L70 rating (hours to 70% output): 55,000 hours*

COLOR
Linear 1: red, green, blue, lime
Linear 1 Deep Blue: red, green, indigo, lime
Color mixing fixture
Calibrated array
No red shift

OPTICAL
14.5° (secondary lenses available for multiple beam-spread options)
Gate size: N/A
7.5 in / 190 mm aperture size
No pattern projection
No pattern size
1,200 Hz (default) and 25,000 Hz (via RDM)

ELECTRICAL
100-240 VAC 50/60 Hz
powerCON power in and thru
35 A / 35.6 A / 67.5 A at 120 V (First half-cycle)
49 A / 85.6 A / 153 A at 240 V (First half-cycle)
9 cells (15 A power thru connector)
10 cells (R20 module or similar)
Linear 1: 115 W at 120 V / 112 W at 240 V
Linear 2: 218 W at 120 V / 213 W at 240 V
Linear 4: 438 W at 120 V / 426 W at 240 V
Linear 1 DB: 110 W at 120 V / 108 W at 240 V
Linear 2 DB: 218 W at 120 V / 214 W at 240 V
Linear 4 DB: 440 W at 120 V / 428 W at 240 V
Linear 1: 0.95 A at 120 V / 0.48 A at 240 V
Linear 2: 1.82 A at 120 V / 0.91 A at 240 V
Linear 4: 3.68 A at 120 V / 1.82 A at 240 V
Linear 1 DB: 0.92 A at 120 V / 0.46 A at 240 V
Linear 2 DB: 1.82 A at 120 V / 0.91 A at 240 V
Linear 4 DB: 3.70 A at 120 V / 1.83 A at 240 V

THERMAL
Ambient operating temp: 0°–40° C (32°–104° F)
non-controllable fan
Droop compensation
24.8 dBa average at 1 m (each cell)
Linear 1: 392.38/ 382.14 BTUs/hour (120 V / 240 V)
Linear 2: 743.82/ 726.76 BTUs/hour (120 V / 240 V)
Linear 4: 1,494.46/ 1,453.51 BTUs/hour (120 V / 240 V)
Linear 1 DB: 375.32/ 368.50 BTUs/hour (120 V / 240 V)
Linear 2 DB: 743.82/ 730.19 BTUs/hour (120 V / 240 V)
Linear 4 DB: 1,501.28/ 1,460.34 BTUs/hour (120 V / 240 V)

CONTROLS
DMX512 via 5-pin XLR or RJ45 connector
DMX512/RDM
4 modes for footprint
RDM configuration
UI type: Seven-segment, three-button interface
Local control
12 Onboard presets
5 Onboard sequences
No onboard effects
Fixture-to-fixture control
15-bit virtual dimming engine
*Note about LED luminaire lifetime:
ETC utilizes a nationally recognized third-party lab for luminaire testing according to IES LM-84. See etcconnect.com/About/News/ETC-Fixture-Ratings-and-Warranties-Extended.aspx.

PHYSICAL
ColorSource Linear Dimensions*

MODEL HEIGHT WIDTH DEPTH
inches mm inches mm inches mm
Linear 1 4.29 109 19.61 499 6.04 153
Linear 2 4.29 109 39.37 1000 6.04 153
Linear 4 4.29 109 78.40 1991 6.04 153
*Does not include mounting hardware

ColorSource Linear Weights*

MODEL WEIGHT* SHIPPING WEIGHT
lbs kgs lbs kgs
Linear 1 6.40 2.90 7.90 3.58
Linear 2 20.10 9.12 23.50 10.66
Linear 4 37.50 17.01 39.87 18.08
* Does not include mounting hardware
