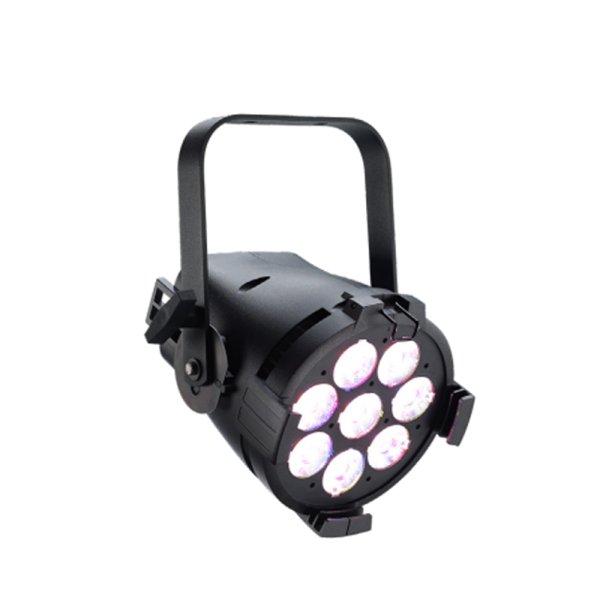

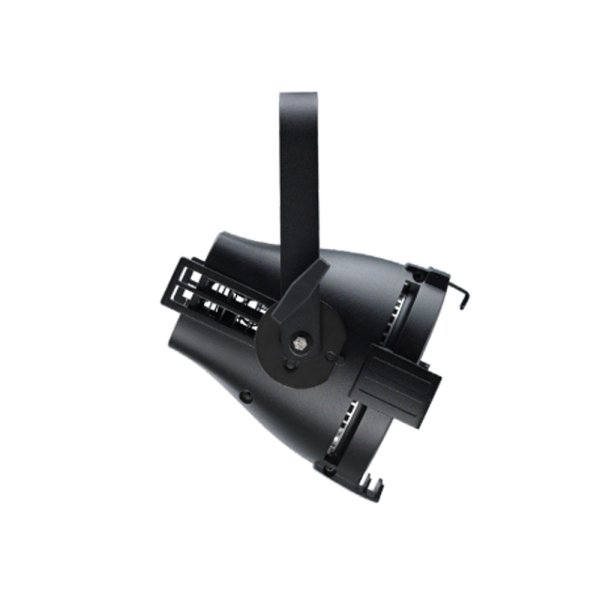

ETC ColorSource PAR Deep Blue（カラーソースパーディープブルー）

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

特徴

プロフェッショナル仕様のLED品質を維持しつつ低価格を実現。RGBにライムを加えた独自の4色カラーミックスを採用し、他の低価格帯器具と一線を画した驚きの色味・深みを提供するLED照明器具。

About the ColorSource Array options - Original vs. Deep Blue
Original ColorSource fixtures use an RGB-L array where the ‘B’ represents the use of blue LEDs. ColorSource Deep Blue replaces those blue LEDs with a deeper ‘Royal Blue’ (indigo) LED. How does this impact your color mixing? Please reference the color chart below.

Original ColorSource fixtures can reach any color within the dark shaded triangle while the ColorSource Deep Blue fixtures can reach any color within the light shaded triangle. While much of these areas overlap, there is a portion of each range that can only be reached by the respective color arrays (A=Original, B=Deep Blue).

仕様

SOURCE
40 Lumileds LUXEON® Z LED
PAR: 3,039 Max lumens
PAR DB: 2,429 Max lumens
PAR: 28.1 Lumens per watt
PAR DB: 27.6 Lumens per watt
L70 rating (hours to 70% output): 55,000 hours*
COLOR
PAR: red, green, blue, lime
PAR Deep Blue: red, green, indigo, lime
Color mixing
Calibrated array
No red shift
OPTICAL
14.5° (secondary lenses available for multiple beam-spread options)
Gate size: N/A
7.5 in / 190 mm aperture size
No pattern projection
No pattern size
1,200 Hz (default) and 25,000 Hz (via RDM)
ELECTRICAL
100-240 VAC 50/60 Hz
powerCON power in and thru
35 A at 120 V (First half-cycle)
49 A at 240 V (First half-cycle)
9 fixtures (15 A power thru connector)
10 fixtures (R20 module or similar)
90 W at 120 V / 89 W at 240 V
0.75 A at 120 V / 0.4 A at 240 V
THERMAL
Ambient operating temp: 0°–40° C (32°–104° F)
Fan (controllable)
Droop compensation
24.8 dBa average at 1 m (each cell)
307.08 / 303.67 BTUs/hour (RGB-L / DB)
CONTROLS
DMX512 via 5-pin XLR or RJ45 connectors Input method
DMX512/RDM
4 modes for footprint
RDM configuration
UI type: Seven-segment, three-button interface
Local control
12 Onboard presets
5 Onboard sequences
No onboard effects
Fixture-to-fixture control
15-bit virtual dimming engine
*Note about LED luminaire lifetime:
ETC utilizes a nationally recognized third-party lab for luminaire testing according to IES LM-84. See etcconnect.com/About/News/ETC-Fixture-Ratings-and-Warranties-Extended.aspx.

PHYSICAL
ColorSource PAR Dimensions*

MODEL HEIGHT WIDTH DEPTH
inches mm inches mm inches mm
ColorSource PAR 12.20 310 7.98 203 9.45 240
*Does not include mounting hardware

ColorSource PAR Weights*

MODEL WEIGHT* SHIPPING WEIGHT
lbs kgs lbs kgs
ColorSource PAR 8.3 3.8 10.1 4.6
* Does not include mounting hardware
