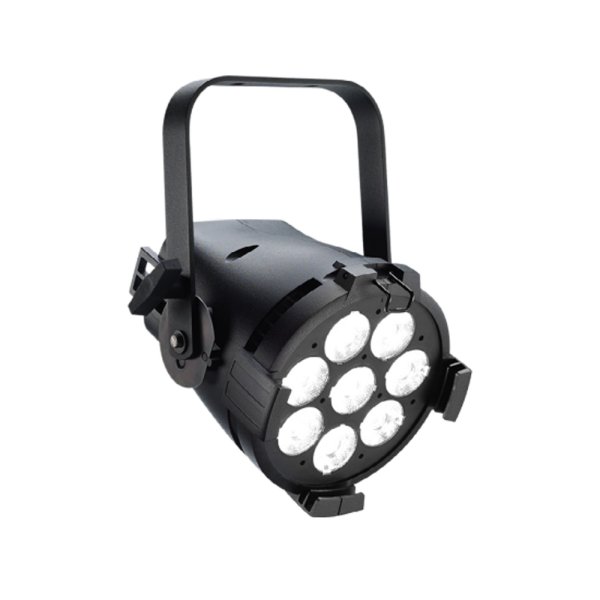

ETC ColorSource PAR Pearl（カラーソースパーパール）

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

特徴

プロフェッショナル仕様のLED品質を維持しつつ低価格を実現。RGBにライムを加えた独自の4色カラーミックスを採用し、他の低価格帯器具と一線を画した驚きの色味・深みを提供するLED照明器具。

仕様

SOURCE
40 Lumileds LUXEON® Z LED
PAR: 3,039 Max lumens
PAR DB: 2,429 Max lumens
PAR: 28.1 Lumens per watt
PAR DB: 27.6 Lumens per watt
L70 rating (hours to 70% output): 55,000 hours*
COLOR
PAR: red, green, blue, lime
PAR Deep Blue: red, green, indigo, lime
Color mixing
Calibrated array
No red shift
OPTICAL
14.5° (secondary lenses available for multiple beam-spread options)
Gate size: N/A
7.5 in / 190 mm aperture size
No pattern projection
No pattern size
1,200 Hz (default) and 25,000 Hz (via RDM)
ELECTRICAL
100-240 VAC 50/60 Hz
powerCON power in and thru
35 A at 120 V (First half-cycle)
49 A at 240 V (First half-cycle)
9 fixtures (15 A power thru connector)
10 fixtures (R20 module or similar)
90 W at 120 V / 89 W at 240 V
0.75 A at 120 V / 0.4 A at 240 V
THERMAL
Ambient operating temp: 0°–40° C (32°–104° F)
Fan (controllable)
Droop compensation
24.8 dBa average at 1 m (each cell)
307.08 / 303.67 BTUs/hour (RGB-L / DB)
CONTROLS
DMX512 via 5-pin XLR or RJ45 connectors Input method
DMX512/RDM
4 modes for footprint
RDM configuration
UI type: Seven-segment, three-button interface
Local control
12 Onboard presets
5 Onboard sequences
No onboard effects
Fixture-to-fixture control
15-bit virtual dimming engine
*Note about LED luminaire lifetime:
ETC utilizes a nationally recognized third-party lab for luminaire testing according to IES LM-84. See etcconnect.com/About/News/ETC-Fixture-Ratings-and-Warranties-Extended.aspx.

PHYSICAL
ColorSource PAR Dimensions*

MODEL HEIGHT WIDTH DEPTH
inches mm inches mm inches mm
ColorSource PAR 12.20 310 7.98 203 9.45 240
*Does not include mounting hardware

ColorSource PAR Weights*

MODEL WEIGHT* SHIPPING WEIGHT
lbs kgs lbs kgs
ColorSource PAR 8.3 3.8 10.1 4.6
* Does not include mounting hardware
