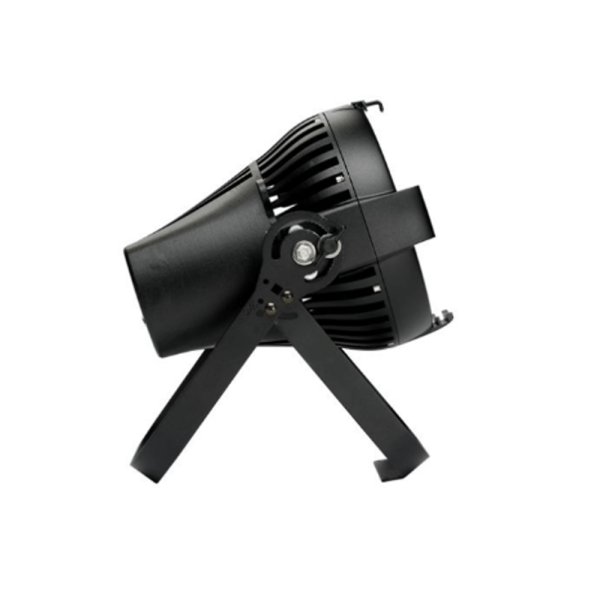

ETC Desire D60 Vivid(デザイヤ D60 ビビッド)

ETC Desire D60 Vivid(デザイヤ D60 ビビッド)

販売価格はお問い合わせください。

商品詳細

特徴

ETC独自の7色カラーシステムが、幅広いスペクトルをカバーし、力強い色と明るさを実現。堅牢なダイキャスト製ボディ、ノイズフリーのファンレス動作、豊富なオプションレンズで幅広い色作りを可能にしたLED照明器具。

仕様

Source
LED details 60 Lumileds LUXEON®Rebel LED
Max lumens Vivid: 3,760
Lustr+: 4,317
Lumens per watt Vivid: 28.8
Lustr+: 33.33
L70 rating (hours to 70%
output)50,000 hours

Color
Colors used Lustr+:Red, Amber, Green, Cyan,Blue, Indigo, White
Vivid:Red, Red-Orange, Amber,Green, Cyan, Blue, Indigo
Color temperature range 2700–6500K
Calibrated array Yes
Red shift Yes

Optical
Beam angle range 8°–71°
Aperture size 9 in
Pattern projection No
Pattern size N/A
Camera flicker
control/Hz range Yes: 900–25,000 Hz
Notes Secondary lenses available for multiple beam-spread options

Control
Input method DMX512 via 5-pin XLR
Protocols DMX512/RDM
Modes (footprint) See page 6
RDM configuration Yes
UI type LCD
Local control Yes
Onboard presets Yes
Onboard sequences Yes
Onboard effects No
Fixture-to-fixture control Yes
Notes 15-bit virtual dimming engine

Electrical
Voltage range 100–240 VAC 50/60 Hz
Input method Neutrik powerCON® in and thru Requires power from non-dimmable source
Inrush 15 A at 120 V (First half-cycle)
40 A at 240 V (First half-cycle)
Fixtures per circuit* 9 (15 A via power thru)
10 (R20 via module or similar)
Wattage typical 161 W
Current draw 1.21 A at 120 V
0.57 A at 240 V
*All measurements are for 120 V, 60 Hz. Results may vary in different regions.

Thermal
Ambient operating temp -20°–40°C (-4°–104°F)
Fan (controllable) Yes (yes)
Droop compensation Yes
dB range 25 dBa average at 1 m (more detailson page 8)
BTUs/hour 549

Physical
Materials Die-cast, all metal housing
Color options Black, white, silver, or custom color
Mounting options Yoke
IP rating IP20
Weight 8.7 kg (19.1lb)
Included accessories Very Narrow Round diffuser, power cable (see page 7), optional yoke/floor stand

Warranty
Fixture 5 years
LED array 10 years

Regulatory and Compliance
Approved regulatory standards
UL 1573
CSA C22.2 No. 166
CE Compliant
EAC Compliant
