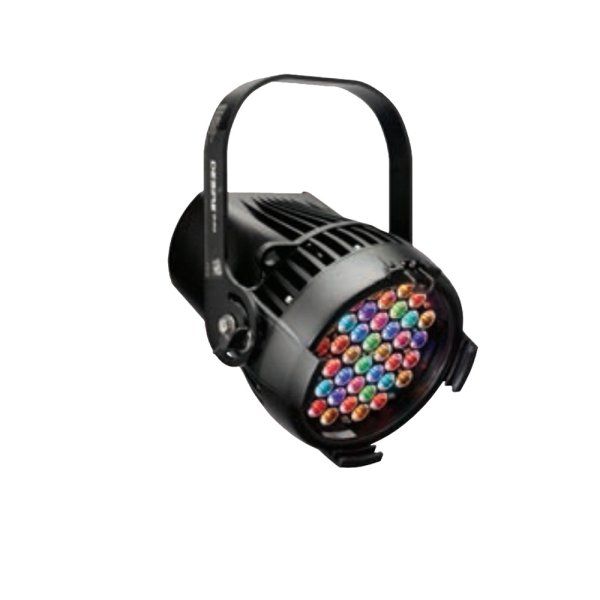

ETC Desire D40 Vivid（デザイヤ D40 ビビッド）

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

特徴

ETC独自の7色カラーシステムが、幅広いスペクトルをカバーし、力強い色と明るさを実現。堅牢なダイキャスト製ボディ、ノイズフリーのファンレス動作、豊富なオプションレンズで幅広い色作りを可能にしたLED照明器具。

仕様

Source
LED details 40 Lumileds LUXEON®Rebel LED
Max lumens
Studio HD: 3,194
Studio Daylight: 4,332
Studo Tungsten: 5,023
Lumens per watt
Studio HD: 33.2
Studio Daylight: 43.1
Studo Tungsten: 52.8
L70 rating (hours to 70% output) 50,000 hours

Color
Colors used
Studio HD: Red, Amber, Green/Cyan,
Blue, Warm White, Cool White
Studio Daylight: White
Studio Tungsten: White
Color temperature range
Studio HD: 2700–5600 K
Studio Daylight: 3200 K
Studio Tungsten: 5600 K
Calibrated array
Studio HD: Yes
Studio Daylight: No
Studio Tungsten: No
Red shift Yes (Studio HD)

Optical
Beam angle 11°
Aperture size 7.5in
Pattern projection No
Pattern size N/A
Camera flicker
control/Hz range Yes: 900–25,000Hz
Notes
Secondary lenses available for multiple beam-spread options

Control
Input method DMX512 via 5-pin XLR
Protocols DMX512/RDM
Modes (footprint) See page 6
RDM configuration Yes
UI type LCD
Local control Yes
Onboard presets Yes
Onboard sequences Yes
Onboard effects No
Fixture-to-fixture control Yes
Notes 15-bit virtual dimming engine

Electrical
Voltage range 100–240 VAC 50/60 Hz
Input method
Neutrik powerCON in and thru Requires power from non-dim source
Inrush (first half-cycle)
15 A at 120 V
40 A at 240 V
Fixtures per circuit 10 (15A via power thru)*
Wattage (typical) 104
Current draw
0.88 A at 120 V
0.42 A at 240 V
*Note: All measurements are for 120 V, 60 Hz. Results may vary in different regions.

Thermal
Ambient operating temp -20°–40°C (-4°–104°F)
Fan (controllable) No
Droop compensation Yes
dB range N/A
BTUs/hour 375.32

Physical
Materials Die-cast, all metal housing
Color options Black, white, silver, or custom color
Mounting options Yoke
IP rating IP20
Weight 6.4 kg (14 lb)
Included accessories Hanging yoke, optional yoke/floor stand
Notes Easy access slots for secondary lenses and standard 7.5 inch PAR acessories

Warranty
Fixture 5 years
LED array 10 years

Regulatory and Compliance
Approved regulatory standards
UL 1573
CSA C22.2 No. 166
CE Compliant
EAC Compliant
