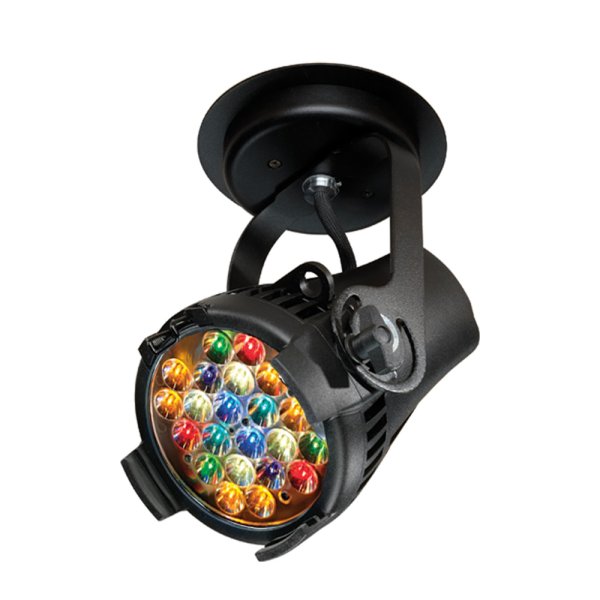

ETC Desire D22 Lustr+（デザイヤ D22 ラスタープラス）天井取り付け型

特徴

ETC独自の7色カラーシステムが、幅広いスペクトルをカバーし、力強い色と明るさを実現。コンパクトで堅牢なダイキャスト製ボディ、ノイズフリーのファンレス動作、豊富なマウントオプションやレンズで幅広い色作りを可能にしたLED照明器具。

仕様

Source
LED details 22 Lumileds LUXEON®Rebel LED
Max lumens
Lustr+: 1,499
Studio Daylight: 2,533
Studio Tungsten: 2,096
Studio HD: 1,247
Lumens per watt
Lustr+: 31
Studio Daylight: 50
Studio Tungsten: 41
Studio HD: 31
L70 rating (hours to 70%output)50,000 hours

Color
Colors used
Lustr+:Red, Amber, Green, Cyan,Blue, Indigo, White
Vivid:Red, Red-Orange, Amber,Green, Cyan, Blue, Indigo
Studio HD: Red, Amber, Green/Cyan,Blue, Warm White, Cool White
Studio Daylight: White
Studio Tungsten: White
Color temperature range 2,700–6,500 K
Calibrated array
Lustr+: Yes
Studio Daylight: No
Studio Tungsten: No
Studio HD: Yes
Red shift Yes

Optical
Beam angle 8°–71°
Aperture size 6 in
Pattern projection No
Camera flicker
control/Hz range
Yes: 900–25,000 Hz
Notes
Secondary lenses available for multiple beam-spread options

Control
Input method
DMX512 via 5-pin XLR (portable only)
Permanent power input cable
Protocols DMX-512/RDM
Modes (footprint) See page 5
RDM configuration Yes
UI type LCD
Local control Yes
Onboard presets Yes
Onboard sequences Yes
Onboard effects No
Fixture-to-fixture control Yes
Notes 15-bit virtual dimming engine

Control
Fixture-to-fixture control Yes
Notes 15-bit virtual dimming engine

Electrical
Voltage range 100–240 VAC 50/60 Hz
Input method
Requires power from a non-dimmable source
Portable: Edison, Schuko or UK13A connector
Inrush (over first half-cycle)
17 A at 120 V
25 A at 240 V
Fixtures per circuit* 20 (R20 module or similar)
Wattage typical 56.5
Current draw
0.00 A at 110 V
0.48 A at 120 V
0.00 A at 230 V
0.288 A at 240 V
*All measurements are for 120 V, 60 Hz. Results may vary in different regions.

Thermal
Ambient operating temp 0°–40° C (32°–104° F)
Fan (controllable) No
Droop compensation Yes
dB range N/A
BTUs/hour 192.778

Physical
Materials Die-cast, all metal housing
Color options Black, white, silver, or custom color
Mounting options Portable, install canopy, or track-yoke
IP rating
IP20 for portable and canopy versions
IP40 for track version
Weight 3.13 kg (6.9 lb)
Included accessories Hanging yoke

Warranty
Fixture 5 years
LED array 10 years

Regulatory and Compliance
Approved regulatory standards
UL 1573
CSA C22.2 No. 166
CE Compliant
EAC Compliant
