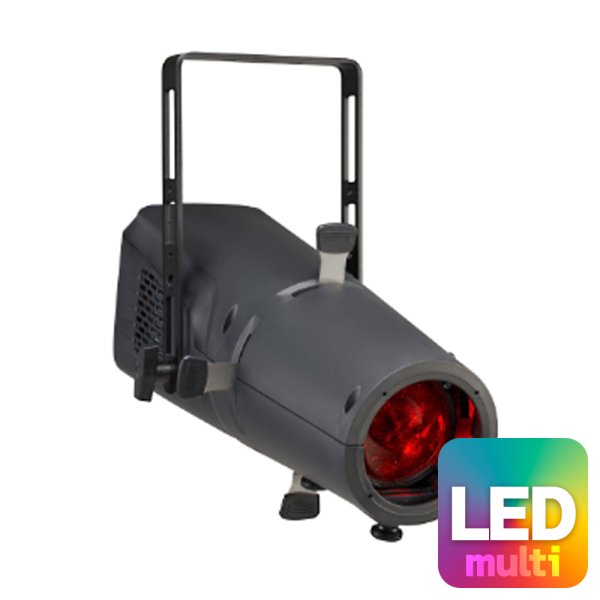

ETC ColorSource Spot jr Deep Blue（カラーソーススポット ジュニア ディープブルー）

特徴

25-50°ズーム機能を内蔵しながら、価格もサイズも"コンパクト"なスポットライト。RGBにライムを加えた独自の4色カラーミックスを採用し、他の低価格帯器具と一線を画した驚きの色味・深みを提供するLED照明器具。

仕様

Source
LED details 52 Lumileds LUXEON®C LED
Max lumens
Standard: 5,708
Deep Blue: 5,426
Max lumens per watt 44.8
L70 rating (hours to 70%output)* >54,000 hours (both variants)

Color
Colors used
Standard: Red, green, blue, lime
Deep Blue: Red, green, indigo, lime
Color temperature range Color mixing
Calibrated array Yes
Red shift No

Optical
Beam angle range Built in 25-50 degree zoom
Gate size 50 mm
Aperture size 6.25”-14”
Pattern projection Yes
Pattern size M (OD 66 mm, ID 48 mm), up to 2.03 mm (0.080 in) thick
Camera flicker
control/Hz range
1,200 Hz (default) and 25,000 Hz (via RDM)

Control
Input method DMX512 via 5-pin XLR
Protocols DMX512/RDM
Modes (footprint) 4 modes, see page 10
RDM configuration Yes
UI type Seven-segment, three-button interface
Local control Yes
Onboard presets Yes (12)
Onboard sequences Yes (5)
Onboard effects No
Fixture-to-fixture control Yes
Notes 15-bit virtual dimming engine

Electrical
Voltage range 100–240 VAC 50/60 Hz
Input method powerCON power in and thru
Inrush
35 A at 120 V (First half-cycle)
45 A at 240 V (First half-cycle)
Fixtures per circuit
7 fixtures (15 A power thru connector) or 8 fixtures (R20 module or similar)
Wattage typical/standby
166 W / 2.6 W at 120 V
162 W / 2.0 W at 240 V
Current draw
1.40 A at 120 V
0.73 A at 240 V
*Note: All measurements are for 120 V, 60 Hz. Results may vary in different regions.

Thermal
Ambient operating temp 0°–40° C (32°–104° F)
Fan (controllable) Yes (no)
Droop compensation Yes
dB range 20.2 dBa
BTUs/hour 549

Physical
Materials ABS plastic
Color options Black or white
Mounting options Yoke
IP rating IP20
Weight 5.4 kg (12 lb)
Included accessories Hanging yoke, 1.5 m power cable
Notes See page 9 for power cable options

Warranty
Fixture 5 years
LED array 10 years

Regulatory and Compliance
Approved regulatory standards
cETLus Listed
Conforms to UL 1598 Listed
Certified to CSA C22.2 No. 250 Listed
CE Compliant
EAC Compliant
