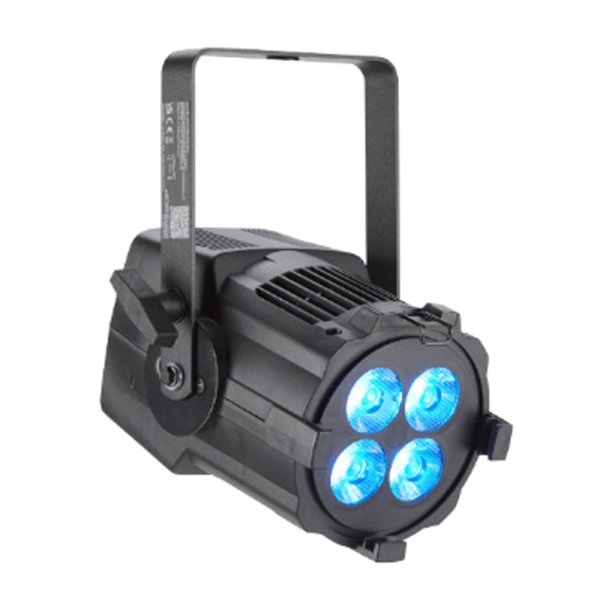

ETC ColorSource PAR jr Deep Blue(カラーソースパー ジュニア ディープブルー)

ETC ColorSource PAR jr Deep Blue(カラーソースパー ジュニア ディープブルー)

販売価格はお問い合わせください。

商品詳細



特徴

ColorSource PAR jrはその名の通り多くの現場に導入されているColorSource PARのコンパクトバージョンです。驚くほど小さなフォルムで、2300ルーメン以上で明さを提供します!軽量でファンレス設計のため、完全な静寂を必要とするステージ上やオンセット用途にも最適です。

仕様

Source
LED details 16 Lumileds LUXEON®C
Max lumens
PAR jr: 2290
PAR jr DB: 2061
Lumens per watt
PAR jr: 31.8
PAR jr DB: 28.6
L70 rating(hours to 70% output)* 54,000 hours

Color
Colors used
PAR jr: Red, Green, Blue, Lime
PAR jr Deep Blue: Red, Green, Indigo,Lime
Color temperature range Color mixing
Calibrated array Yes
Red shift No

Optical
Beam angle range 15.3° (secondary lenses available for multiple beam-spread options)
Gate size N/A
Aperture size 127 mm (5 in)
Pattern projection No
Pattern size N/A
Camera flicker
control/Hz range 1.2 kHz (default) and 25 kHz (via RDM)

Control
Input method 5-Pin XLR
Protocols DMX-512, RDM
Modes (footprint) 4 modes (1–6 channels)
RDM configuration Yes
UI type Seven-segment, three-button interface
Local control Yes
Onboard presets Yes (12)
Onboard sequences Yes (5)
Onboard effects No
FixtureLink Yes

Electrical
Voltage range
ETL:100–125 VAC 50/60 Hz
CE:100–240 VAC 50/60 Hz
Input method AC via Neutrik powerCON®
Inrush (first half-cycle)
120 V: 14.5 A
240 V: 28.7 A
Fixtures per circuit on standard R20 breaker
18(link up to 17 via Power Thruconnector)*
Note: powerCON connector rated for
20 A (120 V / 60 Hz) and
16 A (240 V / 50 Hz)
Wattage (typical)
120 V: 72 W
240 V: 72 W
Current draw
120 V: 0.6 A
240 V: 0.3 A
*Note: All measurements are for 120 V, 60 Hz. Results may vary in different regions.

Thermal
Ambient operating temp 0°–40° C (32°–104° F)
Fan (controllable) No
Droop compensation Yes
dB range Fan-free
BTUs/hour (120 V) 246

Physical
Materials ABS plastic
Color options Black or white
Mounting options Yoke (yoke with floor stand available as an optional accessory)
IP rating IP20
Weight 2.54 kg (5.6 lb)
Included accessories Yoke, power cable

Warranty
Fixture 5 years
LED array 10 years

Regulatory and Compliance
Approved regulatory standards
cETLus Listed
Conforms to UL 1598 Listed
Certified to CAN/CSA C22.2 No. 250

参照



■メーカーサイト
https://www.etcconnect.com/Products/Entertainment-Fixtures/ColorSource-PAR-jr/Features.aspx
