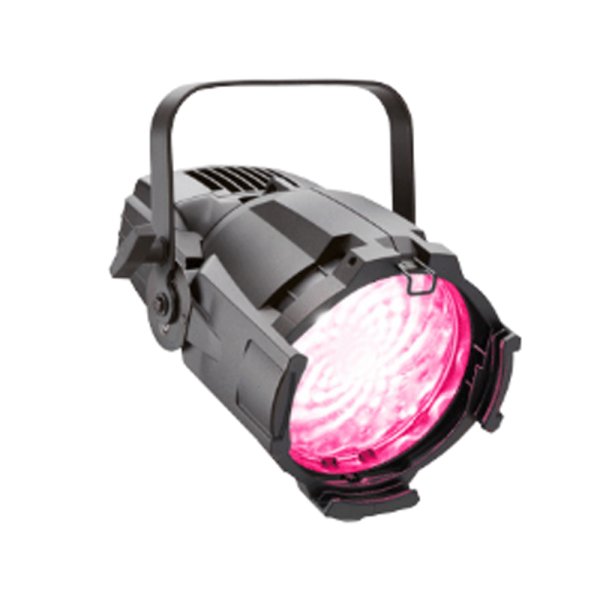

ETC Source 4WRD Color II PARNel Fixture Body（ソースフォワードカラー II パーネル）ボディー付き

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

特徴

定期的なランプ交換や、カラーフィルター交換が不要になり、既存レンズチューブやアクセサリーをそのまま使用可能。RDM対応のDMX制御で、快適に多様な明かり作りを実現。ハロゲンランプタイプのソースフォーが、わずか数分でRGBA配列の灯具へと生まれ変わるLED化キットです。

仕様

Source
LED details Nichia LEDs*Not Included*
Max lumens 5,818 (PAR), 5,463 (PARNel) w/ S4WRD Color II
Lumens per watt 41 (PAR), 38 (PARNel)
L70 rating (hours to 70% output) >60,000 hours*
Notes S4WRD LED sold separately
*L70 value based on manufacturer’s anticpated results

Color
Colors used RGB-A (Red, Green, Blue and Amber)
Color temperature range 2,200–6,500 K
Calibrated array Yes
Red shift No

Optical
Beam angle range
PAR: 17–41°
PARNel: 16–27°
Gate size N/A
Aperture size 7 in
Pattern projection No
Pattern size N/A
Camera flicker control/Hz range Yes, 1.2 kHz and 20 kHz
Notes
PAR ships with an AR coated flat lens. Additional
PAR lenses sold separately. PARNel ships with
PARNel lenses.

Control
Input method DMX Control
Protocols DMX/RDM via RJ45
Modes (Footprint)
1 (1=Intensity, 2=Red, 3=Green, 4=Blue,5=Amber, 6=Strobe)
RDM configuration Yes
UI type 7-segment address display, local level control via UI
Local control Yes
Onboard presets Yes, 12
Onboard sequences Yes, 5
Onboard effects No
FixtureLink support Yes

Electrical
Voltage range 100–240 V (50–60 Hz)
Input method Hardwired, 1 m cord, bare end or various connector options (120 V)
Hardwired, 1 m cord, bare end (230 V)
Inrush
32 A (first half-cycle) at 120 V
60 A (first half-cycle) at 240 V
Fixtures per circuit*
120 V:10 (20 A switched circuit, R20 module or similar)
230 V:10 fixtures per non-dimmed circuit (ER15AFR module)
Wattage (Typical/Standby)
146 W/3.0 W (120 V)
143 W/2.9 W (230 V)
Current draw
1.25 A at 120 V
0.67 A at 230 V
*All measurements are for 120 V, 60 Hz. Results may vary in different regions.

Thermal
Ambient operating temp 5°–40° C (41°–104° F)
Fan (controllable) Yes (no)
Droop compensation No
dB range 27 dBa (average at 1 m)
BTUs/hour
458 (120 V)
449 (230 V)

Physical
Materials Die-cast aluminum
Color options Black, white, silver or custom color
Mounting options Yoke
IP rating IP-20
Weight
PAR: 2.83 kg (6.25 lb)
PARNel: 3.49 kg (7.7 lb)
Included accessories Color frame
Notes
Includes S4WRD mounting post. Required S4WRD
Color II LED available separately.

Regulatory and Compliance
Approved regulatory standards
UL 1573 (complete luminaire)
UL 1598C (retrofit kit)
CSA C22.2 No. 166 (complete luminaire)
CSA TIL B79-A (retrofit kit)
CE Compliant
UKCA Compliant
