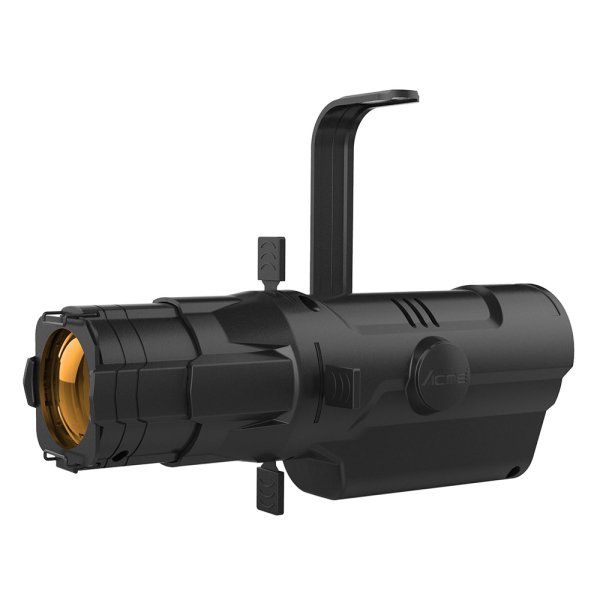

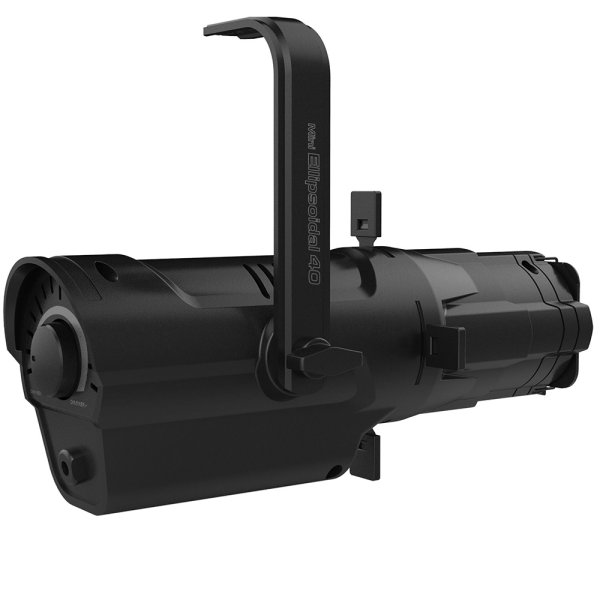

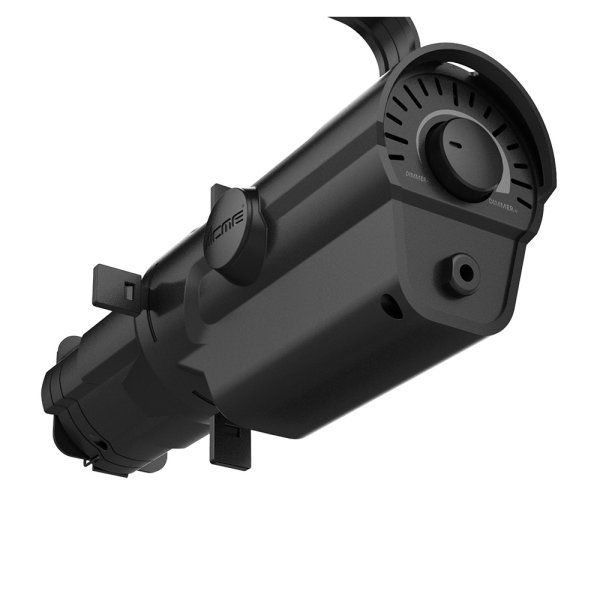

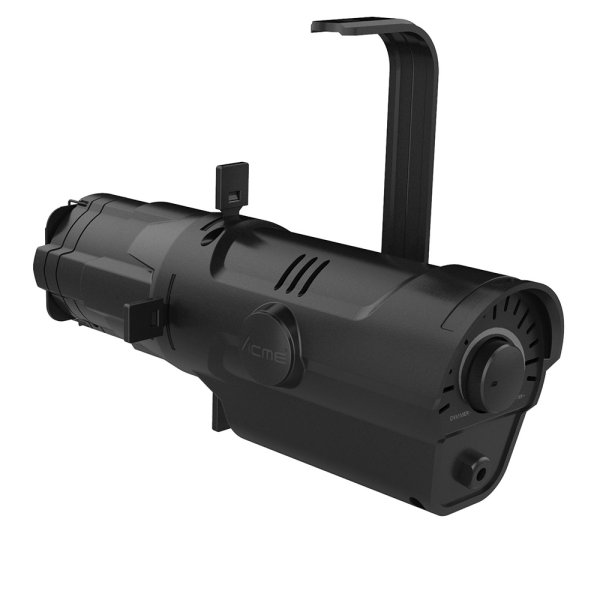

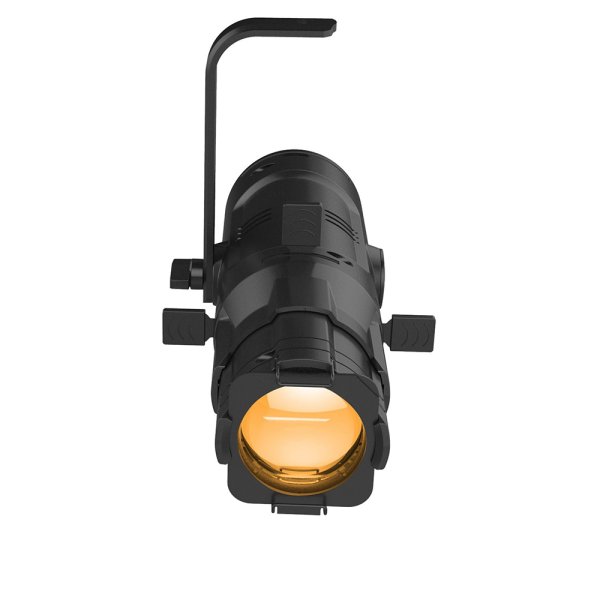

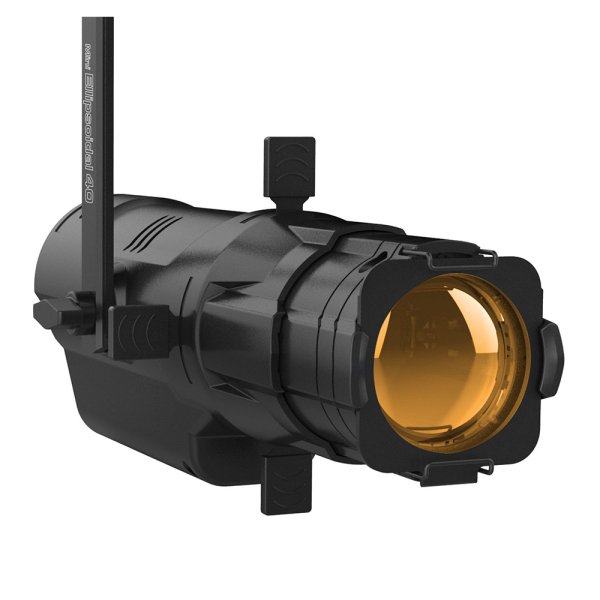

ACME ELLIPSOIDAL 40 WW（エリプソイダル 40 WW）

概要

ELLIPSOIDAL 40 series, with uniform light,sharp image edge,and self-locking focus lens.The product takes advantage of the heat pipe heat conduction and housing feature to dissipate heat without fan to prolong LED life.

特徴

Light source: 1×36W warm white LED
Color Temperature: 3200±150K
Beam Angle: 19°/26°/36°/50°
Flicker free management

仕様

Model

E-40 WW

Light Source

Light source: 1×36W warm white LED
LED life expectancy: 20000 hours* manufacturer specification
Color Temperature: 3200±150K

Optical system and effects

Advanced optical system to ensure image quality, clear and sharp
CRI：≥95
CQS：≥95
TLCI：≥95

Control and Program

1-knob

Electrical and Connectors

Power supply with electronic auto-ranging
Input voltage range: AC 85~127V, 50/60Hz；AC 175~264V,50/60Hz
Power consumption: 24 W
Power in/out: Power wire

Fixture Specification

Height: 100 mm (3.9")
Width: 128 mm (5.0")
Depth: 273 mm (10.7")
Weight: 1.3 kg (2.8 lbs)

Work Environment

Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Approvals

CE Compliant

Installation

Horizontally or vertically mounting are available
Operating position is universal
The feet support with 1 locking points
Safety Rope Hole

Included Items

Digital User Manual*1
Gel frame*1
Gobo Slot*1
Metal gobo*1
Safety cable*1

Optional Accessories (with item code)

Clamp：2060000300（C-01）
