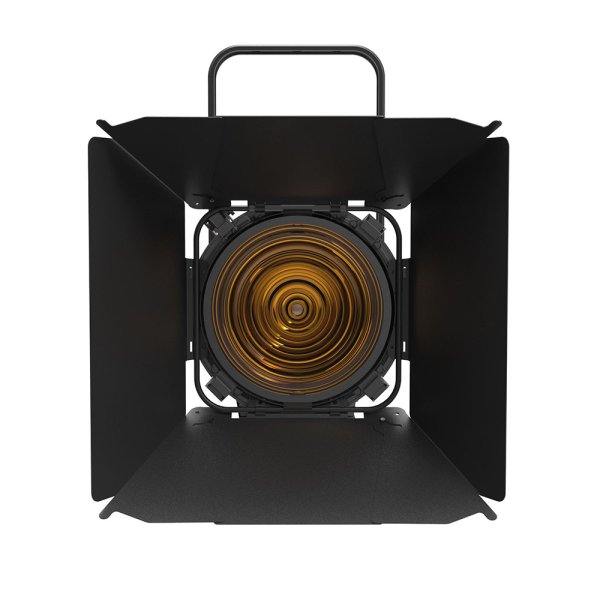

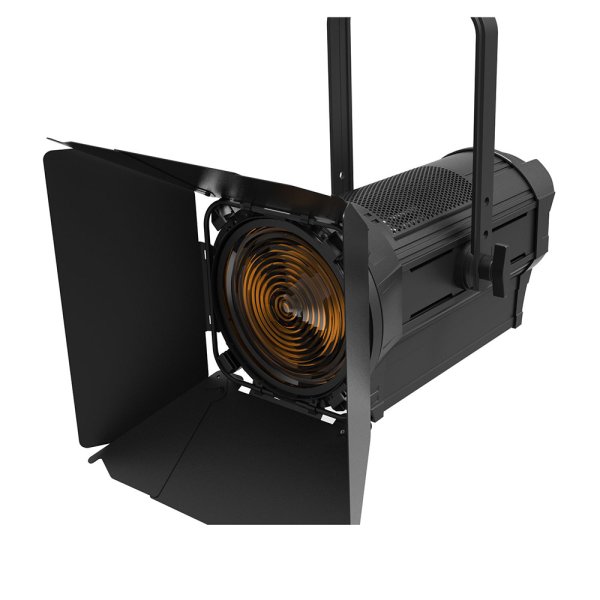

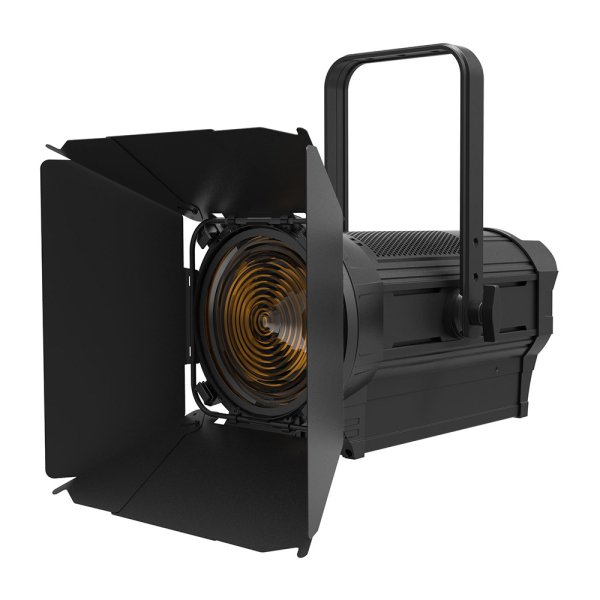

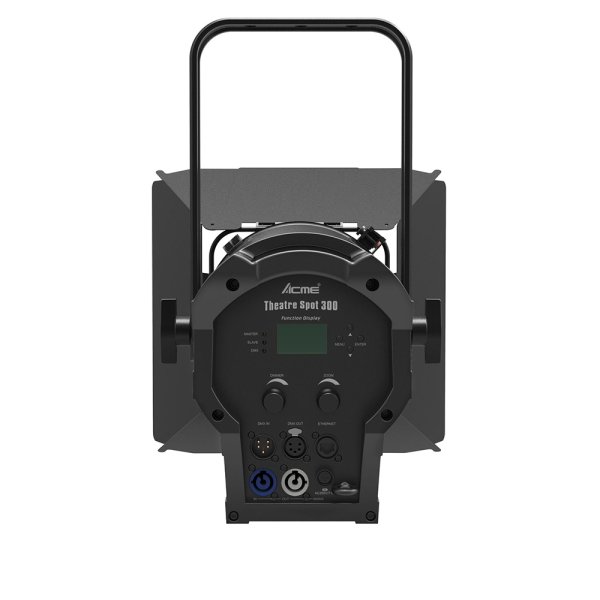

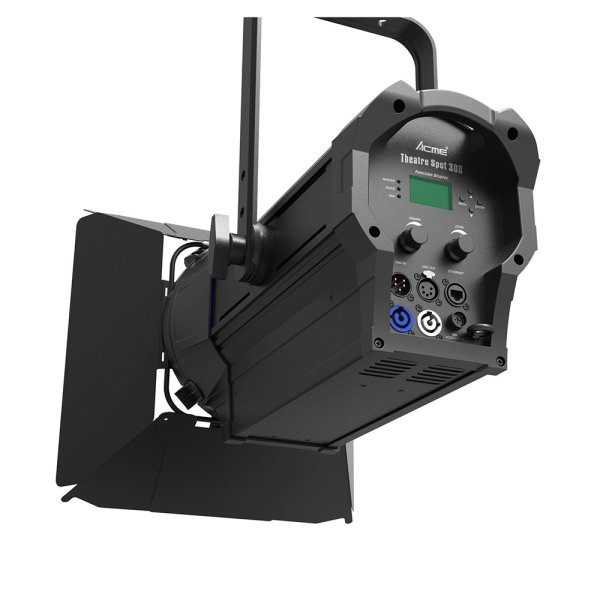

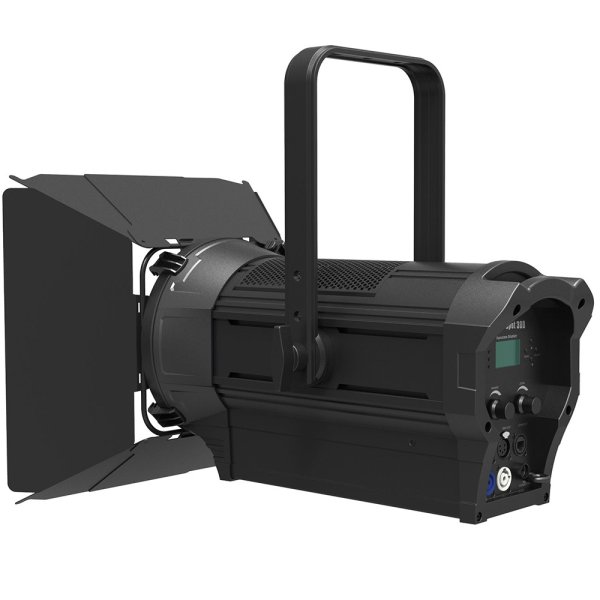

ACME THEATRE SPOT 300 WW（シアタースポット 300 WW）

概要

The ACME THEATRE SPOT 300 WW is a new powerful single source LED luminaire with a 300W Warm White 3,200K±200K led engine, which can project CRI≥95 clear warm light and reproduce the real effect. It can deliver 15° to 53° wide range beam angle with a high efficiency zoom optical system at 1:3.5 ratio. A special thermal-convection loop coupled with the advanced cooling fan which selected from top brands, only to offer you a better cooling and silent operation. Fitted with special patented clamp structure, the Theatre Spot can easily handle different installation and avoid any unexpected movement making the light out of focus. What's more, the Theatre Spot provides you a smooth fading performance with 4 variable dimming curves and 2 optional dimming speeds. Equipped with flicker free operation, rotating barn door and rotating bracket, this light-weight fixture is suitable for many applications, such as big shows, exhibitions, evening performances, dramas, film shooting, etc.

特徴

Light source: 1×300W warm white LED
Color Temperature: 3200±200K
Motorized focus
Zoom range: 15°~53°
Manual linear dimming
4 dimming curves,2 optional dimming speed
0~100% smooth dimming
Low noise under 35dB@1m
Rotating cover, rotating bracket with limiting function
Flicker free management

仕様

Model

TS-300 WW

Light Source

Light source: 1×300W warm white LED
LED life expectancy: 20000 hours* manufacturer specification
Color Temperature: 3200±200K

Optical System and Effects

Advanced optical system to ensure image quality, clear and sharp
High - efficiency zoom optical system, ratio 1:3.5
Zoom range: 15°~53°
CRI：≥95
CQS：≥94
TLCI：≥97

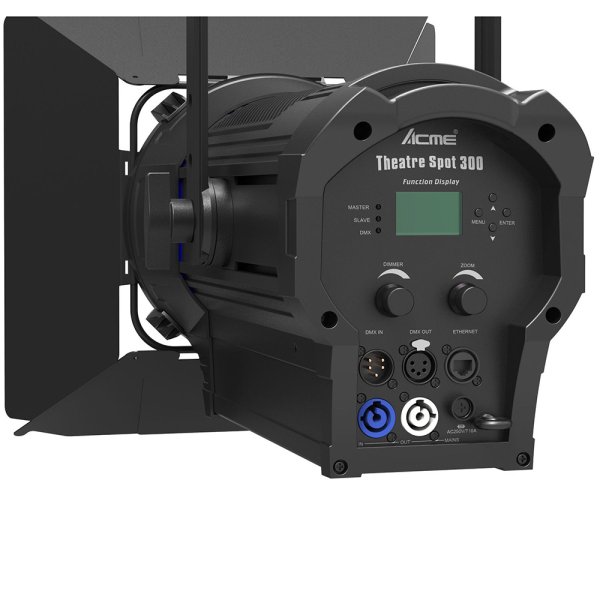

Control and Program

4-buttons
Display: LCD display
Protocols: DMX, Master/Slave, Manual, Art-Net
DMX Protocol modes: 2
Control channels: 2,3
Upgrade the firmware via DMX link

Electrical and Connectors

Power supply with electronic auto-ranging
Input voltage range: AC 100–240 V, 50/60 Hz
Power consumption: 400 W
Power in/out: Power Connector input/output
Data in/out: 5-pin XLR
Art-Net input: RJ45

Fixture Specification

Height: 264 mm (10.3")
Width: 278 mm (10.9")
Depth: 473 mm (18.6")
Weight: 10 kg (22.0 lbs)

Work Environment

Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Approvals

CE Compliant

Installation

Horizontally or vertically mounting are available
Operating position is universal
The feet support with 3 locking points
Safety Rope Hole

Included Items

Digital User Manual
Power Cable
Barn door

Optional Accessories (with item code)

Flight Case：
3205001245（2 in 1）
3205001238（3 in 1）
3205001215（6 in 1）
Clamp：2060001625（C-150B）
Signal Line：5-pin signal line
Safety cable: 2060000200（SW-02）
Cellular grid：63580925
