ACME BLINDER LINE 5 IP (ブラインダーライン 5 IP)

概要

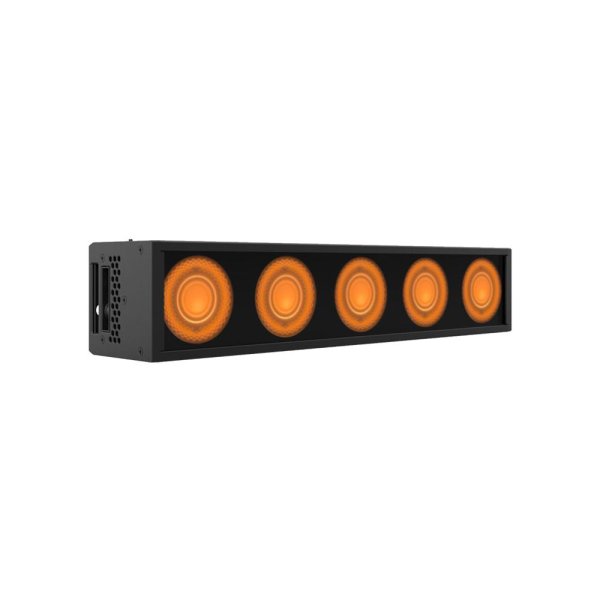

The BLINDER LINE 5 IP, the complementary shorter version of the BLINDER LINE 10 IP, is a half-meter length blinder fixture with the same features and functionalities as the longer version. This luminaire is powered with five, 150-Watt RGBAW LEDs that produce vivid colors and captivating visual effects.

The BLINDER LINE 5 IP features ACME's patented Smart Glass technology for soft light effects and has extremely bright strobe effects, four different dimming curves, and individual pixel control for unlimited looks and effects. Multiple units can be connected end-to-end using their integrated interlocking connectors.

The BLINDER LINE 5 IP has an IP66 protection rating, making this fixture perfect for any application, indoors or outdoors, in any weather conditions.

特徴

LED Engine comprised of 5 x 150W RGBAW
Individual pixel control and built-in color macro effects
Patented Smart Glass Technology for frost effects
High output strobe effects
Tungsten emulation during dimming
Smooth dimming 0-100% (4 user selectable dimming curves)
Integrated interlocking system for combining units
IP66 rated

仕様

Model

BLB 5 IP

Light Source

Light Source: 5 x 150W RGBAW LEDs
Total Lumen Output of Fixture: 10,500 lumens
Life Expectancy: 20,000 hours* manufacturer specification* Manfacturer specification

Optical System

Beam Angle:
23°, 34°, 52° (W)
24°, 33°, 55° (RGBA)
Field Angle:
46°, 88°, 127° (W)
48°, 85°, 131° (RGBA)

Control and Program

4 touch button control panel
Display: OLED display
Protocols: DMX512, RDM, Art-Net, sACN
DMX Protocol Modes: 2
Control Channels: 14/30
Firmware Upgrade: Upgrade via DMX link

Other Effects

High output strobe effects
Smooth dimming 0-100% (4 user selectable dimming curves)

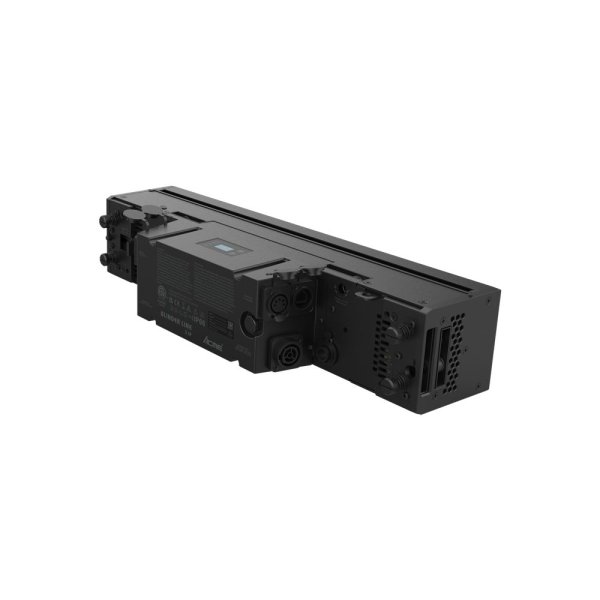

Electrical and Connectors

Input Voltage Range: 100-240VAC, 50/60Hz
Power Consumption: 350W
Power In/Out: Waterproof power connector in/out
Data In/Out: 5-pin waterproof XLR, RJ45 connector

Physical Information

Fixture Dimensions:
Width: 500 mm (19.7")
Depth: 103.3 mm (4.1")
Height: 160.3 mm (6.3")
Weight: 7.7 kg (17.0 lbs)

Packing Information

Flight Case Dimensions:
Standard:
Width: 880 mm (34.6")
Depth: 580 mm (22.8")
Height: 890 mm (35.0")
Weight:
G.W.: 115 kg (253.5 lbs) (eight-pack loader case)
North American Standard:
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 850 mm (33.5")
Weight:
G.W.: 179 kg (394.6 lbs) (twelve-pack loader case)
Carton Dimensions:
Width: 630 mm (24.8")
Depth: 245 mm (9.6")
Height: 210 mm (8.3")
Weight: 9.0 kg (19.8 lbs) (one-pack loader carton)

Work environment

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 70°C
Protection Rating: IP66

Approvals

CE compliant
UKCA compliant
cETLus compliant

Installation

Horizontally or vertically mounting
Universal working position
Horizontal: Utilizing two brackets (supplied) and clamps (by others), a maximum of 6 fixtures may be connected
Vertical: Using one hanging bracket (sold separately) with clamp (by others), a maximum of 5 fixtures may be connected

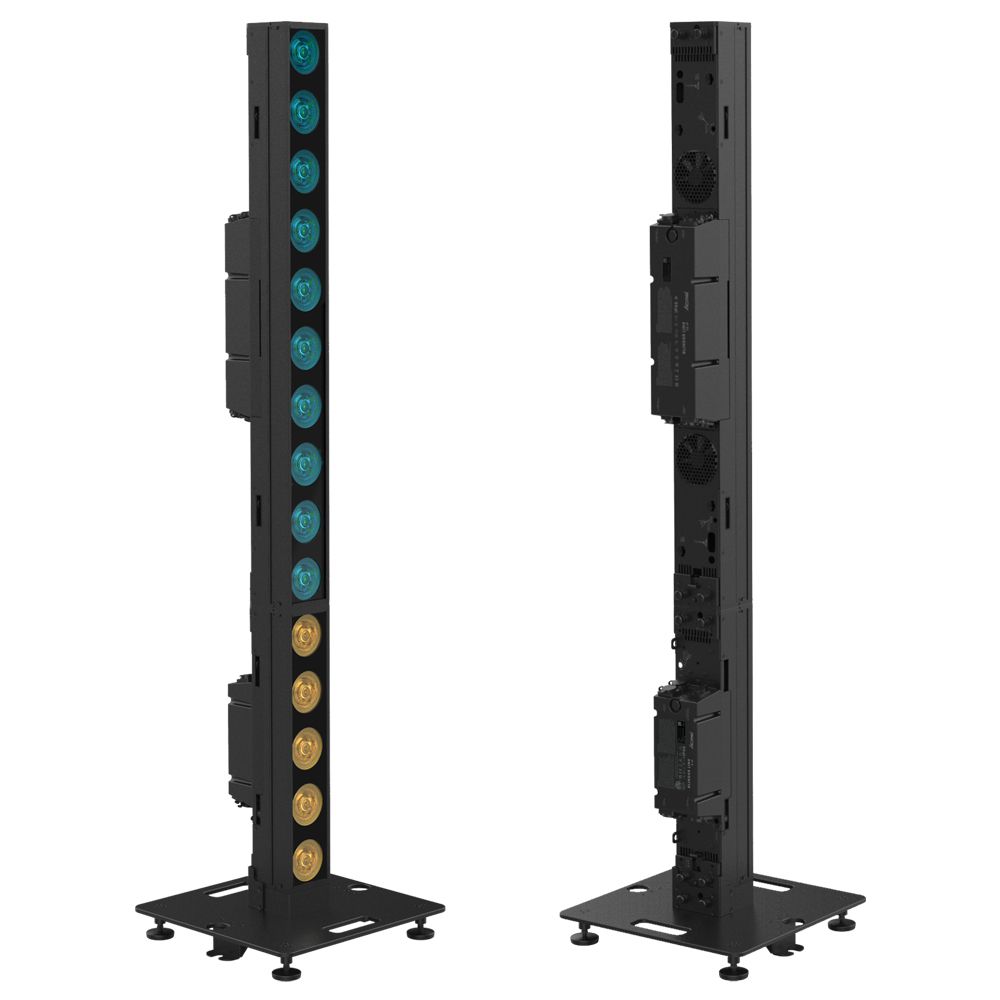

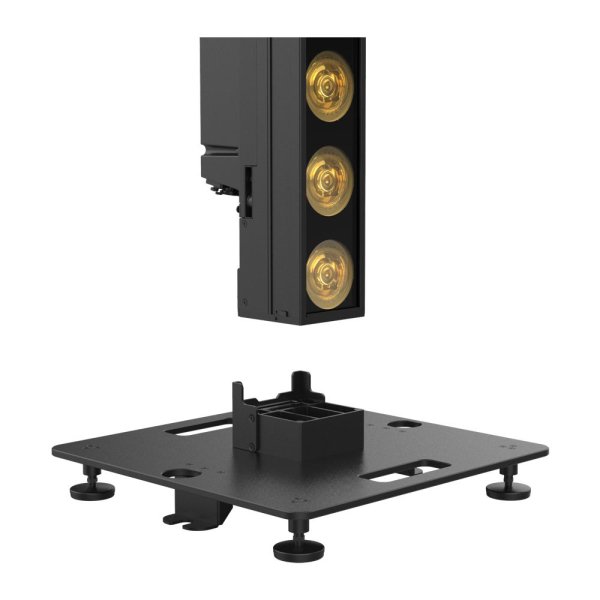

Vertical Stand: Mounted to one floor stand (sold separately), a maximum of 2 fixtures may be connected
Floor: Two floor brackets (sold separately)
Safety cable attachment point

Included Items

Digital user manual
Power cable with TRUE1 type connector
2 x brackets (4015240180)

Optional Accessories (with item code)

Flight Case:
Standard: 3205001359 (eight-pack loader case)
North American Standard: 3205110039 (twelve-pack loader case)

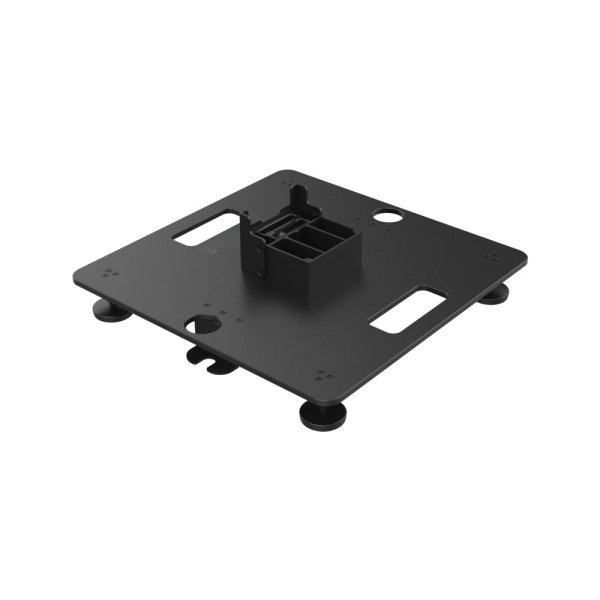

BLINDER LINE Series Base Stand: 63582785
Customized Floor Stand w/o Omega Bracket: 63583364 (in pair)

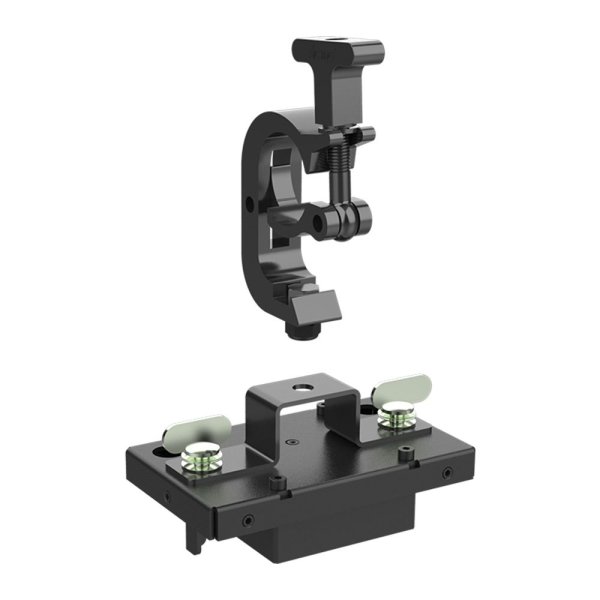

BLINDER LINE Series Hanging Bracket: 63582969
Clamp: 2060001632 (C-250B)
Signal Line: 3-pin waterproof signal line (3017013468), 5-pin waterproof signal line (3017013473), RJ45
Safety Cable: 2060001603-A (SW-05)
