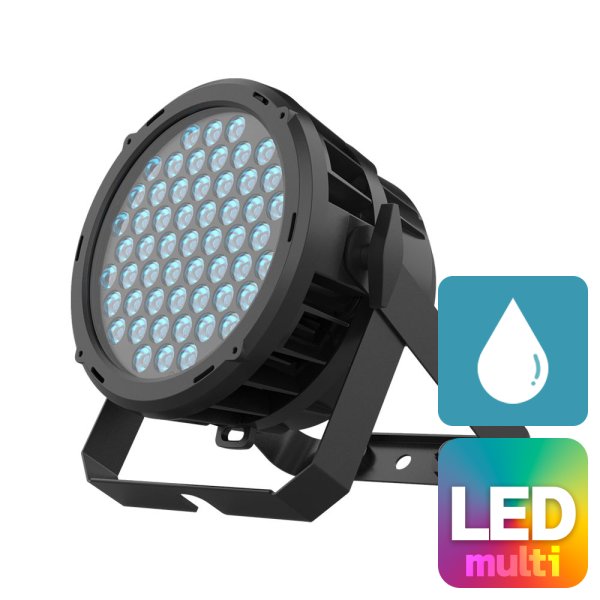

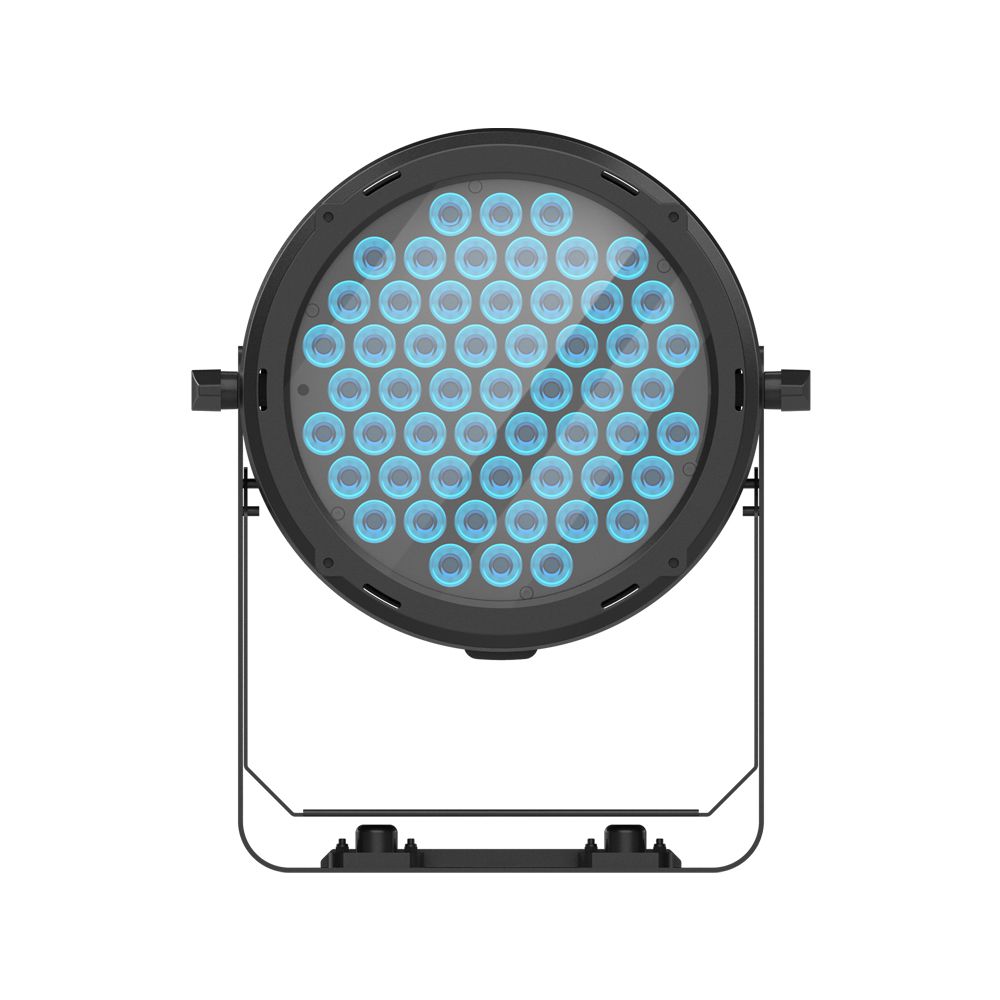

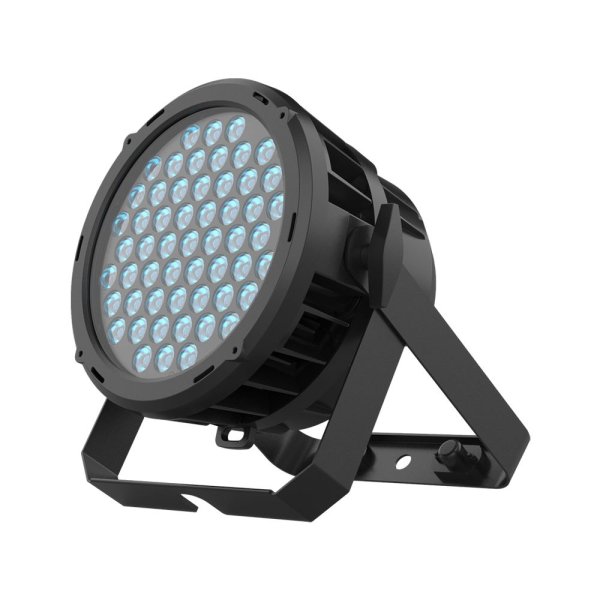

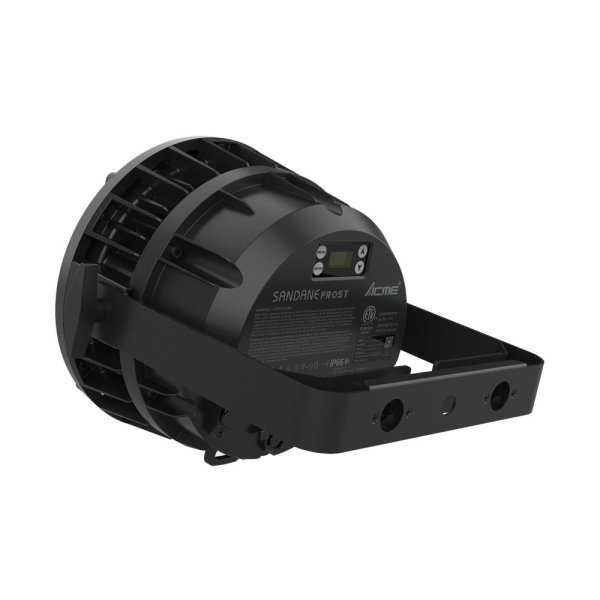

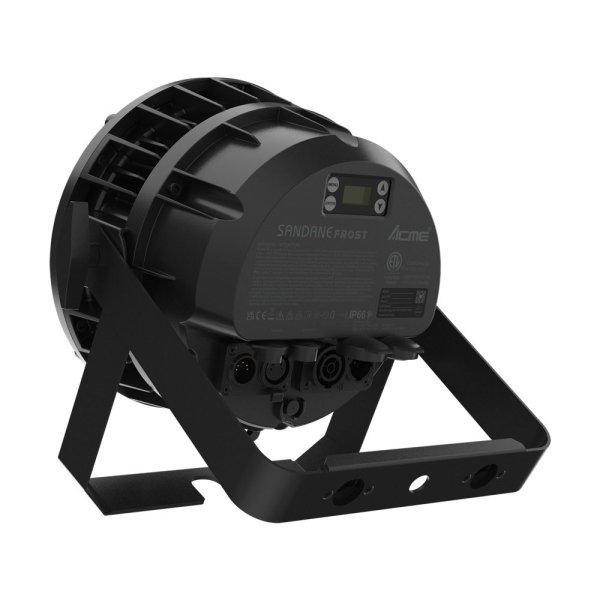

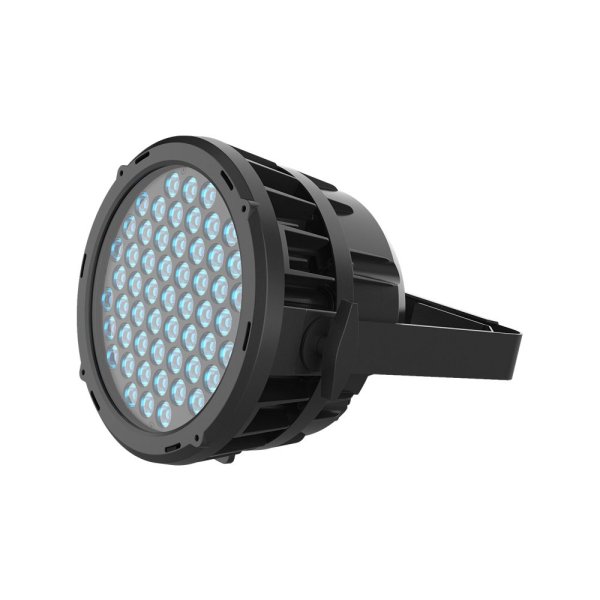

ACME SANDANE FROST (サンデーンフロスト)

概要

ACME SANDANE FROST is compact, lightweight, energy-efficient, and offers high light output. It features a dual mounting bracket design, providing various installation options. Equipped with 55 pcs 6W RGBL LED chips, it achieves exceptional color mixing effects. Additionally, it includes Electronic Frost function that can switch between different angles for hazy lighting effects. With IP66 protection rated, it is suitable for year-round outdoor use, making it ideal for outdoor open-air events.

特徴

Features

Light Source: 55 x 6W RGBL LED engine
Total Lumen Output of Fixture: 9,400 lumens
Variable CTO ranging from 2,500K-8,000K
Frost effect for different flood ranges
Compact size,light weight,high light efficiency,low energy consumption
IP66 rated, can be outdoor use all year round
Variable light adjustment from 0 to 100%
Outstanding strobe effect with variable speed
Double bracket design, and multiple installation methods are available
Optional half or full size anti-glare shield

仕様

Model

PAR 54 IP EF

Light Source

Light Source: 55 x 6W RGBL LED engine
Color Temperature Output of Fixture: 8,000K
Total Lumen Output of Fixture: 9,400 lumens
Life Expectancy: 20,000 hours* manufacturer specification

Optical System

Beam Angles: 18°, 36°, 53°
Field Angles: 37°, 96°, 128°

Control and Program

4 touch button control panel
Display: OLED display
Operational Modes: DMX control, show mode
Protocols: DMX512, RDM
DMX Protocol Modes: 5
Control Channels: 11/9/8/7/6
Firmware Upgrade: Upgrade via DMX link

Other Effects

Outstanding strobe effect with variable speed
Variable light adjustment from 0 to 100%

Electrical and Connectors

Input Voltage Range: 100-240V~ 50/60Hz
Power Consumption: 215W
Power In/Out: Waterproof power connector in/out
Data In/Out: 5-pin waterproof XLR

Fixture Specification

Fixture Dimensions:
Width: 266 mm (10.5")
Depth: 158 mm (6.2")
Height: 320 mm (12.6")
Weight: 5.0 kg (11.0 lbs)
Flight Case Dimensions:
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 630 mm (24.8")
Weight: 95.0 kg (209.4 lbs.) (eight-pack loader case)
Carton Dimensions:
Width: 405 mm (15.9")
Depth: 355 mm (14.0")
Height: 270 mm (10.6")
Weight: 6.5 kg (14.3 lbs) (includse carton, one per carton)

Work Environment

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP66

Approvals

CE compliant
UKCA compliant
cETLus compliant

Installation

Horizontally or vertically mounting are available
Universal working position

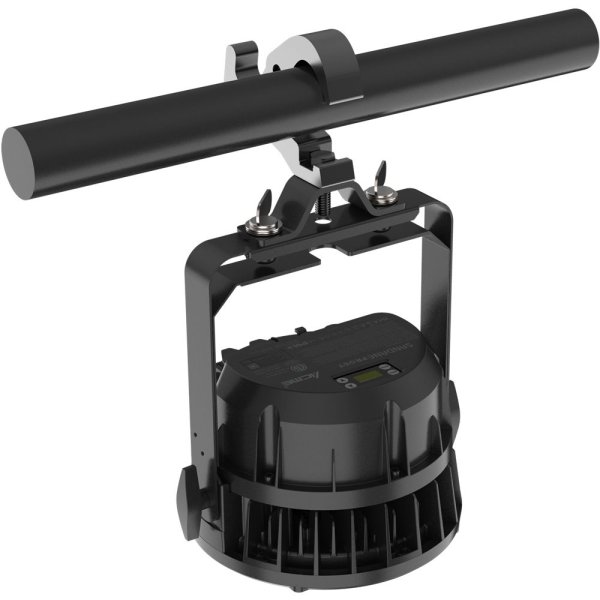

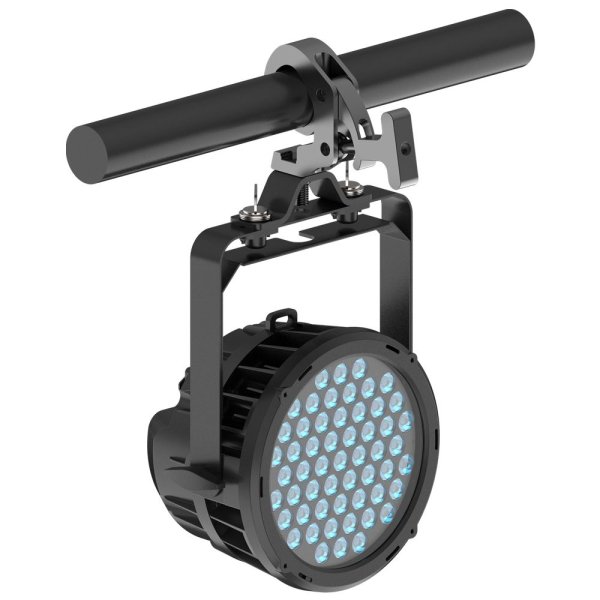

Dual mounting bracket (with omega bracket and clamp)
Safety rope hole

Included Items

Digital user manual
Power cable

Optional Accessories

Flight Case: 3205001352 (Eight-pack Loader Case)
Clamp: 2060001625 (C-150B)
Signal Line: 5-pin waterproof signal line
Safety Cable: 2060000200 (SW-02)
Anti-glare Shield:
Half Size Anti-glare Shield: 63582245 (black)
Full Size Anti-glare Shield: 63582244 (black)
Barn Door:
Indoors Barndoor: 63582499 (black)
Outdoors Barndoor: 63582720 (black)
