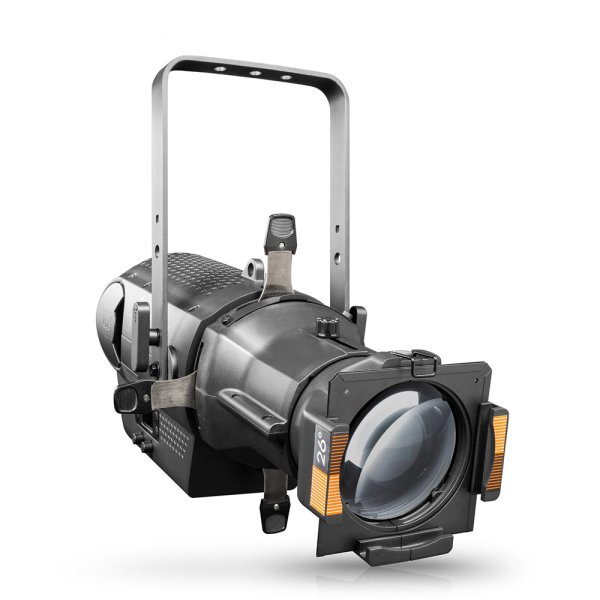

Clay Paky Actoris Profile FC（アクトリス プロファイル FC） [AL2015]

概要

ADB’s Actoris Profile FC is a 6-color ellipsoidal with advanced features, incorporating state-of-the-art software which gives it top-notch performance, especially in terms of colour control. It was designed to be user friendly, and it combines features that allow it to be used in manual mode or be controlled from a lighting desk in TV studios and theatres.

The light source is based on an RGBAL + ROYAL BLUE system, which means any desired shade of colour can be produced, including an incredible array of pastel hues, with a CRI of up to 97. It has variable colour temperature correction from 2500K to 10000K, and perfect Planck-curve CCT.

It offers multifarious functions: stable colour consistency over time and with temperature changes due to combined fixture calibration by using CloudIO; a wide colour gamut, including deep blue and deep red; tint correction: +/- green/magenta adjustment; tungsten mode, to emulate the behaviour of a halogen lamp while dimming from 0 to 100% and vice versa; high colour stability and accuracy even in tungsten mode, thanks to a high-resolution driver; repeatable colours from fixture to fixture.

The algorithm that regulates the color control system is perfectly comparable to that of the Claypaky Sinfonya Profile, with advanced, standard, white, and single-channel modes.

The Actoris Profile FC is a practical, smart, modular tool: you can select the optical unit you prefer to match the light fixture: you can choose from a 15°-30° zoom, a 25°-50° zoom, and seven fixed lenses (5°, 10°, 14°, 19°, 26°, 36° and 50°). The system is also compatible with other optical units. Similarly, a whole range of beam-enriching accessories can be fitted, including a gobo holder, a frost filter holder,and an iris.

The 24-bit dimmer with different curves means you can adjust its light intensity smoothly and gradually. An automatic variable speed ventilation system allows the fixture to run in lownoise mode.

The Actoris Profile FC is an advanced system, which combines a robust construction with top-class optical and lighting features and adds advanced software that provides functions which were hitherto not possible on fixtures of this type. It is perfect in theatres, television studios, auditoriums, concert halls and conference rooms.

仕様

LIGHT SOURCE TYPE
・Source type: (Red + Green + Blue + Amber + Lime + Royal Blue)
・Power: 370W
・Colour Temperature: 2500 to 10.000 K – with perfect Plank-curve CCT
・CRI: ≤97
・Lamp life expectancy: 50.000 L70*
*It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA
・Zoom range:
　15° – 30°
　25° – 50°
・Fixed Lenses: 5° / 10° / 14° / 19° / 26° / 36° / 50°
・Lumen Output: Up to 12.750 Lm (integrating sphere)
・Optical system: CP interchangeable lens

NOISE LEVEL
・Auto fan mode: Variable output
・Fixed preset: 25 / 27 / 30 / 35 dBA
・Fanless mode: With reduced output

CONTROL and CONNECTIONS
・Personalities:
　4 modes + 1 stand alone
　4/6/15/31 DMX control parameters
・Protocols: DMX, Art-Net, RDM, sACN
・Connectors:
　Locking 5 pin XLR IN/OUT
　RJ45 IN/OUT
・Power connector: PowerCon True1 IN/OUT
・Web Server: Built-in
・CloudIO:
　Fully compatible
　On-field calibration for color consistency

DYNAMIC EFFECTS
・Colors:
　Colors control mode RGBAL + ROYAL BLUE
　Tungsten mode, to replicate the behavior of a tungsten lamp during dimming from 0 to 100% and vice versa
　Tint correction: ± green/magenta adjustments
　Flicker-free, thanks to PWM frequency adjustment
　Color control with Advanced, Standard, White and Single-Channel modes
　Color temperature adjustment
　Wide color gamut and extended spectrum, including deep blue and deep red
　Combined fixture calibration ensures colors consistency despite changes in temperature and over time
　Wavelength binning selection and 100% fixture calibration ensures color repeatability fixture-to-fixture
・Dimmer/Shutter:
　High resolution electronic dimmer - 24 bit, 5 curves
　Up to 25 f./sec.
　4 blades manual framing system

HARDWARE and SOFTWARE
・Long life self-charging battery
・Display Graphic LCD backlit b/w Display
・Firmware upload from another fixture
・Firmware Upgrade via Web Server
・Diagnostic
・DMX monitoring
・Remote access through RDM

HOUSING
・Aluminum and steel structure with plastic covers
・One backside handle for transportation
・IP20 protection rate
・Built in bracket
・Optional safety chain
・Working in any position

ELECTRICAL
・Operating Voltage: 100-120 / 200-240V, 50/60Hz
・Power Supply: Electronic auto range with active PFC
・Max Power consumption: 420W

THERMAL SPECIFICATION
・Max ambient temperature: 45°C (113°F)
・Min ambient temperature: -20°C (-4°F)
・Max temperature of the external surface: 47°C (116,6 °F)
・Total heat dissipation: 1400 BTU/hr ±10% / 1476 kJ/hr ±10%

SAFETY SPECS
・Minimum distance of illuminated objects: 0,5 m (1’8’’)
・Minimum distance from flammable materials: 0,2 m (8’’)
・Protection:
　Forced ventilation with axial fans
　T6.3A fuse

COMPLIANCE
・CE Marking (in conformity to the following):
　2014/35/EU – Low Voltage directive (LVD)
　2014/30/EU – Electromagnetic compatibility of equipment (EMC)
　2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
　2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
・UKCA: conforms to UK Regulations:
　S.I. 2016 N.1101
　S.I. 2016 N.1091
　S.I. 2012 N.3032
　S.I. 2021 N.745
・cMETus LIsted:
　UL1573
　CSA C22.2 N.166:2015

PACKAGING
・Carton box + Polystyrene

WEIGHT - SIZE
・Weight: 8,34Kg (8.4 lbs)
・Dimensions:
　282 x 554 x 245 mm
　11,1 x 21,8 x 9,65 in

ACCESSORIES
・Gobo holder: AA2036000102(Optional)
・Frost filter holder: AA2035000102(Optional)
・Iris holder: AA2037000102(Optional)
・Adjustable zoom lens:
　15° – 30° AA2029000102(Optional)
　25° – 50° A2030000102(Optional)
・Color filter holder:
　D5 AA2031000102(Optional)
　D10 AA2032000102(Optional)
　D14 AA2033000102(Optional)
　D19 AA2034000102(Optional)
・ETL Power: CAB02B-802 (Included)
　* Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)
・Fixed Lens:
　5° AA2022000102(Optional)
　10° AA2023000102(Optional)
　14° AA2024000102(Optional)
　19° AA2025000102(Optional)
　26° AA2026000102(Optional)
　36° AA2027000102(Optional)
　50° AA2028000102(Optional)
・Clamp:C21070 (Optional)
・Safety Chain: 105041-001 (Optional)
