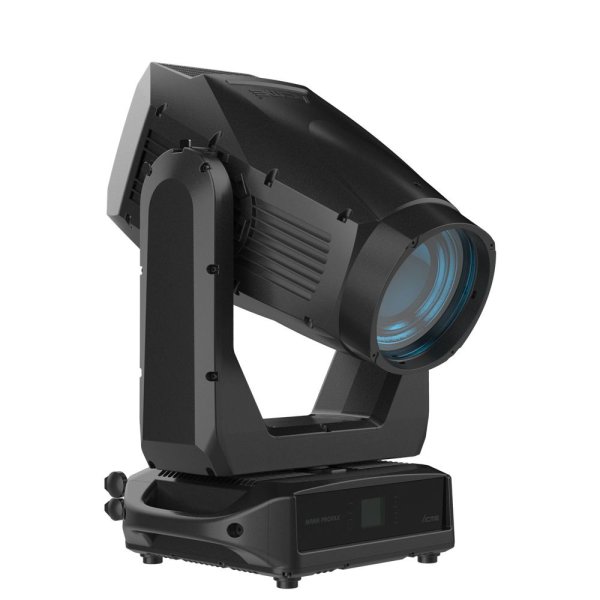

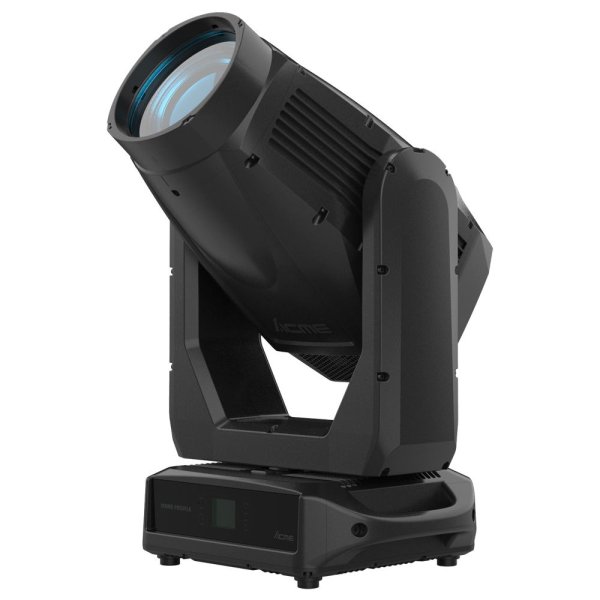

ACME MANA PROFILE（マナ プロファイル）

概要

Introducing the MANA PROFILE, a powerful innovation with features designed to redefine your lighting experience. Featuring a 600W LED engine and a 170mm lens, the fixture creates brilliant and vibrant light. With a versatile beam angle ranging from 3.5° to 45° and a total lumen output of 26,000 lumens, the fixture provides unparalleled flexibility for your lighting designs. The fixture's precise color temperature of 7,000K, with an HCRI Mode Ra≥90, ensures vivid stage illumination.

Equipped with a linear CMY color mixing system and variable CTO ranging from 2,700K to 7,000K, the MANA PROFILE offers unlimited color possibilities. Featuring multiple gobos, including 9 static gobo wheels and 8 rotating gobos, as well as abundant colors provided by 6 colors, the fixture stimulates creativity. With a graphic animation wheel and two combinable frost filters, the fixture creates captivating lighting effects.

The fixture has an IP66 protection rating, making it reliable for outdoor use all year round. The MANA PROFILE boasts outstanding strobe effects with variable speed, ensuring an unforgettable visual experience.

特徴

LED Engine comprised of 600W LED
Diameter of Frontal Lens: 170 mm
Beam Angle: 3.5°-45°
Total Lumen Output of Fixture: 26,000 lumens
Color Temperature Output of Fixture: 7,000K
HCRI Mode: Ra≥90
Linear CMY color mixing
Variable CTO ranging from 2,700K-7,000K
1 Static Gobo Wheel: 9 gobos, plus open
1 Rotating Gobo Wheel: 8 gobos, plus open
1 Color Wheel: 6 colors + CTB, plus open
Animation Wheel: A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave & flame effect, and can be changed into other wheels
2 Combinable Rotating and Indexable Prisms: 1 x 4-facet prism, 1 x 4-facet linear prism, rotatable in both directions
1 combinable light frost filter and 1 combinable medium frost filter
4 blades, each with separate movement and full blackout; ±60° Rotation of the complete framing system
Motorized linear Iris
Smooth dimming 0-100% (4 user selectable dimming curves)
Outstanding strobe effect with variable speed
IP66 rated
Four M4 threaded fixing holes on nose of fixture for mounting accessories

仕様

Model

XA 600 BSWF IP

Light Source

Light Source: 600W LED engine
Color Temperature Output of Fixture: 7,000K
Total Lumen Output of Fixture: 26,000 lumens
Life Expectancy: 20,000 hours* manfacturer specification

Optical System

Beam Angle: 3.5°-45°
HCRI Mode: Ra≥90
Diameter of Front Lens: 170 mm

Control

4 touch button control panel
Display: LCD display
Protocols: DMX512, RDM, Art-Net, sACN
DMX Protocol Modes: 4
Control Channels: 22/31/31/40
Firmware Upgrade: Upgrade via DMX link or USB disk

Pan & Tilt

Pan Movement: 540°
Tilt Movement: 260°
Automatic Pan/Tilt position correction
Moving-head operated with 16 bit resolution
Fixation: Pan/Tilt lock

Color

Linear CMY color mixing
Linear CTO Color Correction: 2,700K-7,000K
1 Color Wheel: 6 colors + CTB, plus open

Static Gobo

1 Static Gobo Wheel: 9 gobos, plus open
Gobo Diameter: 24 mm
Image Diameter: 18 mm
Gobo Thickness: 1.1 mm

Rotating Gobo

1 Rotating & Interchangable Gobo Wheel: 8 gobos, plus open
Adjustable-speed rotating gobo in both directions
Gobo Diameter: 20 mm
Image Diameter: 17 mm
Gobo Thickness: 1.1 mm

Animation Wheel

A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave & flame effect, and can be changed into other wheels

Prism

2 Combinable Rotating and Indexable Prisms: 1 x 4-facet prism, 1 x 4-facet linear prism, rotatable in both directions

Frost Filter

1 combinable light frost filter and 1 combinable medium frost filter

Framing System

Shutter Blades: 4 blades, each with separate movement and full blackout
Rotation: ±60° of the complete framing system

Other Effects

Outstanding strobe effect with variable speed
Smooth dimming 0-100% (4 user selectable dimming curves)
Motorized linear Iris

Electrical and Connectors

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 910W

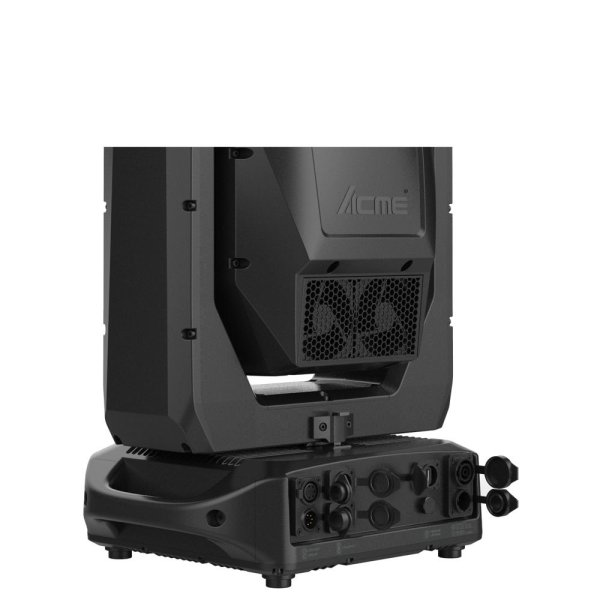

Power In/Out: Waterproof power connector in/out (TRUE1 type)
Data In/Out: 3-pin or 5-pin waterproof XLR, RJ45 connector

Work Environment

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 75°C
Protection Rating: IP66

Approvals

CE compliant
UKCA compliant
cETLus compliant

Installation

Horizontally or vertically mounting
Universal working position

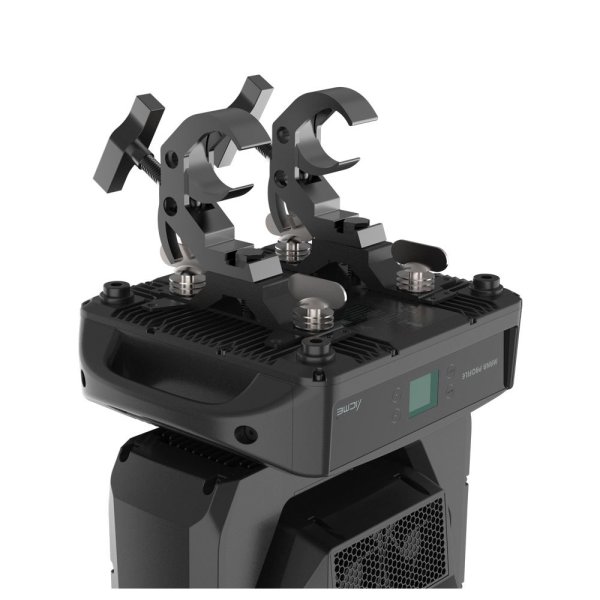

2 omega brackets
Four M4 threaded fixing holes on nose of fixture for mounting accessories
Safety cable attachment point

Included Items

Digital user manual
Power cable with TRUE1 type connector
2 omega brackets (3002003003)

Optional Accessories

Flight Case
International Standard: 3205096033 (two-pack loader case)
North American Standard: 3205110037 (two-pack loader case)
Clamp: 2060001625 (C-150B)
Signal Line: 3-pin waterproof signal line (3017013468) or 5-pin waterproof signal line (3017013473), RJ45
Safety Cable: 2060001603-A (SW-05)

サイズ

Physical Information

Fixture Dimensions:
Width: 380 mm
Depth: 284 mm
Height: 658 mm
Weight: 32.5 kg

Packing Information

Flight Case Dimensions:
Width: 1,220 mm
Depth: 610 mm
Height: 805 mm
Weight:
International Standard:
G.W.: 130 kg (two-pack loader case)
North American Standard:
G.W.: 139 kg (two-pack loader case)
Carton Dimensions:
Width: 610 mm
Depth: 490 mm
Height: 675 mm
Weight: 36.5 kg (One-pack loader carton)
