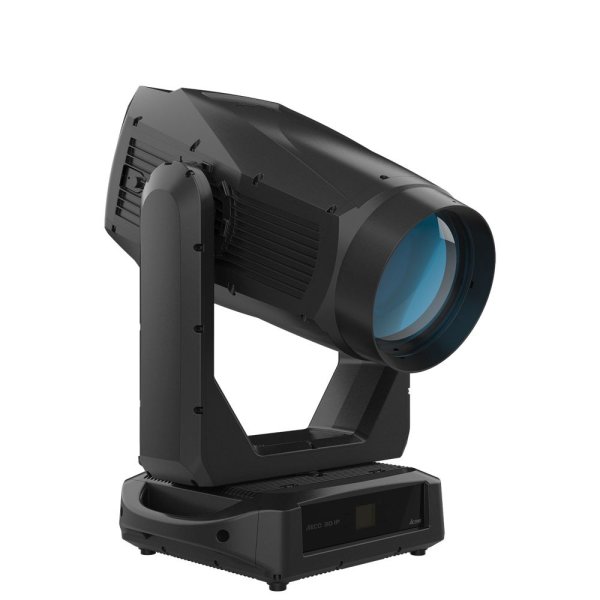

ACME AECO 30 IP（エイコ 30 IP）

概要

Introducing the ACME AECO 30 IP, where brilliance meets excellence. Powered by a 1,800-Watt LED, boasting a total lumen output of 43,000 lm, a 170 mm frontal lens and a HCRI of Ra≥95, this luminaire produces vivid colors and brilliant lighting effects in every moment.

Immerse yorself in dynamic lighting with a versatile zoom range from 4° to 48°, accompanied by adjustable CTO from 2,700K to 6,200K. Featuring a linear CMY color mixing, dual color wheels, dual rotating gobo wheels, a graphic animation wheel, one 4-facet prism, and two frost filters, the AECO 30 IP presents limitless creative possibilities.

Its IP66 rating ensures extremely versatility for both indoors and outdoors applications. Elevate professional stages, theaters, and outdoor events with captivating lighting effects, delivering unforgettable audio-visual experiences!

特徴

LED engine comprised of 1,800W LED
Diameter of Frontal Lens: 225 mm
Zoom Range: 4°-48°
Total Lumen Output of Fixture: 43,000 lm
Color Temperature Output of Fixture: 6,200K
HCRI Mode: Ra≥95
Linear CMY color mixing
Variable CTO ranging from 2,700K-6,200K
2 Rotating Gobo Wheels:
Rotating Gobo Wheel 1: 6 gobos, plus open
Rotating Gobo Wheel 2: 6 gobos, plus open
2 Color Wheels:
Color Wheel 1: 5 colors, plus open
Color Wheel 2: 4 colors, plus open
A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave effect, and can be changed into other wheels
2 Combinable Rotating and Indexable Prisms: 1 x 4-facet prism, 1 x 4-facet linear prism, rotatable in both directions
1 combinable light frost filter and 1 combinable medium frost filter
Motorized linear Iris
4 blades, each with separate movement and full blackout; ±60° rotation of the complete framing system
IP66 rated

仕様

Model

AECO 30 IP

Light Source

Light Source: 1,800W LED engine
Color Temperature Output of Fixture: 6,200K
Total Lumen Output of Fixture: 43,000 lm
Life Expectancy: 20,000 hours* manufacturer specification

Optical System

Zoom Range: 4°-48°
HCRI Mode: Ra≥95
Diameter of Frontal Lens: 225 mm

Control

4-Button touch panel
Display: LCD display
Protocols: DMX512, RDM, Art-Net, sACN
DMX Protocol Modes: 4
Control Channels: 23/32/34/43
Firmware Upgrade: Upgrade via DMX or USB link

Pan & Tilt

Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction
Moving-head operated with 16 bit resolution
Fixation: Pan/ Tilt lock

Colors

Linear CMY color mixing
Linear CTO Color Correction: 2,700K-6,200K
2 Color Wheels:
Color Wheel 1: 5 colors, plus open
Color Wheel 2: 4 colors, plus open

Rotating Gobos

2 Rotating Gobo Wheels:
Rotating Gobo Wheel 1: 6 gobos, plus open
Rotating Gobo Wheel 2: 6 gobos, plus open
Gobo Diameter 1: 34 mm, Image Diameter 1: 26.5 mm
Gobo Diameter 2: 34 mm, Image Diameter 2: 27.5 mm
Gobo Thickness: 1.1 mm

Animation Wheel

A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave effect, and can be changed into other wheels

Prism

2 Combinable Rotating and Indexable Prisms: 1 x 4-facet prism, 1 x 4-facet linear prism, rotatable in both directions

Frost Filter

1 combinable light frost filter and 1 combinable medium frost filter

Framing System

Shutter Blades: 4 blades, each with separate movement and full blackout
Rotation: ±60° of the complete framing system

Other Effects

Outstanding strobe effect with variable speed
Motorized linear Iris
Smooth dimming 0-100% (4 user selectable dimming curves)

Electrical and Connectors

Input Voltage Range: 180-240Vac; 50/60Hz
Power Consumption: 2,265W

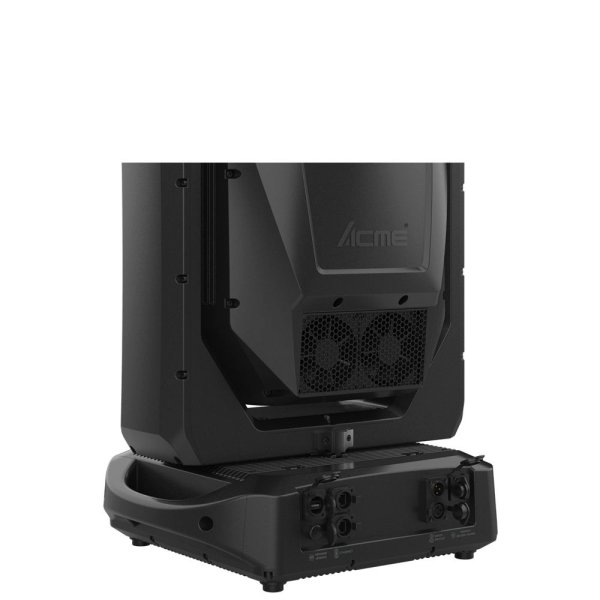

Power In/Out: Waterproof power connector in/out (TRUE1 type)
Data In/Out: 3-pin or 5-pin waterproof XLR, RJ45 connector

Work Environment

Maximum ambient temperature: 40°C
Minimum operating temperature: -10°C
Maximum surface temperature: 70°C
Protection Rating: IP66

Approvals

CE compliant
UKCA compliant
cETLus compliant

Installation

Horizontally or vertically mounting
Universal working position

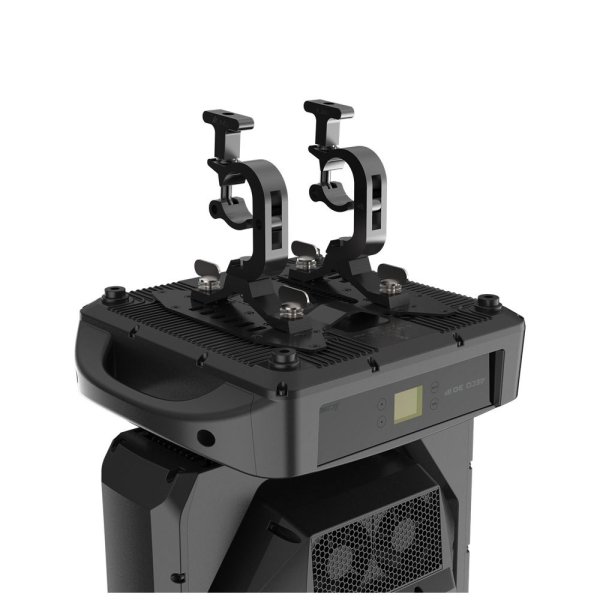

2 omega brackets
Safety cable attachment point

Included Items

Digital User Manual
Power cable (with TRUE1 type connector)
2 omega brackets (3002003003)

Optional Accessories (with item code)

Flight Case:
International Standard: 3205096035 (one-pack loader case)
North American Standard: 3205110041 (one-pack loader case)
Clamp: 2060001632 (C-250B)
Signal Line: 3-pin waterproof signal line (3017013468) or 5-pin waterproof signal line (3017013473)
Safety Cable: 2060001603-A (SW-05)

サイズ

Fixture Dimensions:
Width: 465 mm
Depth: 365 mm
Height: 830 mm
Weight: 52.5 kg

Packing Information

Flight Case Dimensions:
Width: 812 mm
Depth: 610 mm
Height: 910 mm
Weight: (TBD)
Carton Dimensions:
Width: 780 mm
Depth: 575 mm
Height: 805 mm
Weight: 65.0 kg (one-pack loader carton)
